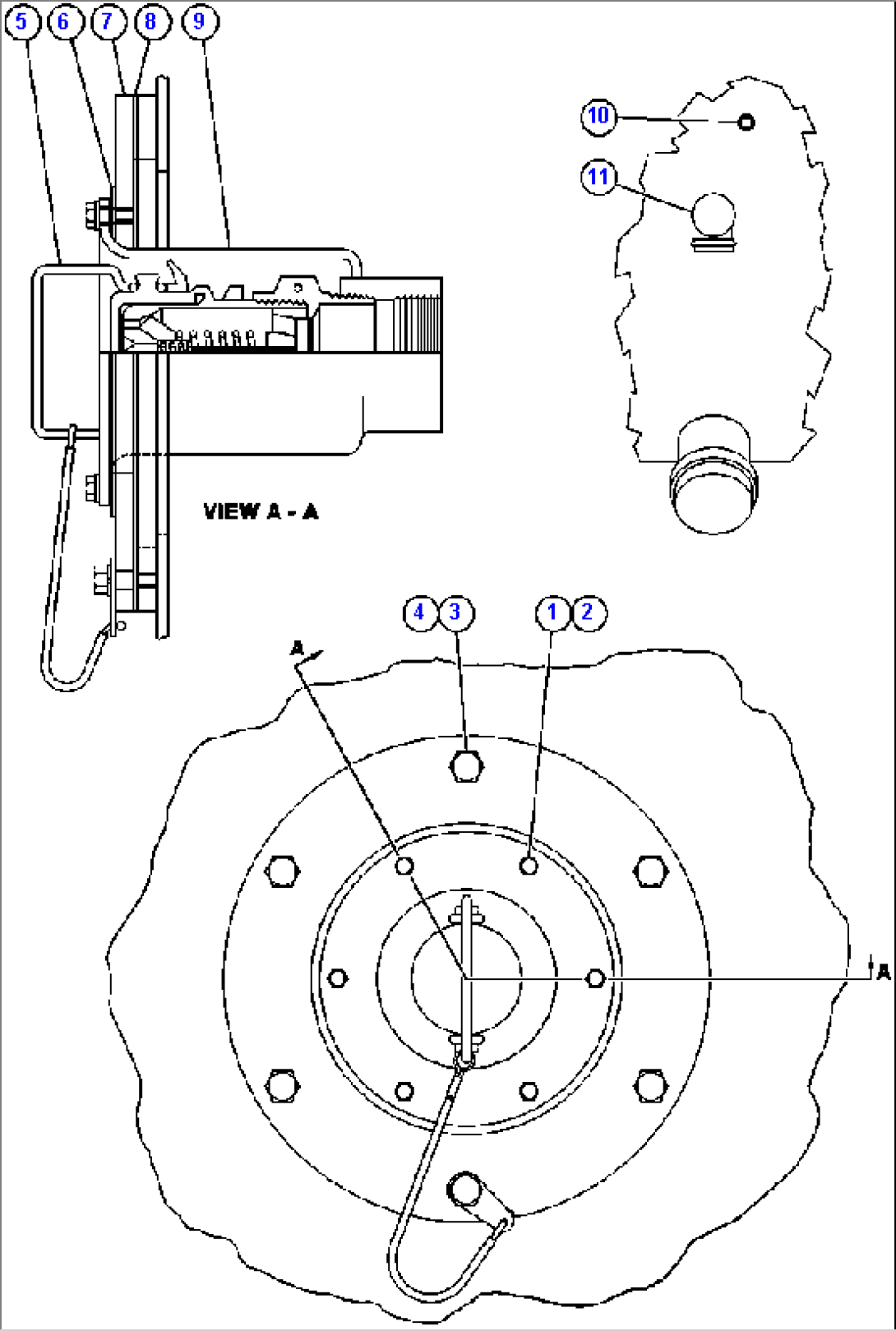

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VH6864 | CAPSCREW - 1/4" - 20NC X 1/2" | ||
| 2 | C5774 | LOCKWASHER - 1/4" | ||
| 3 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 4 | MM0471 | LOCKWASHER - M10 | ||
| 5 | VW6420 | CAP, REFUELING | ||
| 6 | VW4748 | GASKET | ||
| 7 | EC4457 | ADAPTER, PLATE | ||
| 8 | TB6147 | GASKET | ||
| 9 | TA9974 | FLANGE ASSEMBLY | ||
| 10 | C5769 | PLUG, PIPE | ||
| 11 | TA1978 | VENT ASSEMBLY | ||
| 11 | (EC3022 QUICK FUEL IS NOT SOLD AS AN ASSEMBLY. | |||
| 11 | ORDER INDIVIDUAL COMPONENT PARTS.) |
