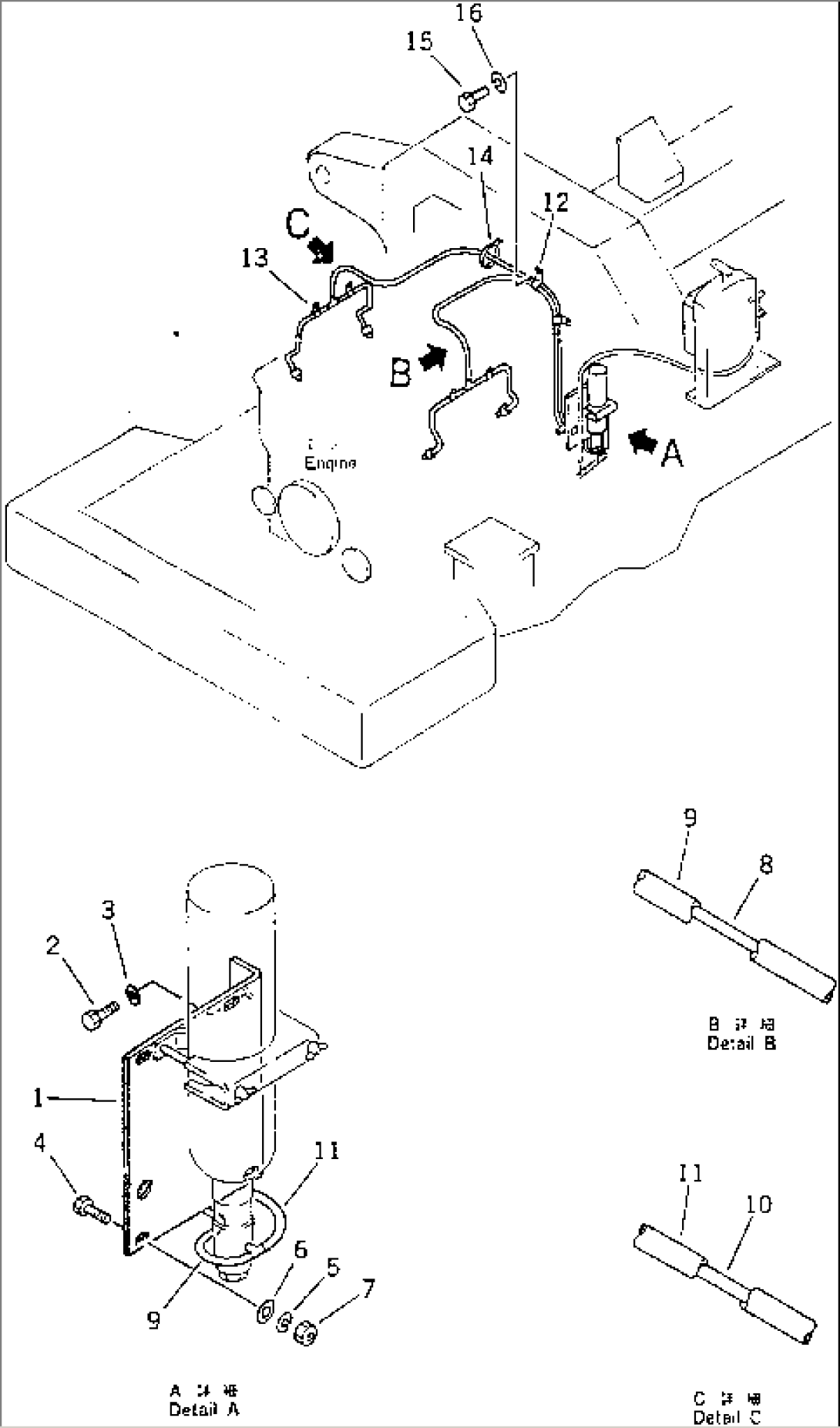

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-01-16110 | BRACKET | 1002- | |
| 2 | 01010-51020 | BOLT | 1002- | |
| 3 | 01602-21030 | WASHER | 1002- | |
| 4 | 01010-50620 | BOLT | 1002- | |
| 5 | 01602-20619 | WASHER | 1002- | |
| 6 | 01640-00610 | WASHER | 1002- | |
| 7 | 01580-10605 | NUT | 1002- | |
| 8 | 6715-81-4450 | TUBE | 1002- | |
| 9 | 07823-00431 | TUBE | 1002- | |
| 10 | 6715-81-4450 | TUBE | 1002- | |
| 11 | 07823-00480 | TUBE | 1002- | |
| 12 | 08036-01214 | CLIP | 1002- | |
| 13 | 08036-10814 | CLIP | 1002- | |
| 14 | 08034-00519 | BAND | 1002- | |
| 15 | 01010-51016 | BOLT | 1002- | |
| 16 | 01602-21030 | WASHER | 1002- |
