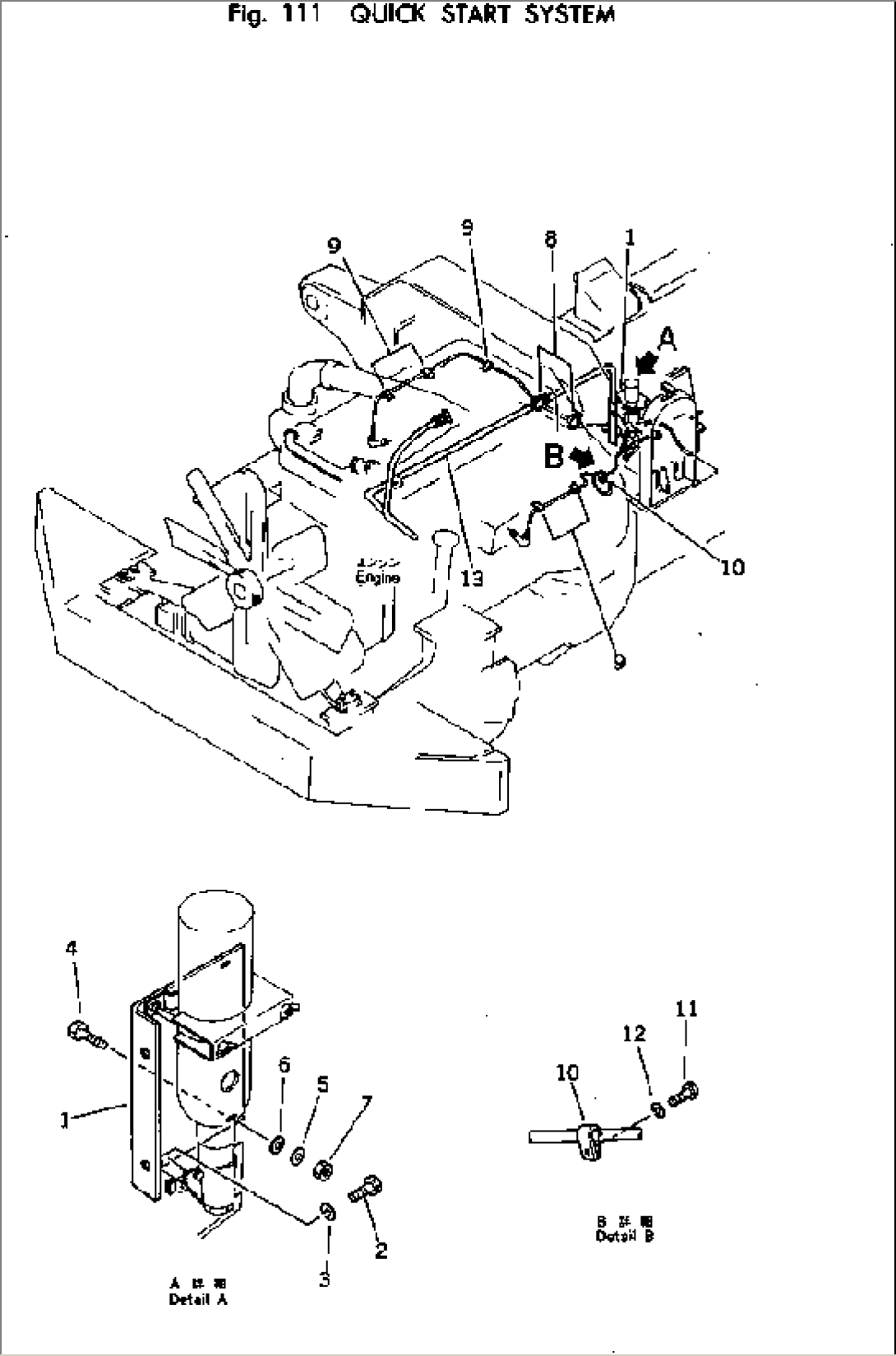

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-01-16110 | BRACKET | 1102- | |
| 2 | 01010-51020 | BOLT | 1102- | |
| 3 | 01602-21030 | WASHER | 1102- | |
| 4 | 01010-50620 | BOLT | 1102- | |
| 5 | 01602-20619 | WASHER | 1102- | |
| 6 | 01640-00610 | WASHER | 1102- | |
| 7 | 01580-10605 | NUT | 1102- | |
| 8 | 08034-00519 | BAND | 1102- | |
| 9 | 08036-10610 | CLIP | 1102- | |
| 10 | 08036-10614 | CLIP | 1102- | |
| 11 | 01010-51020 | BOLT | 1102- | |
| 12 | 01602-21030 | WASHER | 1102- | |
| 13 | 581-95-14210 | CABLE | 1102- |
