| Item | Part No. | Part Name | Qty | Serial No. |

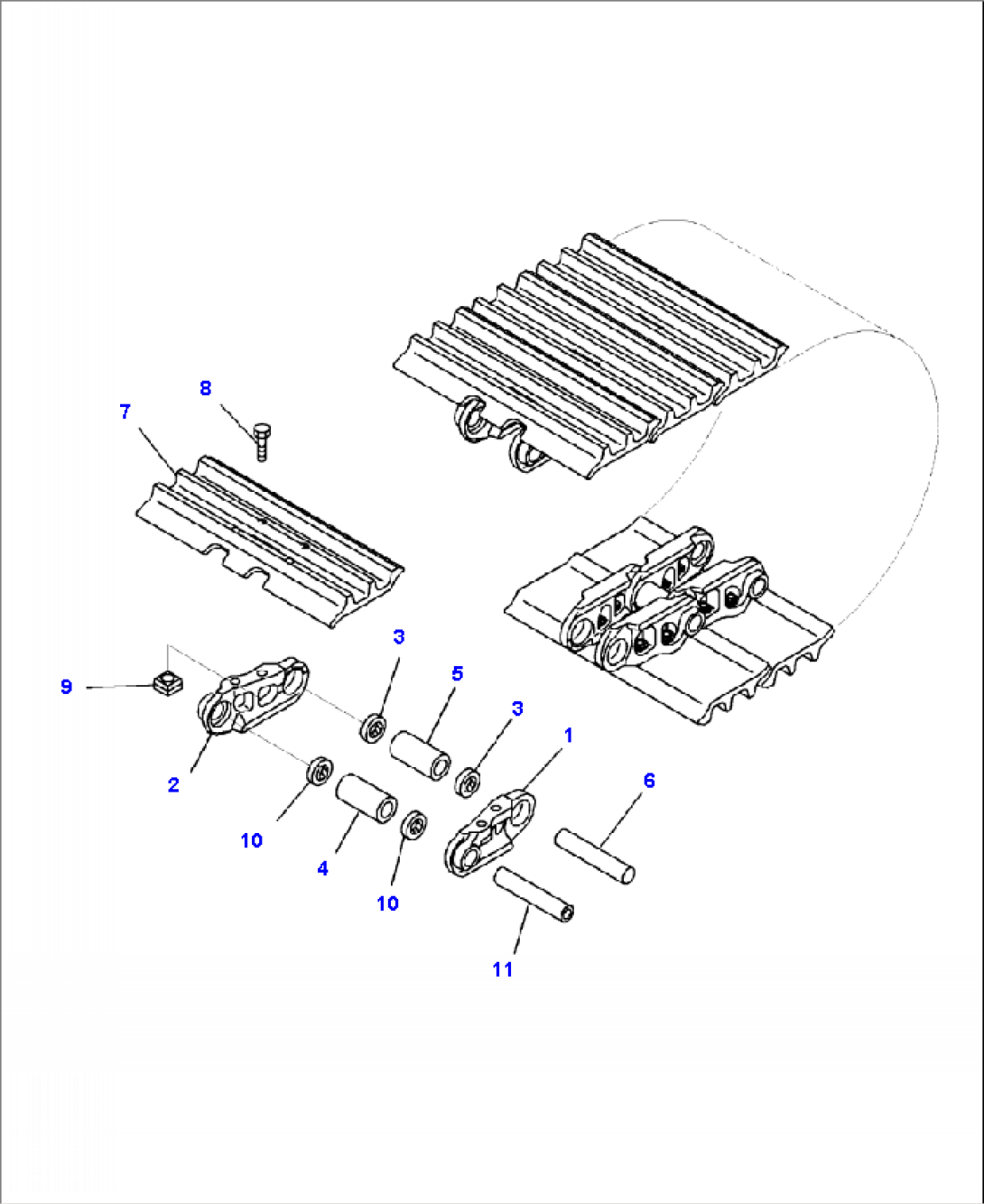

| 206-32-A0380 | TRACK SHOE ASSEMBLY | |||
| 1 | 20Y-32-31120 | LINK, L.H. | ||
| 2 | 20Y-32-31130 | LINK, R.H. | ||
| 3 | 20Y-32-11240 | SEAL | ||
| 4 | 20Y-32-11171 | BUSHING, MASTER | ||
| 5 | 20Y-32-11141 | BUSHING, REGULAR | ||
| 6 | 20Y-32-31150 | PIN | ||
| 7 | 20Y-32-31320 | SHOE | ||
| 8 | 20Y-32-31210 | BOLT, SHOE | ||
| 9 | 134-32-61221 | NUT | ||
| 10 | 20Y-32-11260 | SEAL | ||
| 11 | 20Y-32-31190 | PIN | ||
| N/I | 20Y-32-05070 | SERVICE KIT, SHOE BOLT AND NUT | ||
| F1 - PART AVAILABLE IN SERVICE KIT: |
