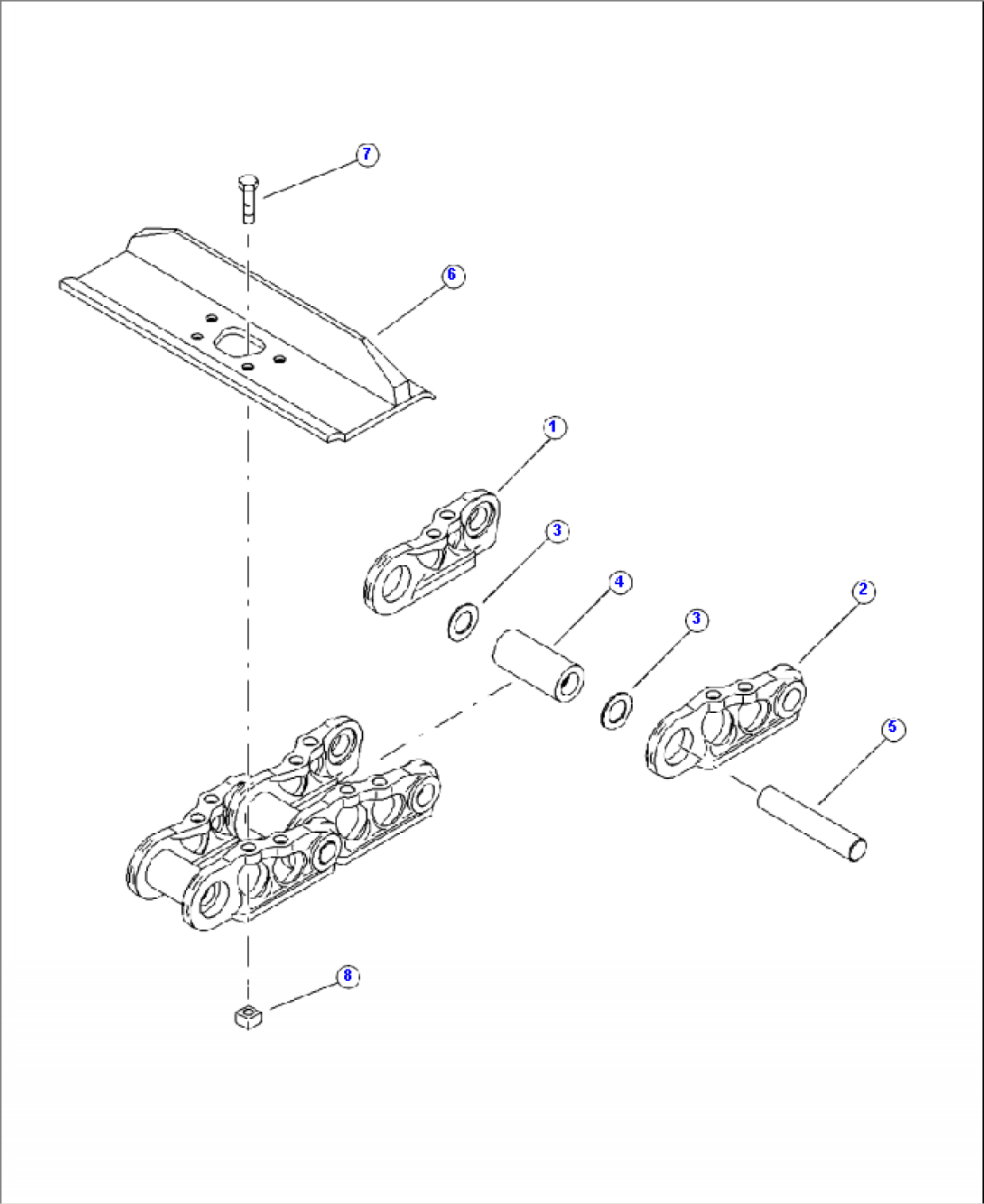

| Item | Part No. | Part Name | Qty | Serial No. |
| 83077KF | TRACK CHAIN ASSEMBLY, 600MM SINGLE GROUSE, SHORT | | |
| | OR | | |
| 83984KF | TRACK CHAIN ASSEMBLY, 700MM SINGLE GROUSE, SHORT | | |
| | OR | | |
| 83081KF | TRACK CHAIN ASSEMBLY, 700MM DOUBLE GROUSE, SHORT | | |
| 1 | 207-32-71130 | LINK, R.H. | | |
| 2 | 207-32-71120 | LINK, L.H. | | |
| 3 | 150-32-11260 | SEAL, MASTER DUST | | |
| | OR | | |
| 3 | 144-32-11240 | SEAL, DUST | | |
| 4 | 207-32-51170 | BUSHING, MASTER | | |
| | OR | | |
| 4 | 207-32-51140 | BUSHING | | |
| 5 | 82350 | PIN, MASTER | | |
| | OR | | |
| 5 | 82349 | PIN | | |
| 6 | 207-32-71610 | SHOE, 600MM SINGLE TRACK | | |
| | OR | | |
| 6 | 83968 | SHOE, 700MM SINGLE TRACK | | |
| | OR | | |
| 6 | 82280KF | SHOE, 700MM DOUBLE TRACK | | |
| 7 | 82352 | BOLT | | |
| 8 | 82323 | NUT | | |
| 4A1-32-05010 | KIT, TRACK SHOE BOLTS | | |
| 207-32-71620 | BOLT, TRACK SHOE | | |
| 154-32-71220 | NUT, TRACK SHOE | | |
| | | | |
| | F1 - THIS TRACK SHOE BOLT SERVICE KIT IS FOR SINGLE GROUSER TRACK SHOES ONLY. | | |
