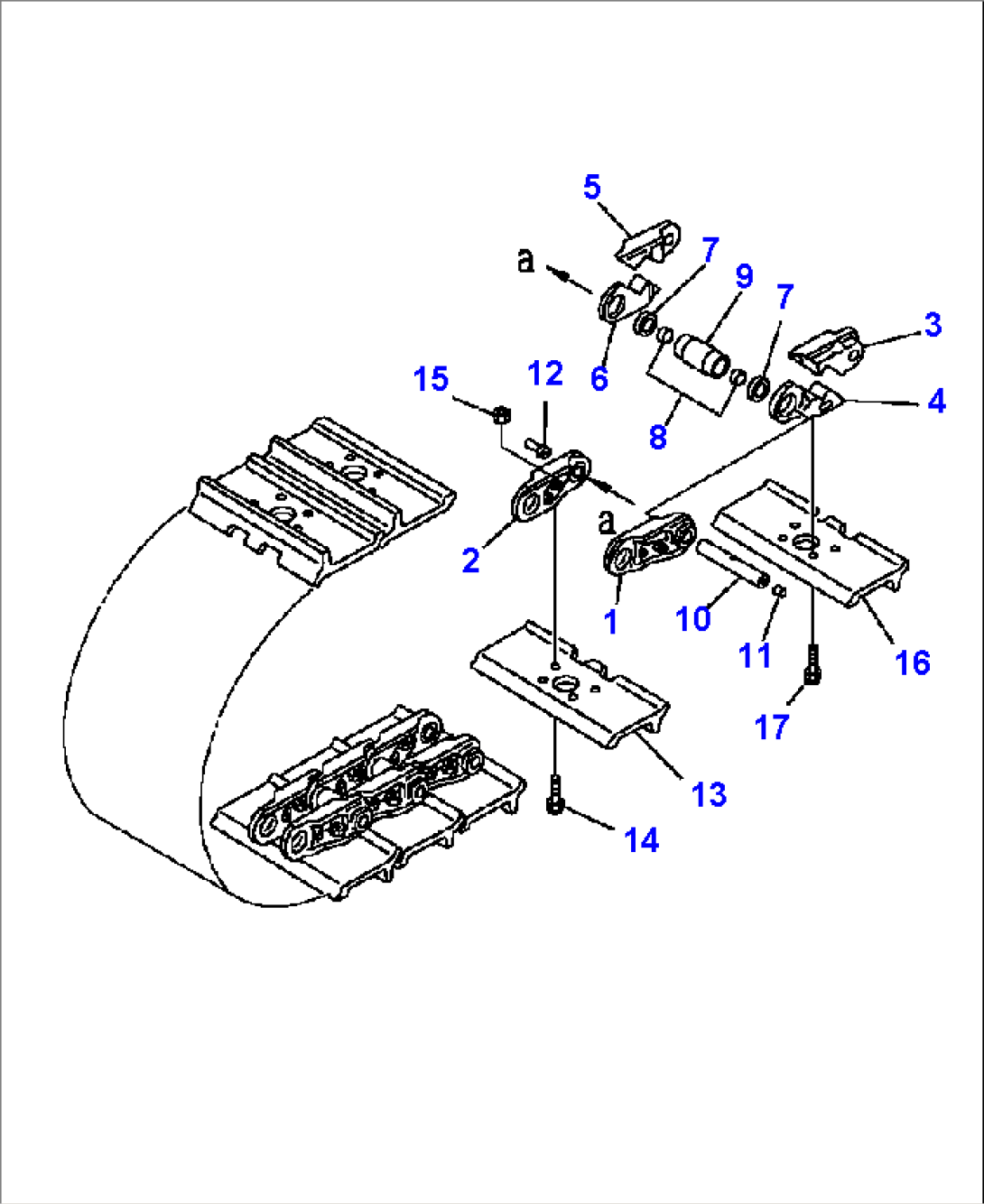

| Item | Part No. | Part Name | Qty | Serial No. |
| 12Y-32-01060 | TRACK SHOE ASSEMBLY | B10001- | ||
| 1 | 12Y-32-11120 | LINK, L.H. | B10001- | |
| 2 | 12Y-32-11130 | LINK, R.H. | B10001- | |
| 12Y-32-08011 | MASTER LINK K. L.H., L.H. | B10001- | ||
| 3 | (NSS) | LINK | B10001- | |
| 4 | (NSS) | LINK | B10001- | |
| 12Y-32-08021 | MASTER LINK K. R.H., R.H. | B10001- | ||
| 5 | (NSS) | LINK | B10001- | |
| 6 | (NSS) | LINK | B10001- | |
| 7 | 134-32-63200 | SEAL | B10001- | |
| 8 | 12Y-32-11190 | SPACER | B10001- | |
| 9 | 12Y-32-11140 | BUSHING | B10001- | |
| 10 | 12Y-32-11150 | PIN | B10001- | |
| 11 | 07059-11830 | PLUG, SMALL | B10001- | |
| 12 | 07059-20721 | PLUG, LARGE | B10001- | |
| 13 | 12Y-32-11370 | SHOE | B10001- | |
| 14 | 205-32-51121 | BOLT, SHOE (R2300-K1) | B10001- | |
| 15 | 203-32-61220 | NUT (R2300-K1) | B10001- | |
| 16 | 12Y-32-11370 | SHOE | B10001- | |
| 17 | 12Y-32-11310 | BOLT | B10001- |
