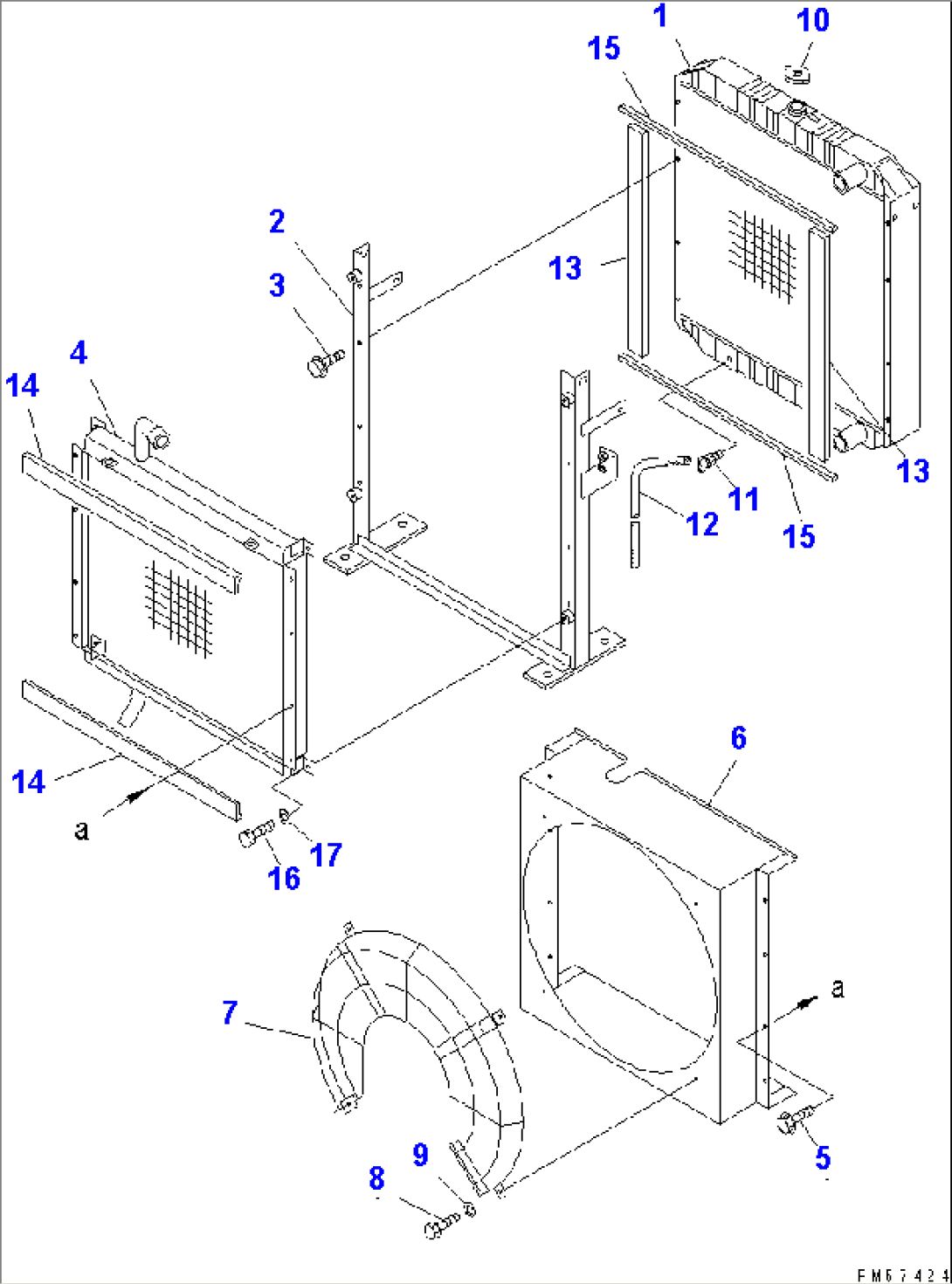

| Item | Part No. | Part Name | Qty | Serial No. |
| 273-03-61200 | RADIATOR ASS'Y,(WITH OIL COOLER) | 11001- | ||
| 1 | 273-03-61110 | CORE,RADIATOR | 11001- | |
| 2 | 273-03-61120 | FRAME | 11001- | |
| 3 | 01435-20816 | BOLT | 11001- | |
| 4 | 273-03-61131 | CORE,OIL COOLER | 11001- | |
| 5 | 01435-20816 | BOLT | 11001- | |
| 6 | 273-03-61140 | SHROUD | 11001- | |
| 7 | 23B-03-14230 | NET,WIRE | 11001- | |
| 8 | 01010-80820 | BOLT | 11001- | |
| 9 | 01643-30823 | WASHER | 11001- | |
| 10 | 273-03-61150 | CAP,PRESSURE | 11001- | |
| 11 | 273-03-61160 | VALVE,DRAIN | 11001- | |
| 12 | 273-03-61170 | HOSE | 11001- | |
| 13 | 273-03-61180 | PACKING | 11001- | |
| 14 | 273-03-61190 | PACKING | 11001- | |
| 15 | 273-03-61210 | PACKING | 11001- | |
| 16 | 01010-81225 | BOLT | 11001- | |
| 17 | 01643-31232 | WASHER | 11001- |
