| Item | Part No. | Part Name | Qty | Serial No. |
| (266-20-49100) | ENGINE ASS'Y | 4501- | ||

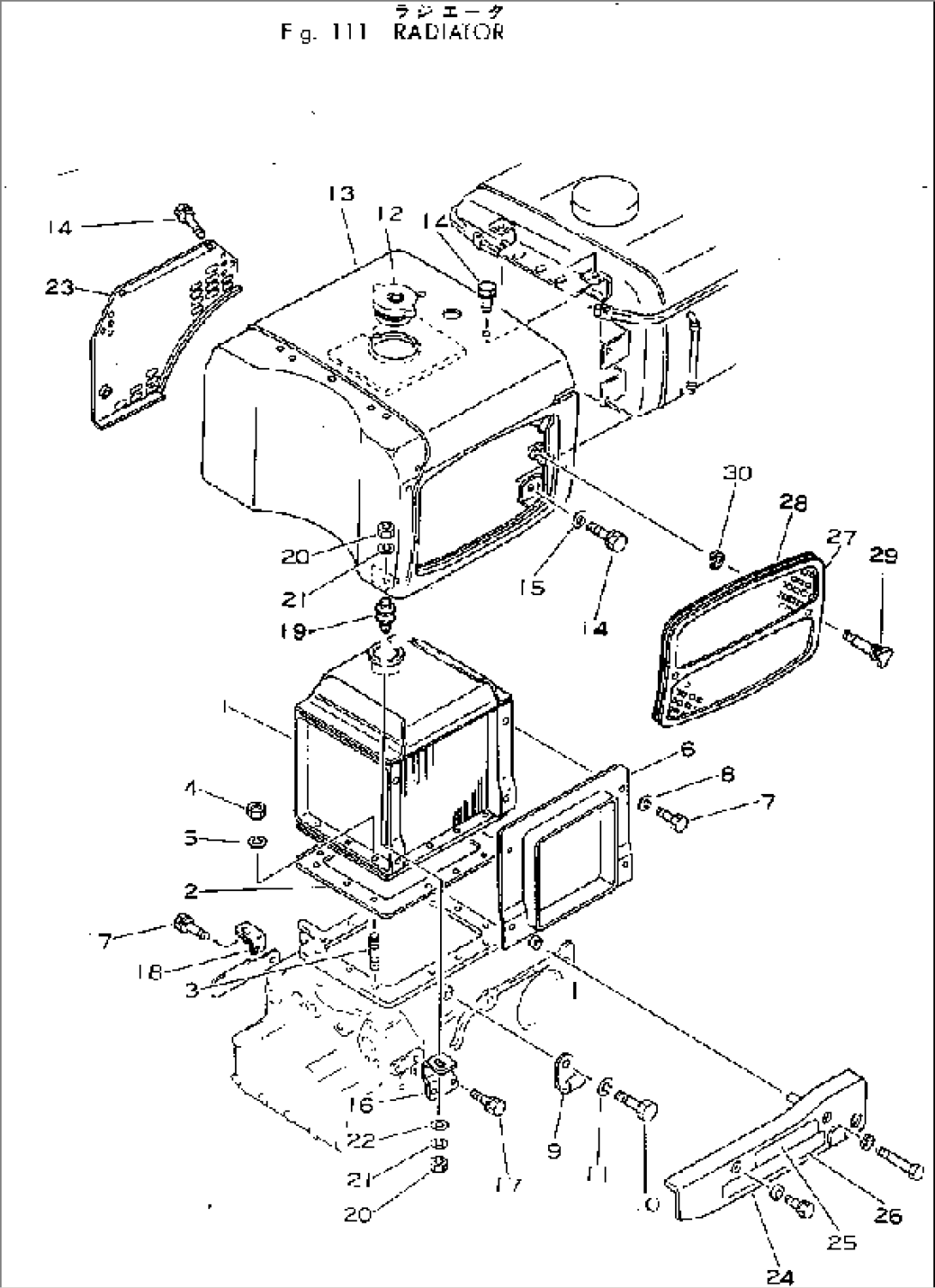

| 1 | KT14611-7211-3 | RADIATOR | 4501- | |
| 2 | KT14611-7212-1 | PACKING | 4501- | |
| 3 | KT01511-00616 | STUD | 4501- | |
| 4 | KT02014-00060 | NUT | 4501- | |
| 5 | KT04512-00060 | WASHER | 4501- | |
| 6 | KT15000-3462-2 | SHROUD | 4501- | |
| 7 | KT01053-50620 | BOLT | 4501- | |
| 8 | KT04512-50060 | WASHER | 4501- | |
| 9 | KT10244-4237-1 | CLIP | 4501- | |
| 10 | KT01050-50610 | BOLT | 4501- | |
| 11 | KT04512-50060 | WASHER | 4501- | |
| 12 | KT14681-7203-1 | CAP | 4501- | |
| 13 | KT14617-7221-1 | COVER | 4501- | |
| 14 | KT01202-50612 | BOLT | 4501- | |
| 15 | KT04013-50060 | WASHER | 4501- | |
| 16 | KT14627-7235-1 | STAY | 4501- | |
| 17 | KT01202-50616 | BOLT | 4501- | |
| 18 | KT14627-7236-1 | STAY | 4501- | |
| 19 | KT14617-4141-1 | ABSORBER | 4501- | |
| 20 | KT02114-50080 | NUT | 4501- | |
| 21 | KT04512-50080 | WASHER | 4501- | |
| 22 | KT04013-50080 | WASHER | 4501- | |
| 23 | KT14617-7224-1 | GRILLE | 4501- | |
| KT14628-0480-1 | COVER ASS'Y | 4501- | ||
| 24 | KT14621-0475-3 | COVER | 4501- | |
| 25 | KT14628-8711-1 | LABEL | 4501- | |
| 26 | KT14611-8716-1 | LABEL | 4501- | |
| KT14611-7220-1 | NET ASS'Y | 4501- | ||
| 27 | KT14611-7225-3 | NET | 4501- | |
| 28 | KT14611-7231-1 | CUSHION | 4501- | |
| 29 | KT10288-7557-2 | KNOB | 4501- | |
| 30 | KT04613-50050 | CLIP | 4501- |
