| Item | Part No. | Part Name | Qty | Serial No. |
| (266-20-59100) | ENGINE ASS'Y | 1001- | ||

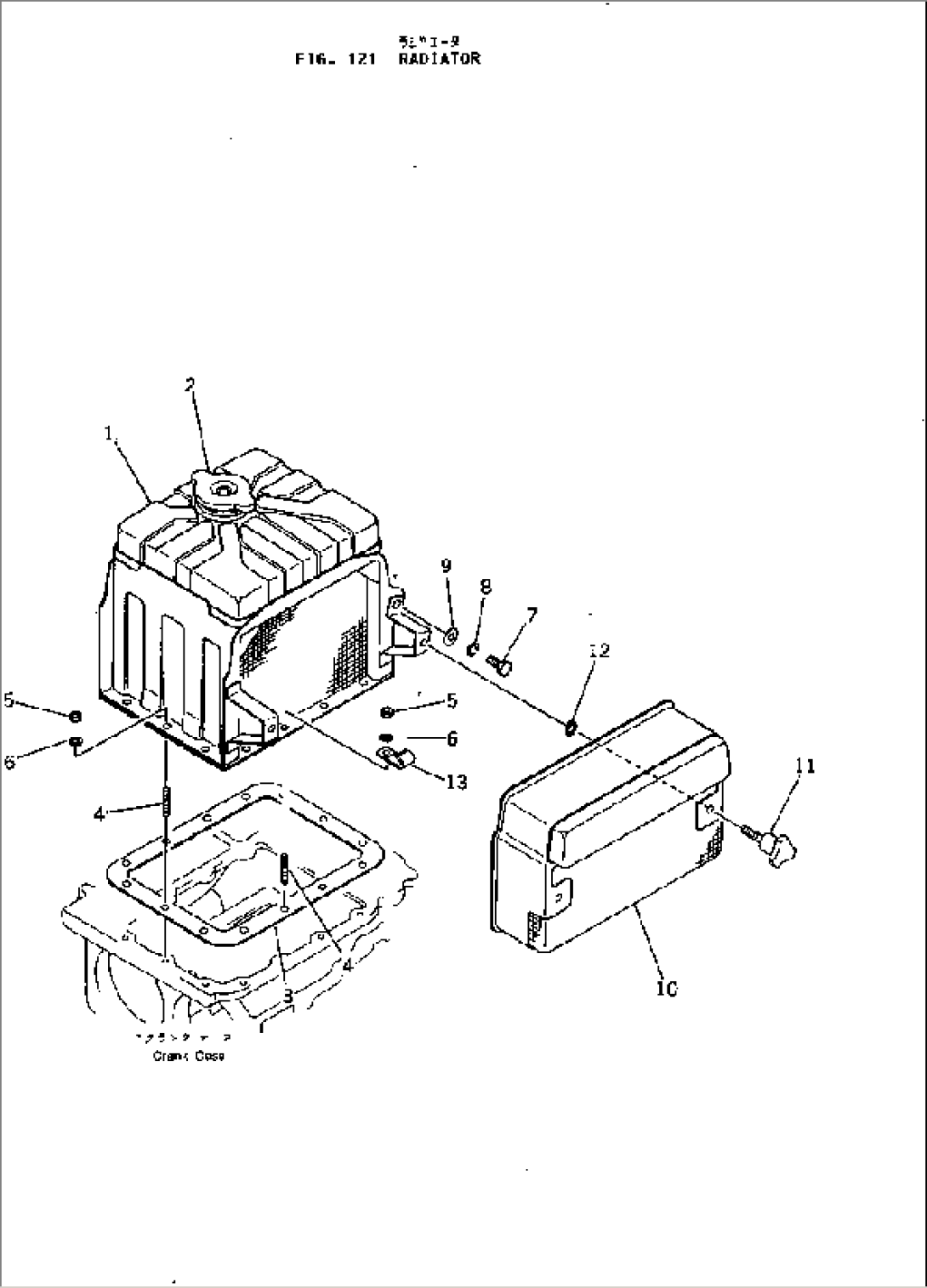

| 1 | KT14952-7206-1 | RADIATOR ASS'Y | 1001- | |
| 2 | KT14952-7203-1 | CAP | 1001- | |
| 3 | KT14952-7212-1 | GASKET | 1001- | |
| 4 | KT01513-50616 | STUD | 1001- | |
| 5 | KT02014-50060 | NUT | 1001- | |
| 6 | KT04512-50060 | WASHER | 1001- | |
| 7 | KT01153-50818 | BOLT | 1001- | |
| 8 | KT04512-50080 | WASHER | 1001- | |
| 9 | KT04012-50080 | WASHER | 1001- | |
| 10 | KT14952-7225-2 | NET | 1001- | |
| 11 | KT14911-7557-1 | BOLT | 1001- | |
| 12 | KT04613-00050 | RING | 1001- | |
| 13 | KT14911-6754-1 | CLAMP | 1001- |
