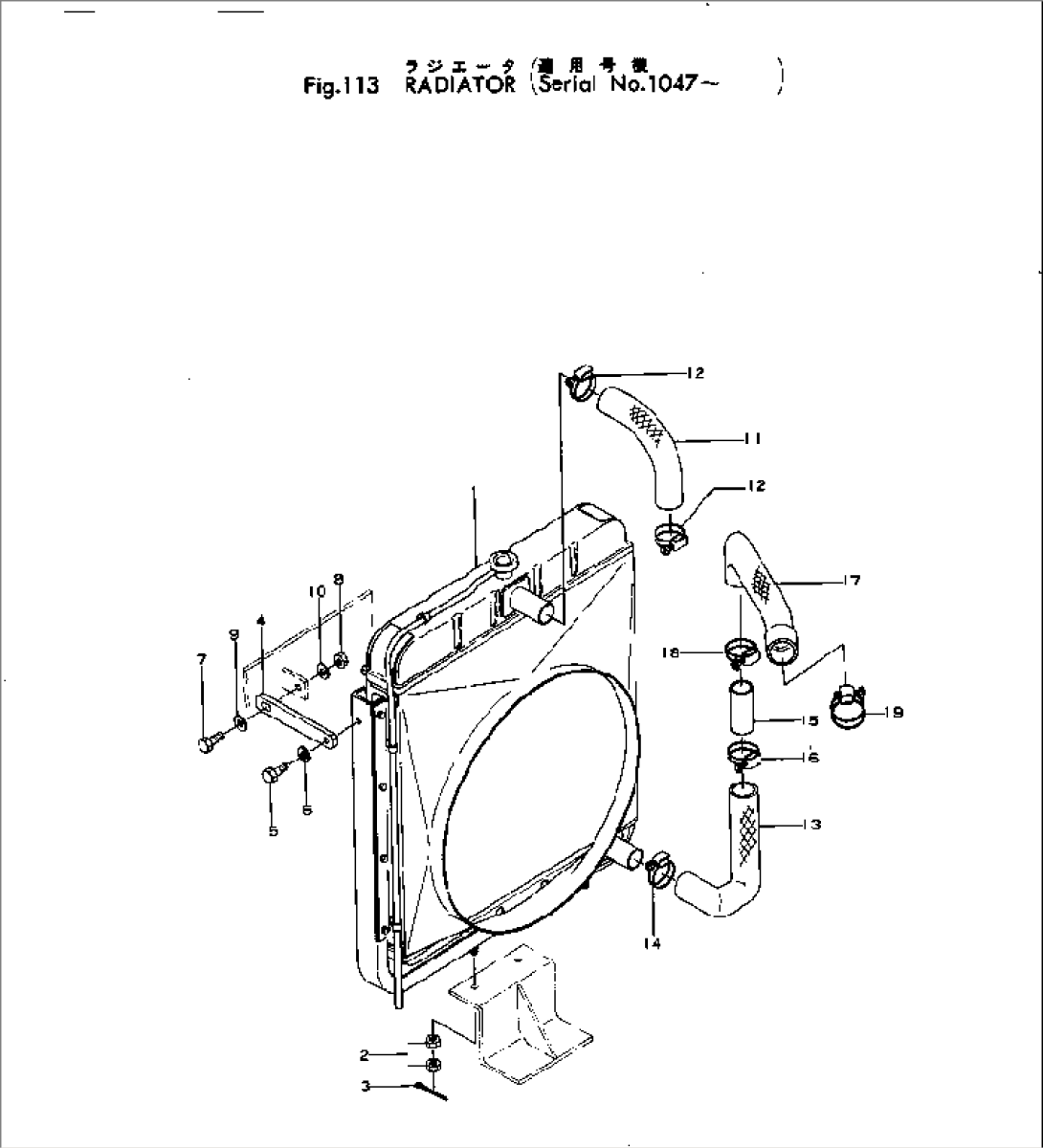

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 267-20-26110 | RADIATOR ASS'Y | 1047- | |
| 267-25-13110 | CAP | 1047- | ||
| 2 | 01501-00805 | NUT | 1047- | |
| 3 | 04050-02018 | PIN | 1047- | |
| 4 | 267-20-26190 | ROD | 1047- | |
| 5 | 01000-00825 | BOLT | 1047- | |
| 6 | 01601-00820 | WASHER | 1047- | |
| 7 | 01000-00825 | BOLT | 1047- | |
| 8 | 01500-00807 | NUT | 1047- | |
| 9 | 267-20-16190 | WASHER | 1047- | |
| 10 | 01602-00825 | WASHER | 1047- | |
| 11 | 267-20-26120 | HOSE | 1047- | |
| 12 | 267-20-26160 | CLAMP | 1047- | |
| 13 | 267-20-26140 | HOSE | 1047- | |
| 14 | 267-20-26160 | CLAMP | 1047- | |
| 15 | 267-20-26180 | TUBE | 1047- | |
| 16 | 267-20-26160 | CLAMP | 1047- | |
| 17 | 267-20-26130 | HOSE | 1047- | |
| 18 | 267-20-26160 | CLAMP | 1047- | |
| 19 | 267-20-26160 | CLAMP | 1047- |
