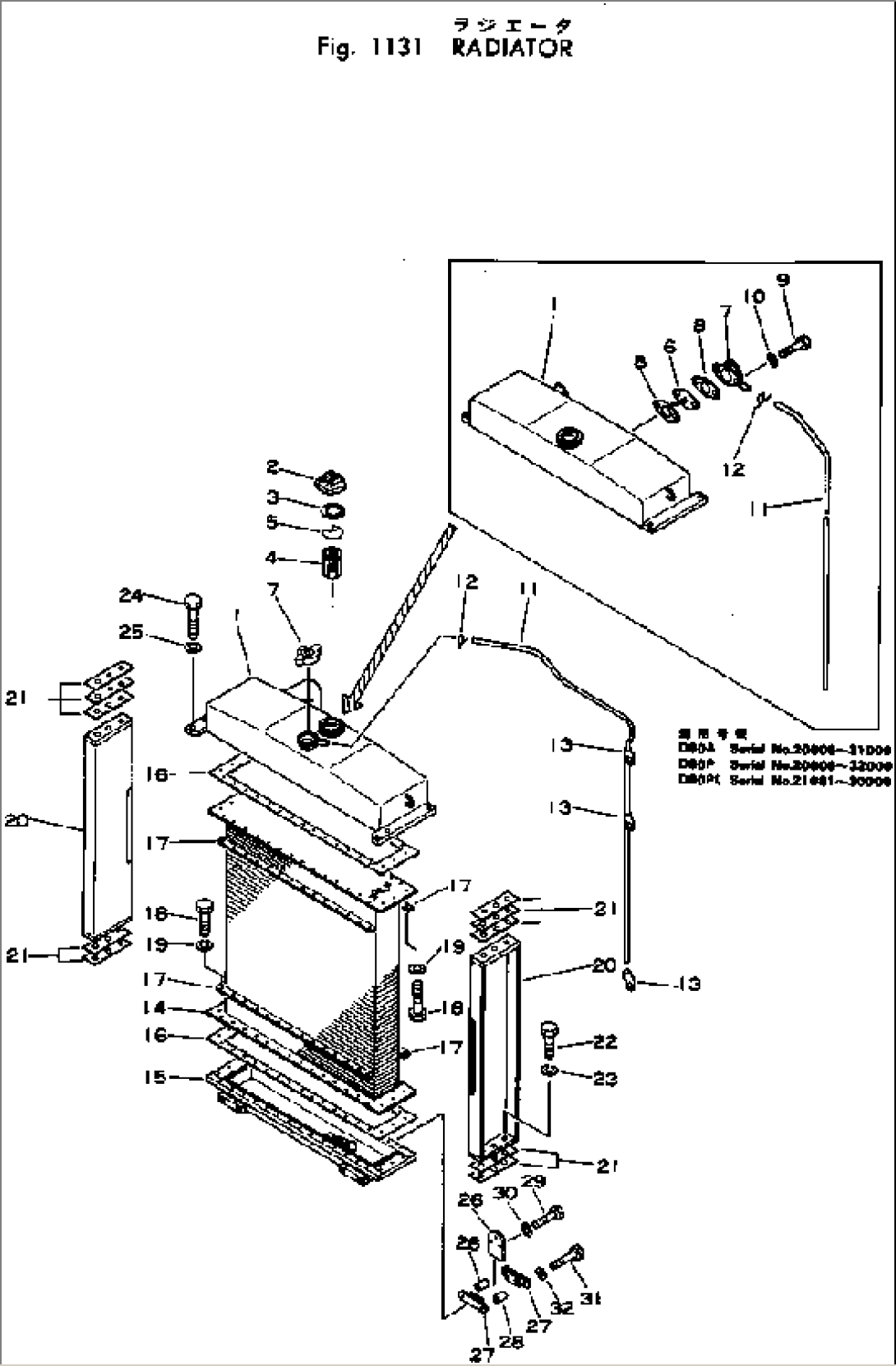

| Item | Part No. | Part Name | Qty | Serial No. |
| 144-03-00017 | RADIATOR ASS'Y | .- | ||
| \0\144-03-00016 | RADIATOR ASS'Y | 32001-. | ||
| 144-03-00015 | RADIATOR ASS'Y | 29174-32000 | ||
| 144-03-00014 | RADIATOR ASS'Y | 28523-29173 | ||
| 144-03-00013 | RADIATOR ASS'Y | 22388-28522 | ||
| 144-03-00012 | RADIATOR ASS'Y | 20054-22387 | ||
| 144-03-00011 | RADIATOR ASS'Y | 20024-20053 | ||
| 144-03-00010 | RADIATOR ASS'Y | 20006-20021 | ||
| 1 | 144-03-11150 | TANK | .- | |
| \0\144-03-11117 | TANK | 32001-. | ||
| 144-03-11116 | TANK | 29174-32000 | ||
| 144-03-11115 | TANK | 28523-29173 | ||
| 144-03-11114 | TANK | 23263-28522 | ||
| \0\144-03-11113 | TANK | 20054-23264 | ||
| 144-03-11112 | TANK | 20024-20053 | ||
| 144-03-11111 | TANK | 20006-20021 | ||
| 2 | 07053-10000 | CAP | 28523- | |
| 170-03-11140 | CAP | 20006-28522 | ||
| 07053-00002 | GASKET | 28523- | ||
| 3 | 6675-61-7170 | GASKET | 20006-28522 | |
| 4 | 07056-00048 | STRAINER | 28523- | |
| 6675-61-7140 | STRAINER | 20006-28522 | ||
| 5 | 07057-03271 | RING | 28523- | |
| 6675-61-7150 | RING | 20006-28522 | ||
| 6 | 145-03-31251 | PIPE | 22388-31000 | |
| 145-03-31250 | PIPE | 20006-22387 | ||
| 7 | 125-03-21210 | CAP | 32001- | |
| 175-03-21380 | VALVE | 20006-32000 | ||
| 8 | 6675-61-7190 | GASKET | 20006-32000 | |
| 9 | 01010-31030 | BOLT | 20006-32000 | |
| 10 | 01602-01030 | WASHER | 20006-32000 | |
| 11 | 6675-61-7290 | PIPE | 20006- | |
| 12 | 04059-01010 | WIRE | 20006- | |
| 13 | 6675-61-7380 | CLIP | 20006- | |
| 14 | 144-03-11182 | CORE | .- | |
| \0\144-03-11181 | CORE | 20006-. | ||
| 15 | 144-03-11122 | TANK | 20488- | |
| \3\144-03-11121 | TANK | 20054-20487 | ||
| (144-03-11122{144-54-11422¤} | ||||
| 01050-30814(3)) | ||||
| 144-03-11120 | TANK | 20024-20053 | ||
| 145-03-31271 | TANK | 20006-20021 | ||
| 16 | 145-03-31261 | GASKET | 20006- | |
| 17 | 145-03-31191 | PLATE | 20006- | |
| 18 | 01010-31025 | BOLT | 20006- | |
| 19 | 01602-01030 | WASHER | 20006- | |
| 20 | 144-999-1560 | SUPPORT | 20054- | |
| 144-03-11280 | SUPPORT | 20006-20053 | ||
| 21 | 145-03-31291 | SHIM¤ 0.6MM | 20006- | |
| 22 | 01010-31240 | BOLT | 20006- | |
| 23 | 01602-01236 | WASHER | 20006- | |
| 24 | 01010-31240 | BOLT | 20006- | |
| 25 | 01602-01236 | WASHER | 20006- | |
| 26 | 6675-61-7750 | PLATE | 20006- | |
| 27 | 6675-61-7770 | DAMPER | 20006- | |
| 28 | 6675-61-7780 | SPACER | 20006- | |
| 29 | 01010-31025 | BOLT | 20006- | |
| 30 | 01602-01030 | WASHER | 20006- | |
| 31 | 01010-31260 | BOLT | 20006- | |
| 32 | 01602-01236 | WASHER | 20006- |
