| Item | Part No. | Part Name | Qty | Serial No. |

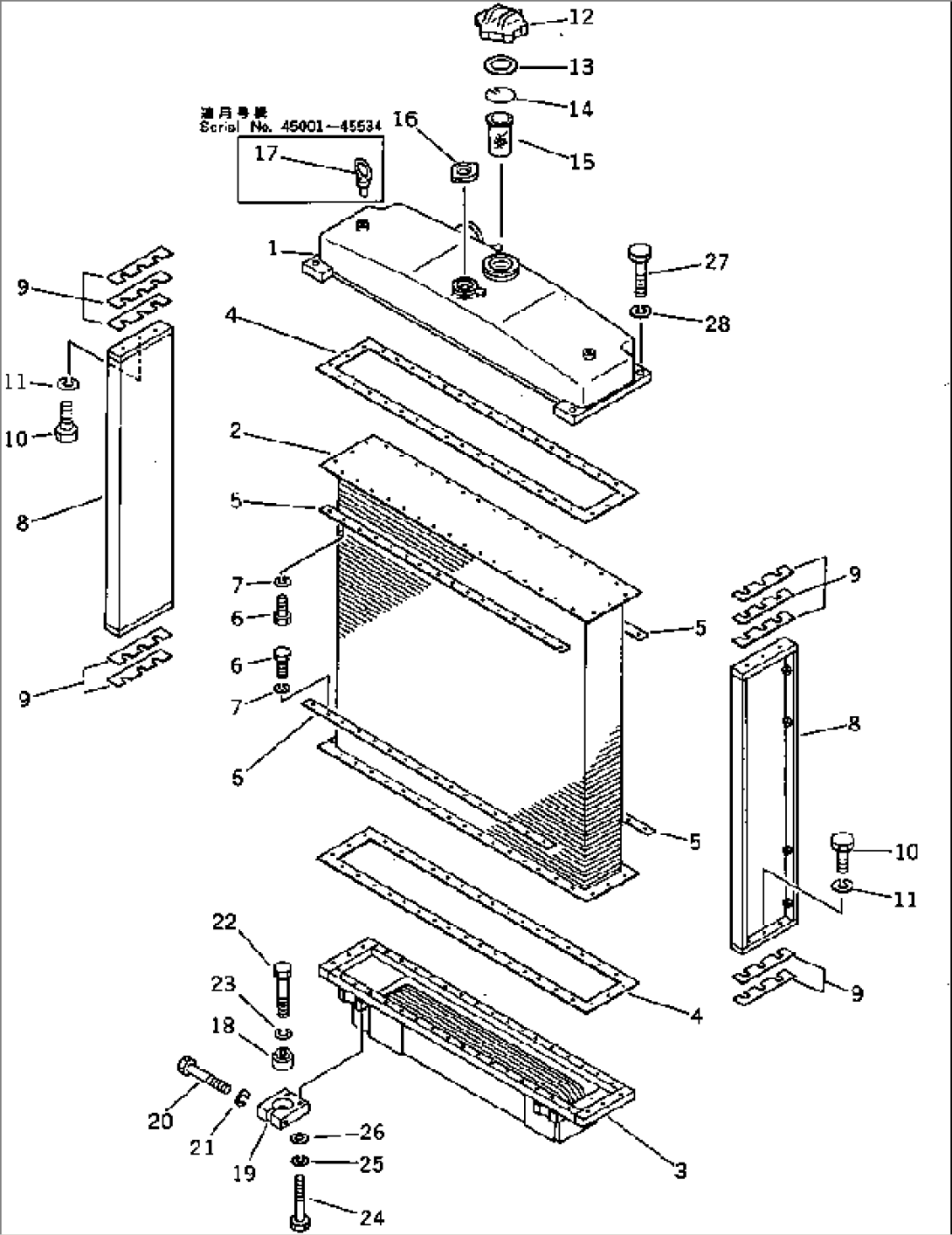

| 144-03-00361 | RADIATOR ASS'Y | 45535- | ||
| 144-03-00360 | RADIATOR ASS'Y | 45001-45534 | ||
| 1 | 14G-03-21110 | TANK,UPPER | 45001- | |
| 2 | 144-03-15120 | CORE | 45001- | |
| 3 | 144-03-51110 | TANK,LOWER¤ WITH OIL COOLER | 45001- | |
| 4 | 144-03-15160 | PACKING | 45001- | |
| 5 | 144-03-15150 | PLATE | 45001- | |
| 6 | 01010-51025 | BOLT | 45001- | |
| 7 | 01602-21030 | WASHER,SPRING | 45001- | |
| 8 | 144-03-15140 | SUPPORT | 45001- | |
| 9 | 144-03-15170 | SHIM¤ 0.6MM | 45001- | |
| 10 | 01010-51235 | BOLT | 45001- | |
| 11 | 01602-21236 | WASHER,SPRING | 45001- | |
| 12 | 07053-10000 | CAP | 45001- | |
| 13 | 07053-00002 | GASKET | 45001- | |
| 14 | 07057-03271 | RING | 45001- | |
| 15 | 07056-00048 | STRAINER | 45001- | |
| 16 | 125-03-21210 | CAP | 45001- | |
| 17 | 04530-11018 | BOLT,EYE | 45001-45534 | |
| 18 | 135-03-12110 | DAMPER | 45001- | |
| 19 | 130-03-61410 | BRACKET | 45001- | |
| 20 | 01010-51260 | BOLT | 45001- | |
| 21 | 01602-21236 | WASHER,SPRING | 45001- | |
| 22 | 01010-51460 | BOLT | 45001- | |
| 23 | 01602-21442 | WASHER,SPRING | 45001- | |
| 24 | 01010-51260 | BOLT | 45001- | |
| 25 | 01602-21236 | WASHER,SPRING | 45001- | |
| 26 | 01643-31232 | WASHER | 45001- | |
| 27 | 01010-51240 | BOLT | 45001- | |
| 28 | 01602-21236 | WASHER,SPRING | 45001- |
