| Item | Part No. | Part Name | Qty | Serial No. |

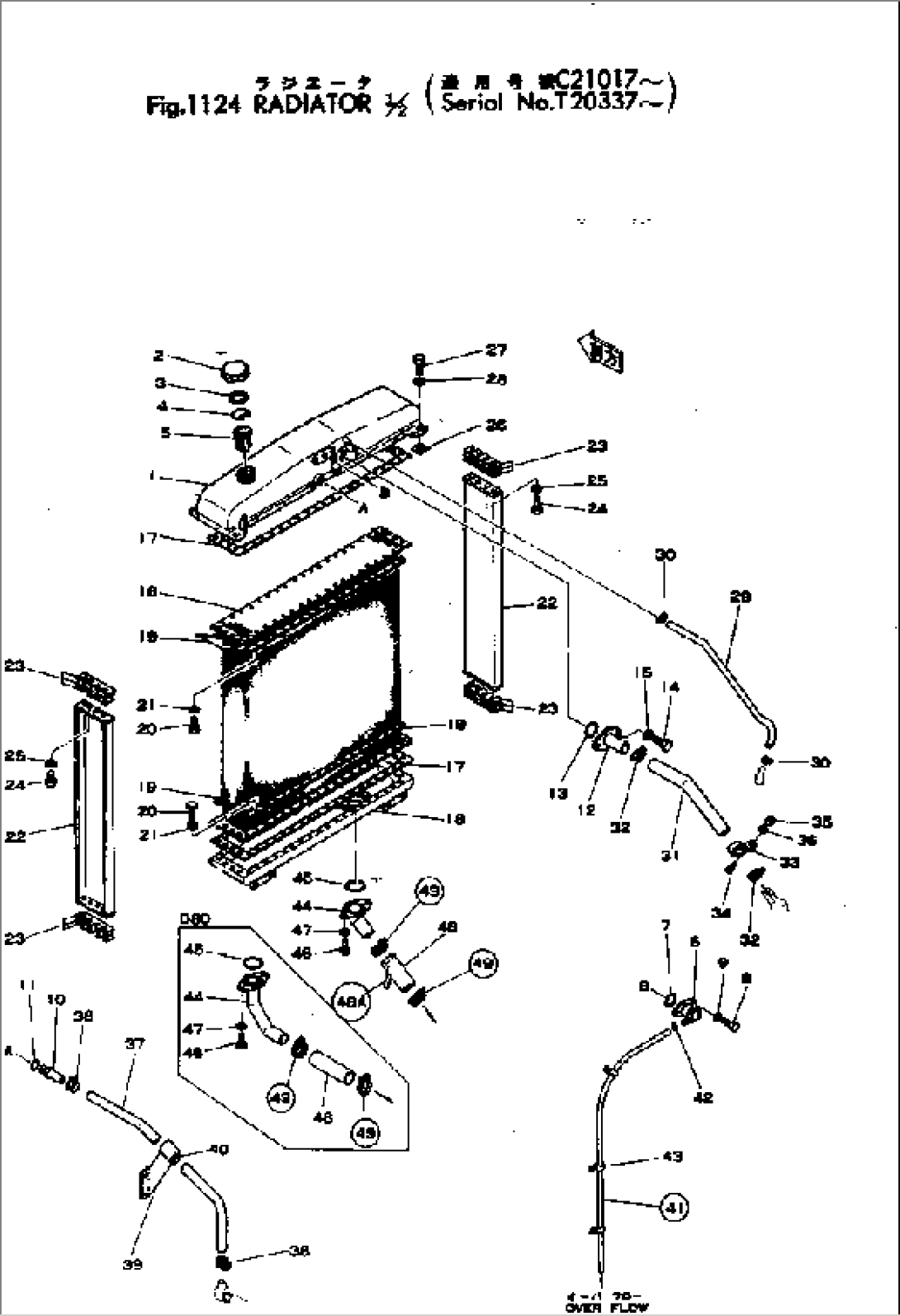

| 154-03-00110 | RADIATOR ASS'Y | 1001- | ||
| 154-03-00125 | UPPER TANK ASS'Y | 1001- | ||
| 1 | 154-03-11113 | TANK | 1001- | |
| 2 | 07053-00000 | CAP | 1001- | |
| 3 | 175-03-21460 | GASKET | 1001- | |
| 4 | 6675-61-7150 | RING | 1001- | |
| 5 | 6675-61-7140 | STRAINER | 1001- | |
| 6 | 154-03-11681 | VALVE | 1001- | |
| 7 | 07000-03045 | O-RING | 1001- | |
| 8 | 01010-31022 | BOLT | 1001- | |
| 9 | 01602-01030 | WASHER | 1001- | |
| 10 | 154-03-11251 | NIPPLE | 1001- | |
| 11 | 07000-03022 | O-RING | 1001- | |
| 12 | 154-03-11562 | FLANGE | 1001- | |
| 13 | 07000-03070 | O-RING | 1001- | |
| 14 | 01010-31225 | BOLT | 1001- | |
| 15 | 01602-01236 | WASHER | 1001- | |
| 16 | 154-03-11136 | CORE | 1001- | |
| 17 | 154-03-11141 | GASKET | 1001- | |
| 18 | 154-03-21120 | TANK,LOWER | 1001- | |
| 19 | 154-03-11150 | PLATE | 1001- | |
| 20 | 01010-31025 | BOLT | 1001- | |
| 21 | 01602-01030 | WASHER | 1001- | |
| 22 | 154-03-11161 | SUPPORT | 1001- | |
| 23 | 154-03-11211 | SHIM¤ 0.6MM | 1001- | |
| 24 | 01010-31240 | BOLT | 1001- | |
| 25 | 01602-01236 | WASHER | 1001- | |
| 26 | 154-03-11610 | SHIM¤ 0.6MM | 1001- | |
| 27 | 01010-31650 | BOLT | 1001- | |
| 28 | 01602-01648 | WASHER | 1001- | |
| 29 | 154-03-12440 | TUBE | 1001- | |
| 30 | 154-03-11661 | CLAMP | 1001- | |
| 31 | 154-03-11571 | HOSE | 1001- | |
| 32 | 07280-06429 | CLAMP | 1001- | |
| 33 | 154-03-11670 | CLAMP | 1001- | |
| 34 | 01010-31220 | BOLT | 1001- | |
| 35 | 01580-01210 | NUT | 1001- | |
| 36 | 01602-01236 | WASHER | 1001- | |
| 37 | 154-03-11530 | HOSE | 1001- | |
| 38 | 07280-03626 | CLAMP | 1001- | |
| 39 | 154-03-11540 | CLAMP | 1001- | |
| 40 | 154-03-11550 | FELT | 1001- | |
| 41 | 154-03-11510 | TUBE | 1001- | |
| 42 | 04059-01010 | WIRE | 1001- | |
| 43 | 08036-11214 | CLIP | 1001- | |
| 44 | 150-03-31590 | TUBE | 1001- | |
| 45 | 07000-03070 | O-RING | 1001- | |
| 46 | 01010-31230 | BOLT | 1001- | |
| 47 | 01602-01236 | WASHER | 1001- | |
| 48 | 154-03-11591 | HOSE | 1001- | |
| 49 | 07280-06429 | CLAMP | 1001- |
