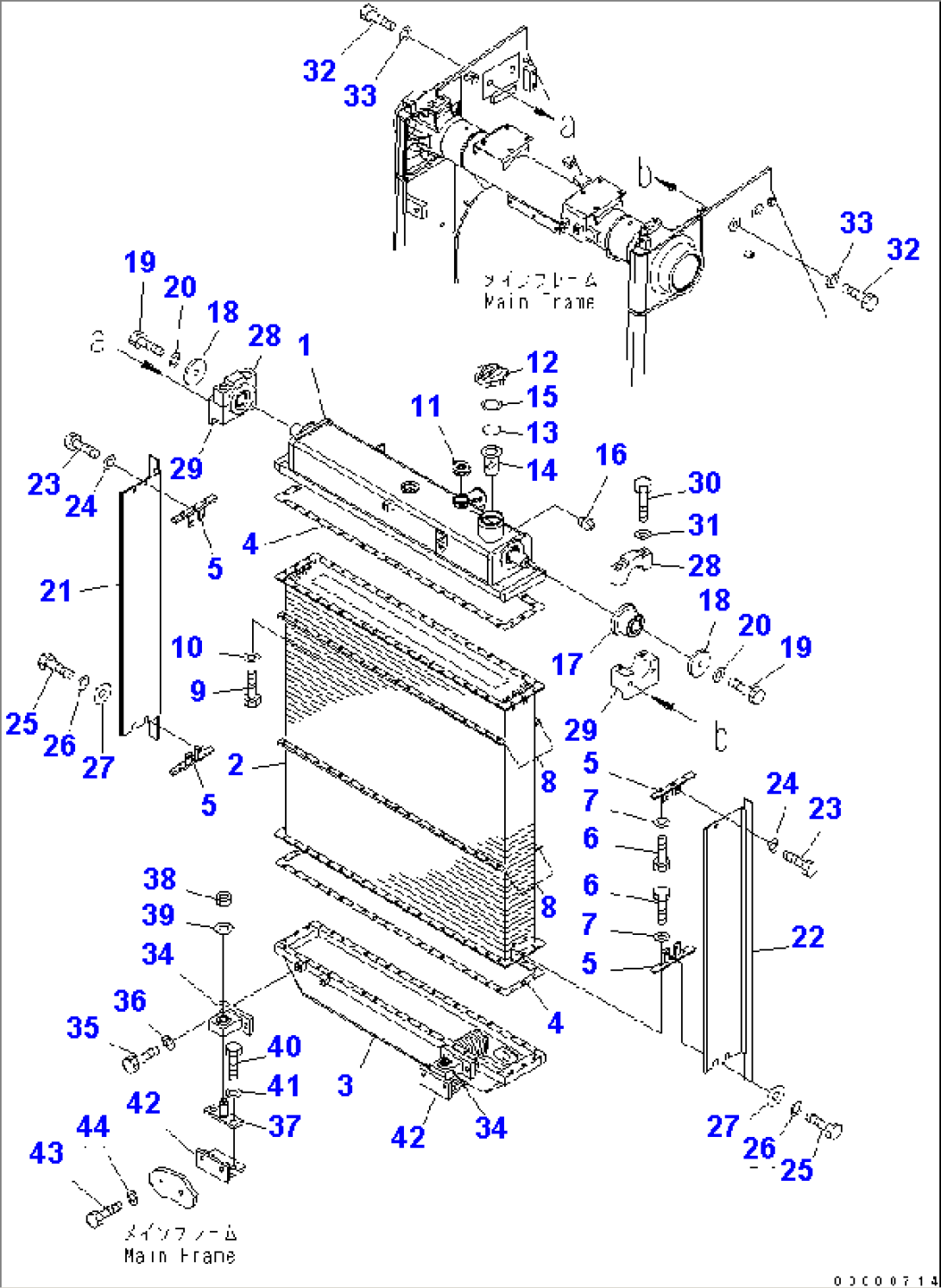

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-03-71101 | RADIATOR ASS'Y | 10001- | ||
| 1 | 154-03-71110 | TANK | 10001- | |
| 2 | 154-03-71120 | CORE | 10001- | |
| 3 | 154-03-71130 | TANK | 10001- | |
| 4 | 154-03-71170 | GASKET | 10001- | |
| 5 | 154-03-71160 | BRACKET | 10001- | |
| 6 | 01010-81030 | BOLT | 10001- | |
| 7 | 01643-31032 | WASHER | 10001- | |
| 8 | 154-03-11151 | PLATE | 10001- | |
| 9 | 01010-81030 | BOLT | 10001- | |
| 10 | 01643-31032 | WASHER | 10001- | |
| 11 | 201-03-51310 | CAP | 10001- | |
| 12 | 07053-10000 | CAP | 10001- | |
| 13 | 07057-03271 | RING | 10001- | |
| 14 | 07056-00048 | STRAINER | 10001- | |
| 15 | 07053-00002 | GASKET | 10001- | |
| 16 | 07042-00108 | PLUG | 10001- | |
| 17 | 17A-03-11281 | RUBBER | 10001- | |
| 18 | 565-43-14630 | WASHER | 10001- | |
| 19 | 01010-81225 | BOLT | 10001- | |
| 20 | 01643-31232 | WASHER | 10001- | |
| 21 | 154-03-71491 | WIND BRAKE,R.H | 10001- | |
| 22 | 154-03-71751 | WIND BRAKE,L.H | 10001- | |
| 23 | 01010-81016 | BOLT | 10001- | |
| 24 | 20Y-43-15410 | WASHER | 10001- | |
| 25 | 01010-81016 | BOLT | 10001- | |
| 26 | 21T-62-29640 | WASHER | 10001- | |
| 27 | 144-854-1890 | WASHER | 10001- | |
| 28 | 154-03-71211 | CAP | 10001- | |
| 29 | 154-03-71221 | BRACKET | 10001- | |
| 30 | 01010-81675 | BOLT | 10001- | |
| 31 | 01643-31645 | WASHER | 10001- | |
| 32 | 01010-81645 | BOLT | 10001- | |
| 33 | 01643-31645 | WASHER | 10001- | |
| 34 | 195-03-41200 | ISOLATOR ASS'Y | 10001- | |
| 35 | 01010-81240 | BOLT | 10001- | |
| 36 | 01643-31232 | WASHER | 10001- | |
| 37 | 17A-03-11271 | BRACKET | 10001- | |
| 38 | 01580-11210 | NUT | 10001- | |
| 39 | 175-54-34170 | WASHER | 10001- | |
| 40 | 01010-81240 | BOLT | 10001- | |
| 41 | 01643-31232 | WASHER | 10001- | |
| 42 | 154-03-71921 | BRACKET | 10001- | |
| 43 | 01010-81240 | BOLT | 10001- | |
| 44 | 01643-31232 | WASHER | 10001- |
