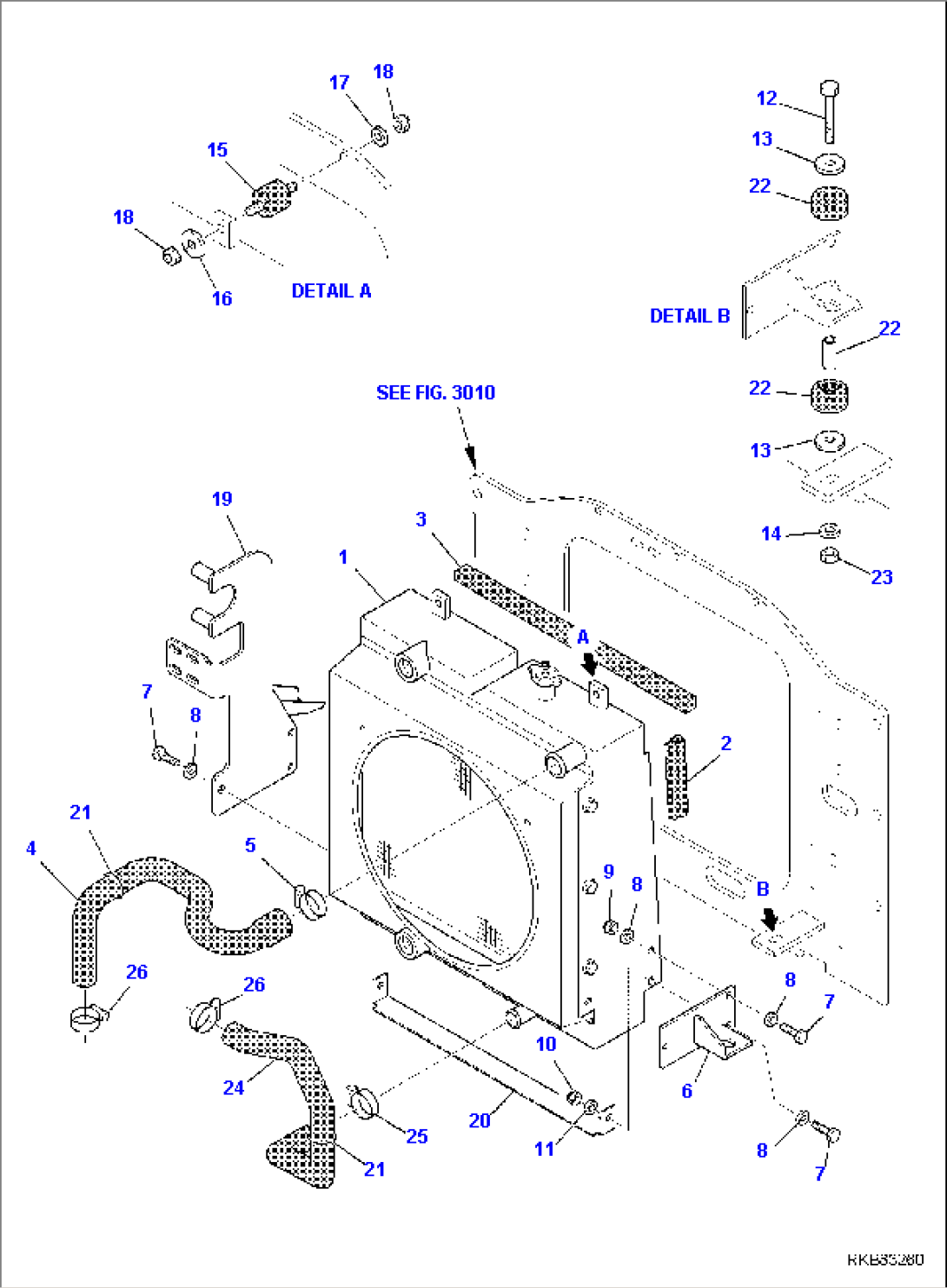

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (37B-03-15112) | RADIATOR, ASSEMBLY | 37BTF50599- | |
| 2 | 37A-03-11210 | GASKET | 37BTF50599- | |
| 3 | 37A-03-11340 | GASKET | 37BTF50599- | |
| 4 | 37A-03-11290 | SLEEVE | 37BTF50599- | |
| 5 | 07281-00489 | CLAMP | 37BTF50599- | |
| 6 | 37A-03-11260 | SUPPORT | 37BTF50599- | |
| 7 | 01016-51030 | BOLT | 37BTF50599- | |
| 8 | 01643-11032 | WASHER | 37BTF50599- | |
| 9 | 21D-09-24190 | NUT | 37BTF50599- | |
| 10 | 37A-09-35410 | NUT | 37BTF50599- | |
| 11 | 21D-09-74620 | WASHER | 37BTF50599- | |
| 12 | 01010-81075 | BOLT | 37BTF50599- | |
| 13 | 21D-09-74620 | WASHER | 37BTF50599- | |
| 14 | 01643-11032 | WASHER | 37BTF50599- | |
| 15 | 37A-03-11370 | PAD | 37BTF50599- | |
| 16 | 37A-09-4A013 | WASHER | 37BTF50599- | |
| 17 | 01643-11032 | WASHER | 37BTF50599- | |
| 18 | 37A-09-35410 | NUT | 37BTF50599- | |
| 19 | 37A-62-13154 | SUPPORT | 37BTF50599- | |
| 20 | 37A-03-11280 | BENT | 37BTF50599- | |
| 21 | 02893-05037 | O-RING | 37BTF50599- | |
| 22 | 37A-03-11220 | DAMPER | 37BTF50599- | |
| 23 | 801852410 | NUT, LOCK | 37BTF50599- | |
| 24 | 37B-03-11110 | SLEEVE | 37BTF50599- | |
| 25 | 07281-00489 | CLAMP | 37BTF50599- | |
| 26 | 37A-09-5J007 | CLAMP | 37BTF50599- | |
| SEE FIG. 3010 |
