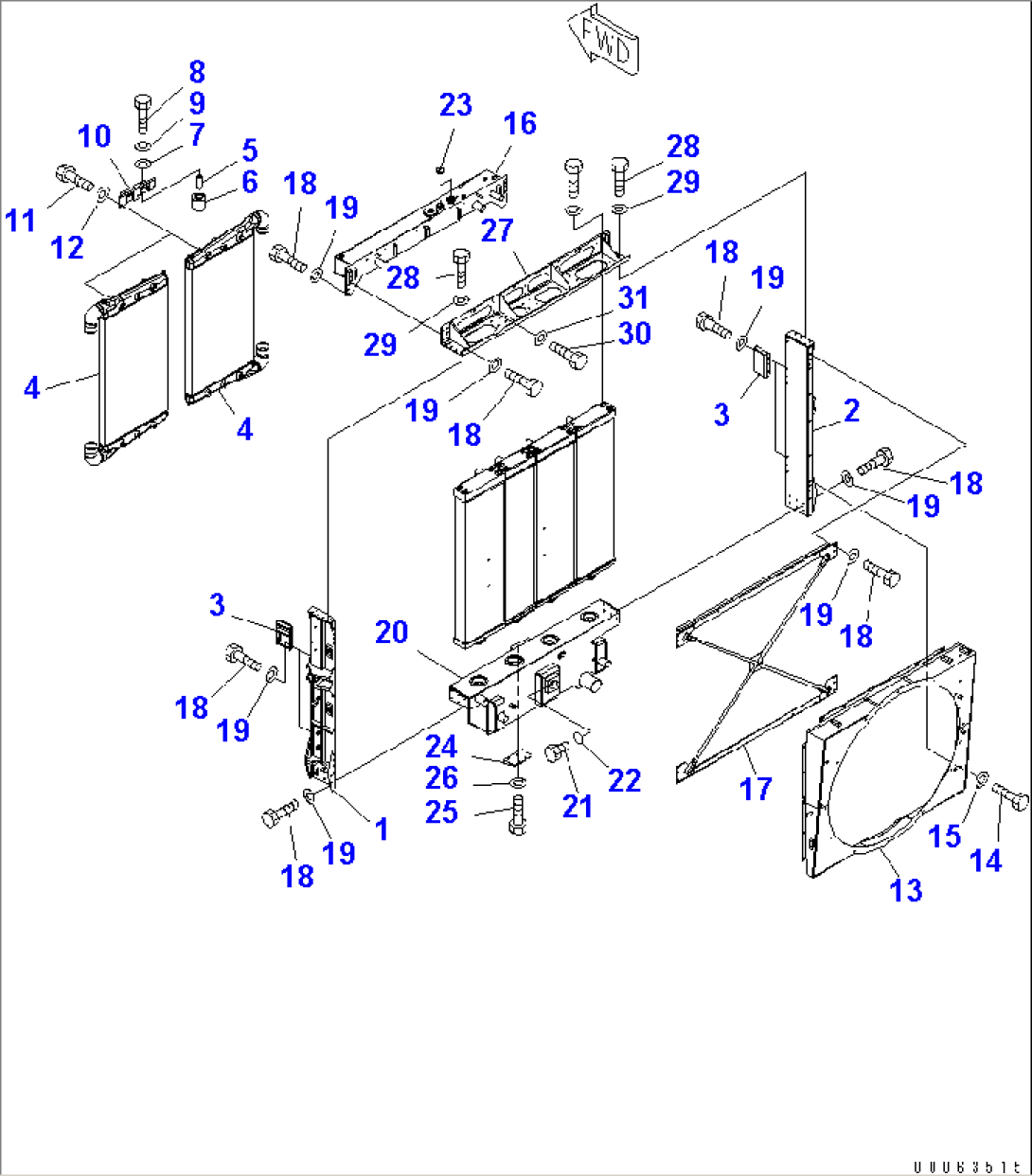

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-03-84105 | RADIATOR ASS'Y,AIR CONDITIONER | A10001- | ||
| 561-03-84202 | RADIATOR ASS'Y | A10001- | ||
| 1 | 561-03-81120 | SUPPORT | A10001- | |
| 2 | 561-03-81130 | SUPPORT | A10001- | |
| 3 | 561-03-81610 | BRACKET | A10001- | |
| 4 | 561-03-81660 | AFTER COOLER | A10001- | |
| 5 | 21N-03-37960 | SPACER | A10001- | |
| 6 | 198-03-22290 | ISOLATOR | A10001- | |
| 7 | 175-54-34170 | WASHER | A10001- | |
| 8 | 01010-81280 | BOLT | A10001- | |
| 9 | 01643-31232 | WASHER | A10001- | |
| 10 | 561-03-81921 | BRACKET | A10001- | |
| 11 | 01010-81230 | BOLT | A10001- | |
| 12 | 01643-31232 | WASHER | A10001- | |
| 13 | 561-03-81411 | SHROUD | A10001- | |
| 14 | 01010-81225 | BOLT | A10001- | |
| 15 | 01643-31232 | WASHER | A10001- | |
| 16 | 561-03-81110 | TANK,UPPER | A10001- | |
| 17 | 561-03-81450 | STAY,CROSS | A10001- | |
| 18 | 01010-81230 | BOLT | A10001- | |
| 19 | 01643-31232 | WASHER | A10001- | |
| 20 | 561-03-81310 | TANK | A10001- | |
| 21 | 07040-11007 | PLUG | A10001- | |
| 22 | 07002-21023 | O-RING | A10001- | |
| 23 | 569-03-81510 | CAP | A10001- | |
| 24 | 561-03-85190 | BRACKET | A10001- | |
| 25 | 01010-81230 | BOLT | A10001- | |
| 26 | 01643-31232 | WASHER | A10001- | |
| 27 | 561-03-81621 | BRACKET | A10001- | |
| 28 | 01010-81225 | BOLT | A10001- | |
| 29 | 01643-31232 | WASHER | A10001- | |
| 30 | 01010-81025 | BOLT | A10001- | |
| 31 | 01643-31032 | WASHER | A10001- |
