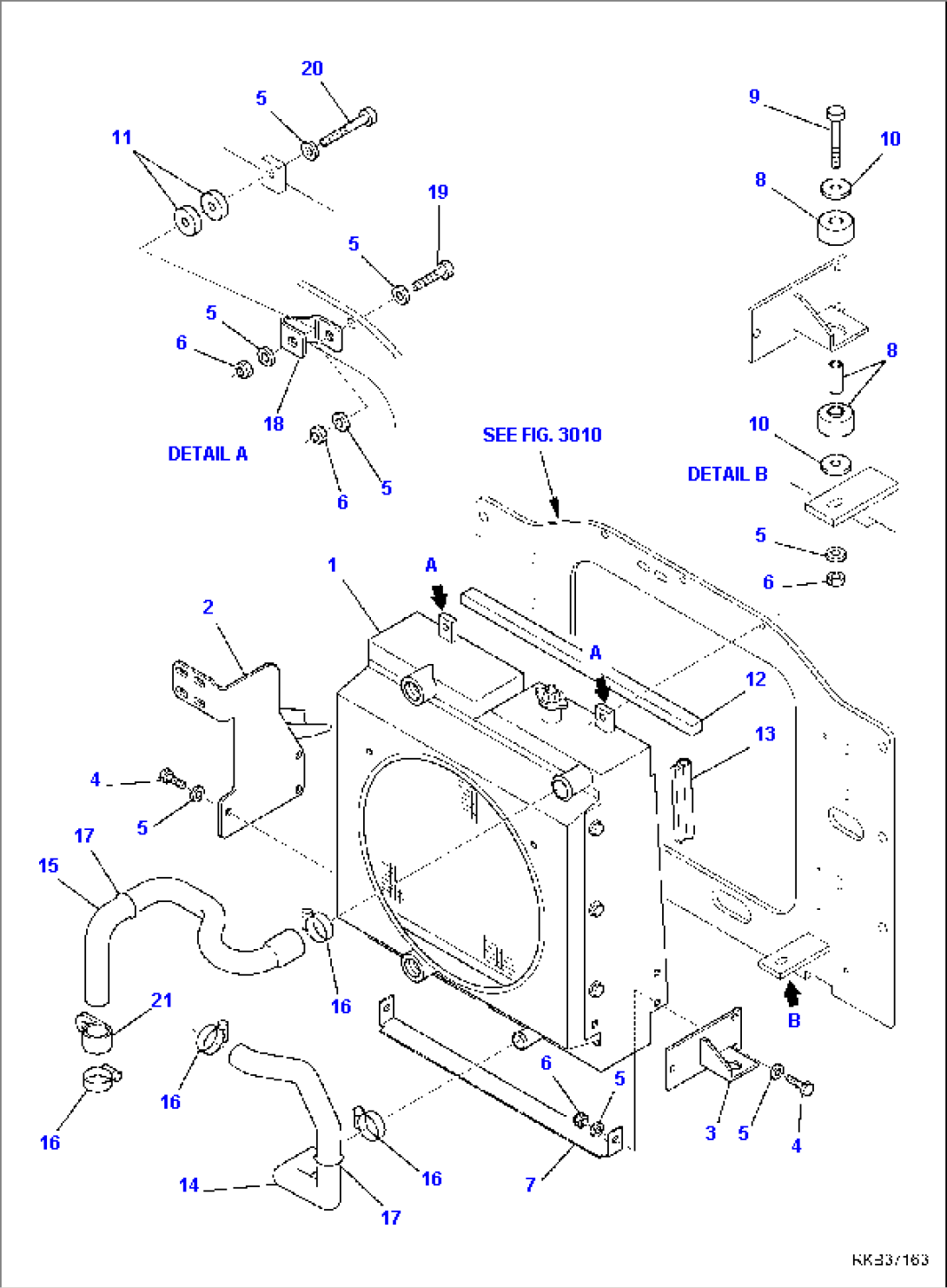

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (37C-03-11500) | RADIATOR, ASSEMBLY | F00003-F00017 | |
| 2 | 37C-62-13152 | SUPPORT | F00003-F00017 | |
| 3 | 37C-03-11261 | SUPPORT | F00003-F00017 | |
| 4 | 01016-51030 | BOLT | F00003-F00017 | |
| 5 | 01643-11032 | WASHER | F00003-F00017 | |
| 6 | 21D-09-24190 | NUT | F00003-F00017 | |
| 7 | 37C-03-11280 | SUPPORT | F00003-F00017 | |
| 8 | 37A-03-11220 | DAMPER | F00003-F00017 | |
| 9 | 01010-81075 | BOLT | F00003-F00017 | |
| 10 | 802160003 | WASHER | F00003-F00017 | |
| 11 | 37A-03-11360 | DAMPER | F00003-F00017 | |
| 12 | 37C-03-11340 | GASKET | F00003-F00017 | |
| 13 | 37C-03-11350 | GASKET | F00003-F00017 | |
| 14 | 37C-03-11312 | SLEEVE | F00003-F00017 | |
| 15 | 37C-03-11291 | SLEEVE | F00003-F00017 | |
| 16 | 07281-00489 | CLAMP | F00003-F00017 | |
| 17 | 02893-05046 | O-RING | F00003-F00017 | |
| 18 | 37C-03-11270 | BRACKET | F00003-F00017 | |
| 19 | 01010-81035 | BOLT | F00003-F00017 | |
| 20 | 01010-81050 | BOLT | F00003-F00017 | |
| 21 | 21D-09-81710 | CLIP | F00003-F00017 | |
| SEE FIG. 3010 |
