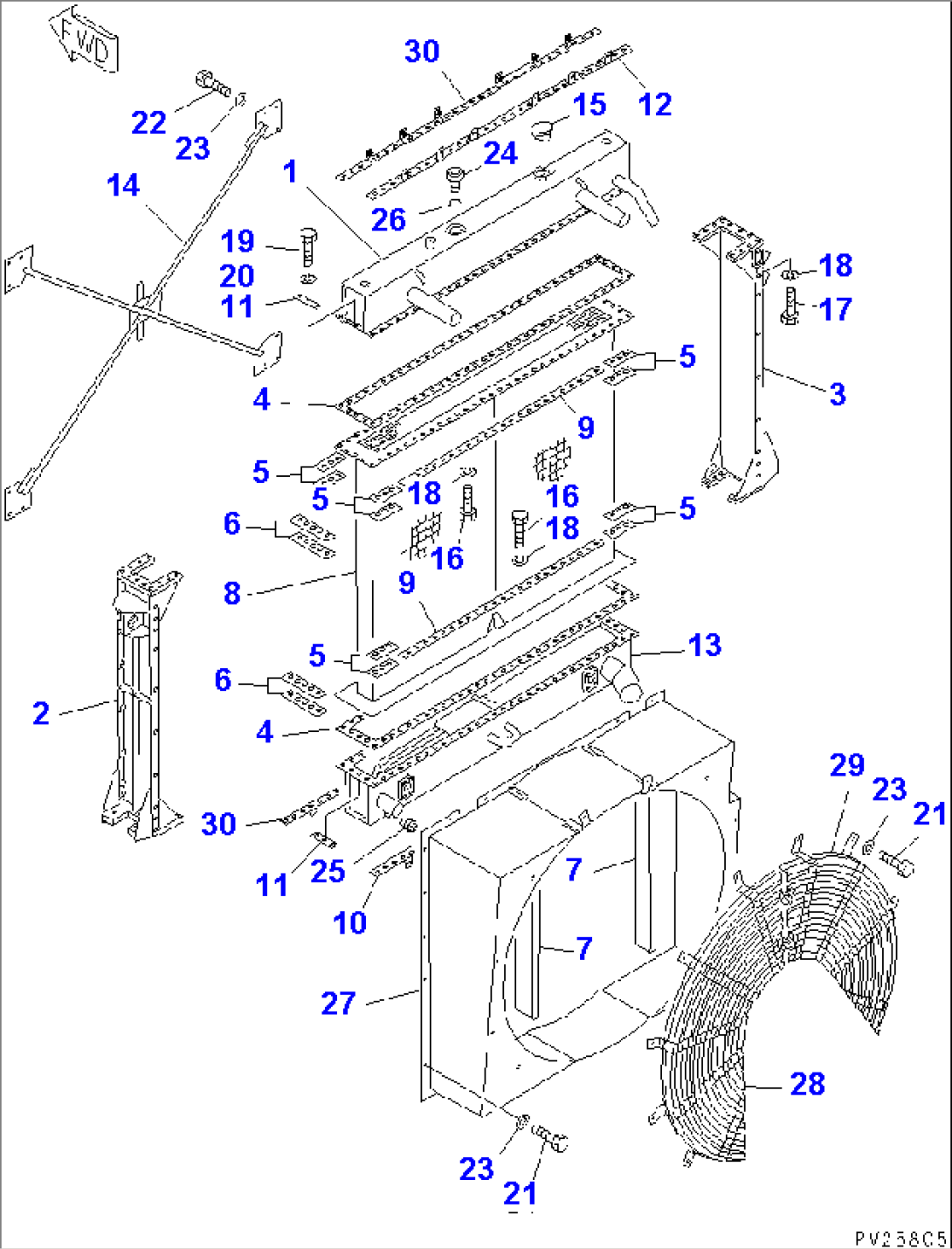

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-03-64103 | RADIATOR | .- | ||
| 561-03-64102 | RADIATOR ASS'Y | 1021-. | ||
| 1 | 561-03-61113 | RADIATOR ASS'Y | .- | |
| 561-03-61112 | TANK | 1021-. | ||
| 2 | 561-03-61122 | SUPPORT,L.H. | 1021- | |
| 3 | 561-03-61132 | SUPPORT,R.H. | 1021- | |
| 4 | 561-03-61141 | GASKET | 1021- | |
| 5 | 561-03-61151 | SHIM | 1021- | |
| 6 | 561-03-61160 | SHIM | 1021- | |
| 7 | 561-03-61170 | PACKING | 1021- | |
| 8 | 561-03-61212 | CORE | 1021- | |
| 9 | 561-03-61221 | PLATE | 1021- | |
| 10 | 561-03-61242 | PLATE | 1021- | |
| 11 | 561-03-61250 | PLATE | 1021- | |
| 12 | 561-03-61260 | PLATE | 1021- | |
| 13 | 561-03-61312 | TANK | 1021- | |
| 14 | 561-03-61450 | STAY | 1021- | |
| 15 | 561-03-61512 | CAP | .- | |
| 561-03-61511 | CAP | 1021-. | ||
| 16 | 01010-81030 | BOLT | 1021- | |
| 17 | 01010-81040 | BOLT | 1021- | |
| 18 | 01602-21030 | WASHER | 1021- | |
| 19 | 01010-81235 | BOLT | 1021- | |
| 20 | 01602-21236 | WASHER | 1021- | |
| 21 | 01010-81225 | BOLT | 1021- | |
| 22 | 01010-81230 | BOLT | 1021- | |
| 23 | 01643-31232 | WASHER | 1021- | |
| 24 | 07040-13618 | PLUG | 1021- | |
| 25 | 07042-20415 | PLUG | 1021- | |
| 26 | 07002-03634 | O-RING | 1021- | |
| 27 | 561-03-61412 | SHROUD | 1021- | |
| 28 | 561-03-64110 | NET,L.H. | 1021- | |
| 29 | 561-03-64120 | NET,R.H. | 1021- | |
| 30 | 561-03-61270 | PLATE | 1021-. |
