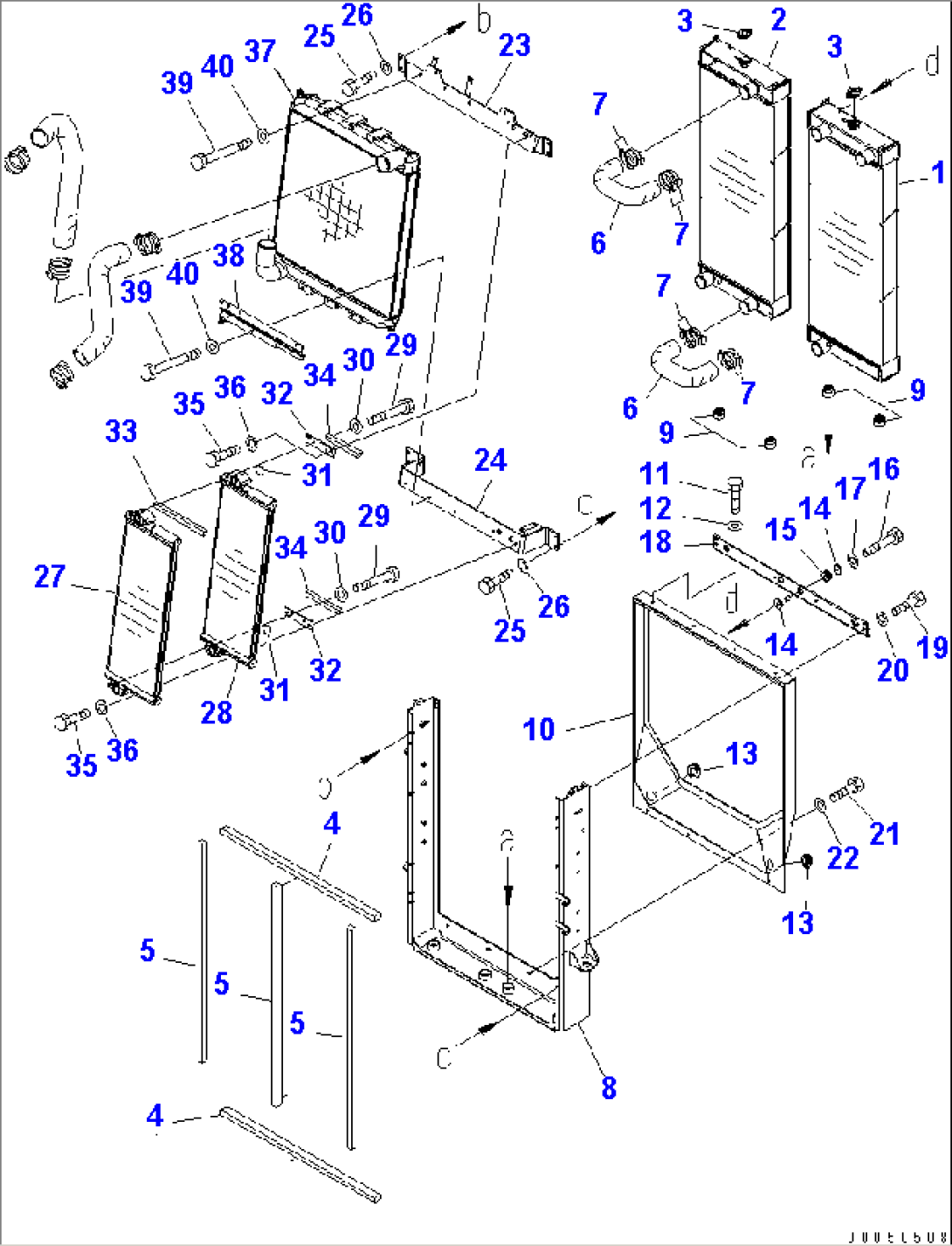

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-03-41100 | RADIATOR ASS'Y | A38001- | ||
| 1 | 421-03-44110 | CORE | A38001- | |
| 2 | 421-03-44120 | CORE | A38001- | |
| 3 | 416-03-11170 | CAP | A38001- | |
| 4 | 421-03-41150 | PACKING | A38001- | |
| 5 | 421-03-41160 | PACKING | A38001- | |
| 6 | 421-03-44430 | HOSE | A38001- | |
| 7 | 07289-00070 | CLAMP | A38001- | |
| 8 | 421-03-41120 | FRAME | A38001- | |
| 9 | 23C-03-51751 | CUSHION | A38001- | |
| 10 | 421-03-41130 | SHROUD | A38001- | |
| 11 | 01010-80820 | BOLT | A38001- | |
| 12 | 01643-30823 | WASHER | A38001- | |
| 13 | 09415-03614 | CAP | A38001- | |
| 14 | 178-60-12250 | COLLAR | A38001- | |
| 15 | 195-03-41380 | CUSHION | A38001- | |
| 16 | 01010-81050 | BOLT | A38001- | |
| 17 | 01643-31032 | WASHER | A38001- | |
| 18 | 421-03-41140 | PLATE | A38001- | |
| 19 | 01010-81025 | BOLT | A38001- | |
| 20 | 01643-31032 | WASHER | A38001- | |
| 21 | 01010-80820 | BOLT | A38001- | |
| 22 | 01643-30823 | WASHER | A38001- | |
| 23 | 421-03-41210 | BRACKET | A38001- | |
| 24 | 421-03-41220 | BRACKET | A38001- | |
| 25 | 01010-81025 | BOLT | A38001- | |
| 26 | 01643-31032 | WASHER | A38001- | |
| 421-03-44020 | OIL COOLER ASS'Y | A38001- | ||
| 27 | 421-03-44130 | OIL COOLER | A38001- | |
| 28 | 421-03-44140 | OIL COOLER | A38001- | |
| 29 | 01010-81080 | BOLT | A38001- | |
| 30 | 01643-31032 | WASHER | A38001- | |
| 31 | 07000-13035 | O-RING | A38001- | |
| 32 | 421-03-44280 | PLATE | A38001- | |
| 33 | 421-03-41270 | PACKING | A38001- | |
| 34 | 421-03-41360 | PACKING | A38001- | |
| 35 | 01010-81025 | BOLT | A38001- | |
| 36 | 01643-31032 | WASHER | A38001- | |
| 37 | 421-03-44150 | AFTER COOLER | A38001- | |
| 38 | 421-03-41260 | BRACKET | A38001- | |
| 39 | 01011-81015 | BOLT | A38001- | |
| 40 | 01643-31032 | WASHER | A38001- |
