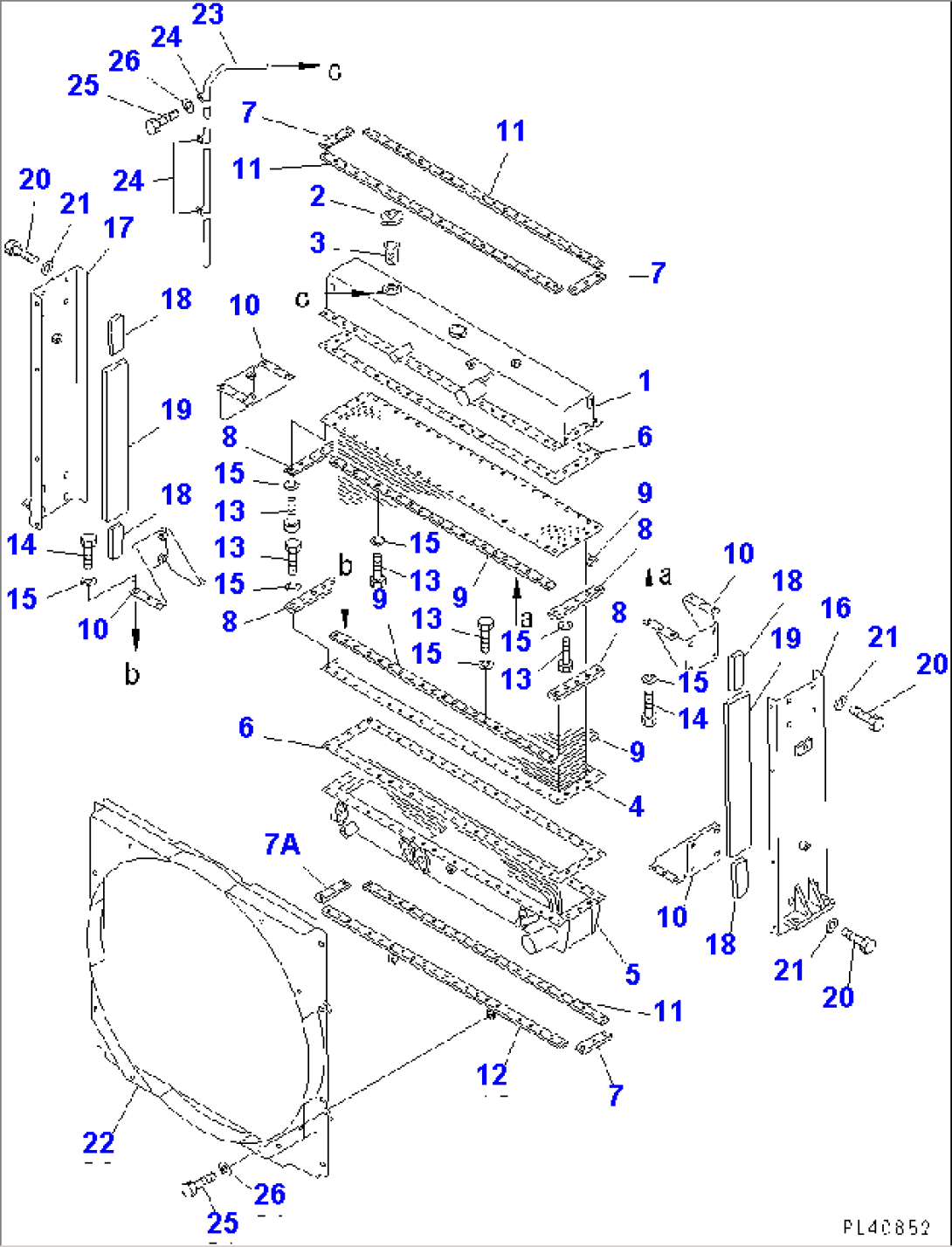

| Item | Part No. | Part Name | Qty | Serial No. |
| 425-03-11104 | RADIATOR ASS'Y | 20074- | ||
| 425-03-11103 | RADIATOR ASS'Y | 20001-20073 | ||
| 425-03-11102 | RADIATOR ASS'Y | 10071-19999 | ||
| \3\425-03-11101 | RADIATOR ASS'Y | 10001-10070 | ||
| (415-03-11102{425-03-12151} | ||||
| 07042-00415) | ||||
| 1 | 425-03-11122 | TANK,UPPER | 20001- | |
| 425-03-11121 | TANK,UPPER | 10001-19999 | ||
| 2 | 421-03-11460 | CAP | 10435- | |
| \0\281-03-12690 | CAP | 10001-10434 | ||
| 3 | 101-03-13160 | STRAINER | 10001- | |
| 4 | 425-03-11111 | CORE | 10001- | |
| 5 | 425-03-11134 | TANK,LOWER (WITH OIL COOLER) | 20074- | |
| 425-03-11133 | TANK,LOWER (WITH OIL COOLER) | 20001-20073 | ||
| 425-03-11132 | TANK,LOWER (WITH OIL COOLER) | 10071-19999 | ||
| 425-03-11131 | TANK,LOWER (WITH OIL COOLER) | 10001-10070 | ||
| 6 | 425-03-11192 | GASKET | .- | |
| \0\425-03-11191 | GASKET | 10001-. | ||
| 7 | 421-03-11260 | PLATE | 10001- | |
| 7A | 421-03-11260 | PLATE | 20001- | |
| 8 | 425-03-11181 | PLATE | 10001- | |
| 9 | 425-03-11171 | PLATE | 10001- | |
| 10 | 425-03-11161 | BRACKET | 10001- | |
| 11 | 425-03-11340 | PLATE | 10001- | |
| 12 | 425-03-11290 | PLATE | 10001- | |
| 13 | 01010-81030 | BOLT | 10001- | |
| 14 | 01010-81035 | BOLT | 10001- | |
| 15 | 01602-21030 | WASHER,SPRING | 10001- | |
| 16 | 425-03-11141 | SUPPORT,L.H. | 10001- | |
| 17 | 425-03-11151 | SUPPORT,R.H. | 10001- | |
| 18 | 425-03-11350 | PACKING | 10001- | |
| 19 | 425-03-11360 | PACKING | 10001- | |
| 20 | 01010-81225 | BOLT | 10001- | |
| 21 | 01643-31232 | WASHER | 10001- | |
| 22 | 425-03-11280 | SHROUD | 10001- | |
| 23 | 425-03-11370 | HOSE | 10001- | |
| 24 | 232-03-11210 | CLIP | 10001- | |
| 25 | 01010-81025 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- |
