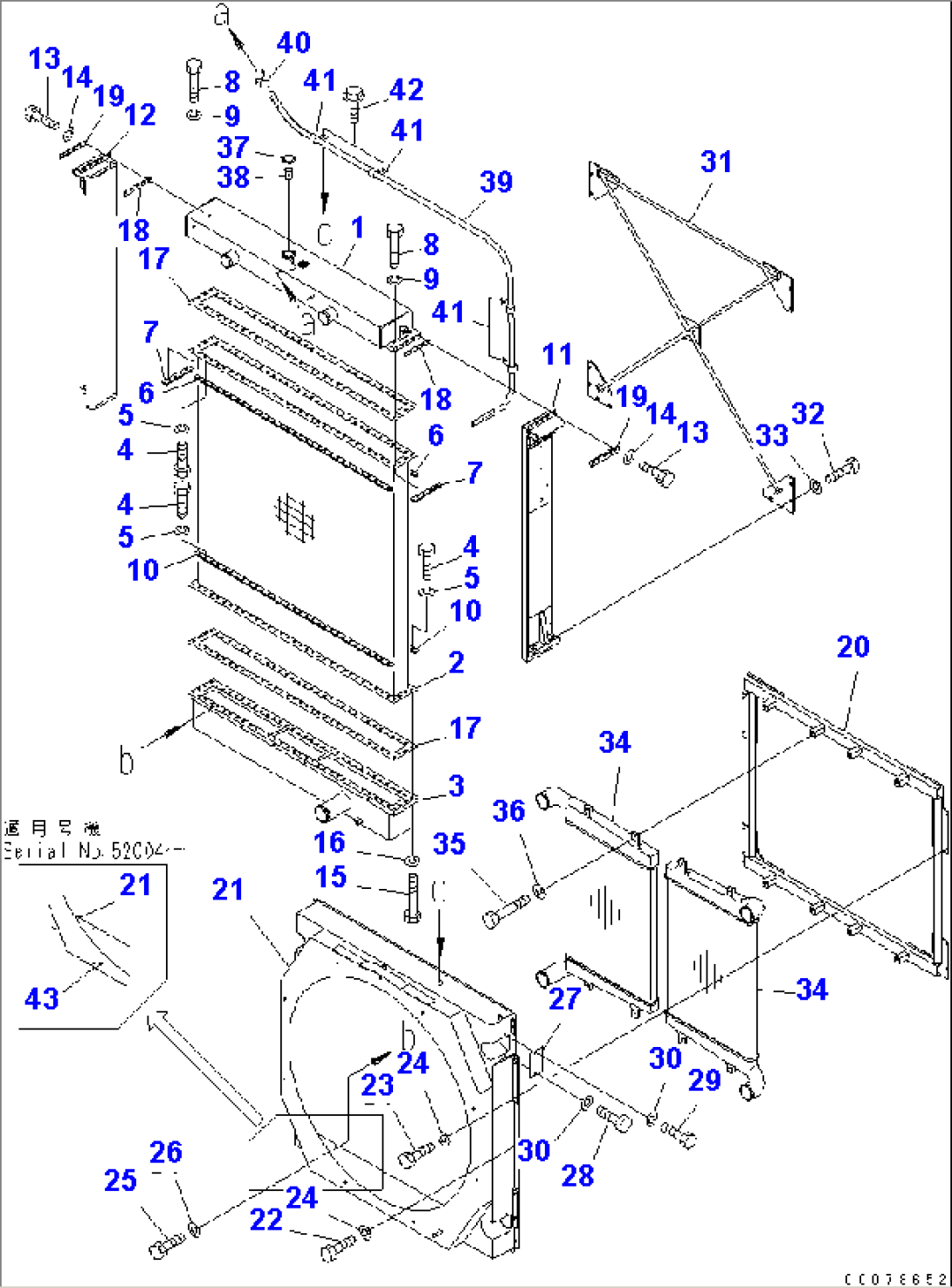

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-03-21402 | RADIATOR ASS'Y | 52004- | ||
| 427-03-21401 | RADIATOR ASS'Y | 52001-52003 | ||
| 1 | 427-03-21411 | TANK,UPPER | 52001- | |
| 2 | 427-03-21420 | CORE | 52001- | |
| 3 | 427-03-11270 | TANK,LOWER | 52001- | |
| 4 | 01010-81030 | BOLT | 52001- | |
| 5 | 01602-21030 | WASHER | 52001- | |
| 6 | 427-03-11150 | PLATE | 52001- | |
| 7 | 425-03-11180 | PLATE | 52001- | |
| 8 | 01010-81250 | BOLT | 52001- | |
| 9 | 01602-21236 | WASHER | 52001- | |
| 10 | 427-03-11160 | PLATE | 52001- | |
| 11 | 427-03-21430 | SUPPORT,L.H. | 52001- | |
| 12 | 427-03-21440 | SUPPORT,R.H. | 52001- | |
| 13 | 01010-81225 | BOLT | 52001- | |
| 14 | 01643-31232 | WASHER | 52001- | |
| 15 | 01010-81260 | BOLT | 52001- | |
| 16 | 01602-21236 | WASHER | 52001- | |
| 17 | 427-03-11191 | GASKET | 52001- | |
| 18 | 427-03-11210 | PACKING | 52001- | |
| 19 | 427-03-11630 | PLATE | 52001- | |
| 20 | 427-03-21470 | BRACKET | 52001- | |
| 21 | 427-03-21462 | SHROUD | 52001- | |
| 22 | 01010-81225 | BOLT | 52001- | |
| 23 | 01010-81230 | BOLT | 52001- | |
| 24 | 01643-31232 | WASHER | 52001- | |
| 25 | 01010-81220 | BOLT | 52001- | |
| 26 | 01643-31232 | WASHER | 52001- | |
| 27 | 427-03-21490 | PLATE | 52001- | |
| 28 | 01010-81225 | BOLT | 52001- | |
| 29 | 01010-81230 | BOLT | 52001- | |
| 30 | 01643-31232 | WASHER | 52001- | |
| 31 | 427-03-11230 | STAY,CROSS | 52001- | |
| 32 | 01010-81230 | BOLT | 52001- | |
| 33 | 01643-31232 | WASHER | 52001- | |
| 34 | 427-03-21480 | AFTER COOLER | 52001- | |
| 35 | 01011-81210 | BOLT | 52001- | |
| 36 | 01643-31232 | WASHER | 52001- | |
| 37 | 421-03-21210 | CAP ASS'Y | 52001- | |
| 38 | 101-03-13160 | STRAINER | 52001- | |
| 39 | 427-03-21450 | HOSE | 52001- | |
| 40 | 20Y-03-11330 | CLIP | 52001- | |
| 41 | 08036-21214 | CLIP | 52001- | |
| 42 | 01435-01016 | BOLT | 52001- | |
| 43 | 419-46-12E30 | SEAT | 52004- |
