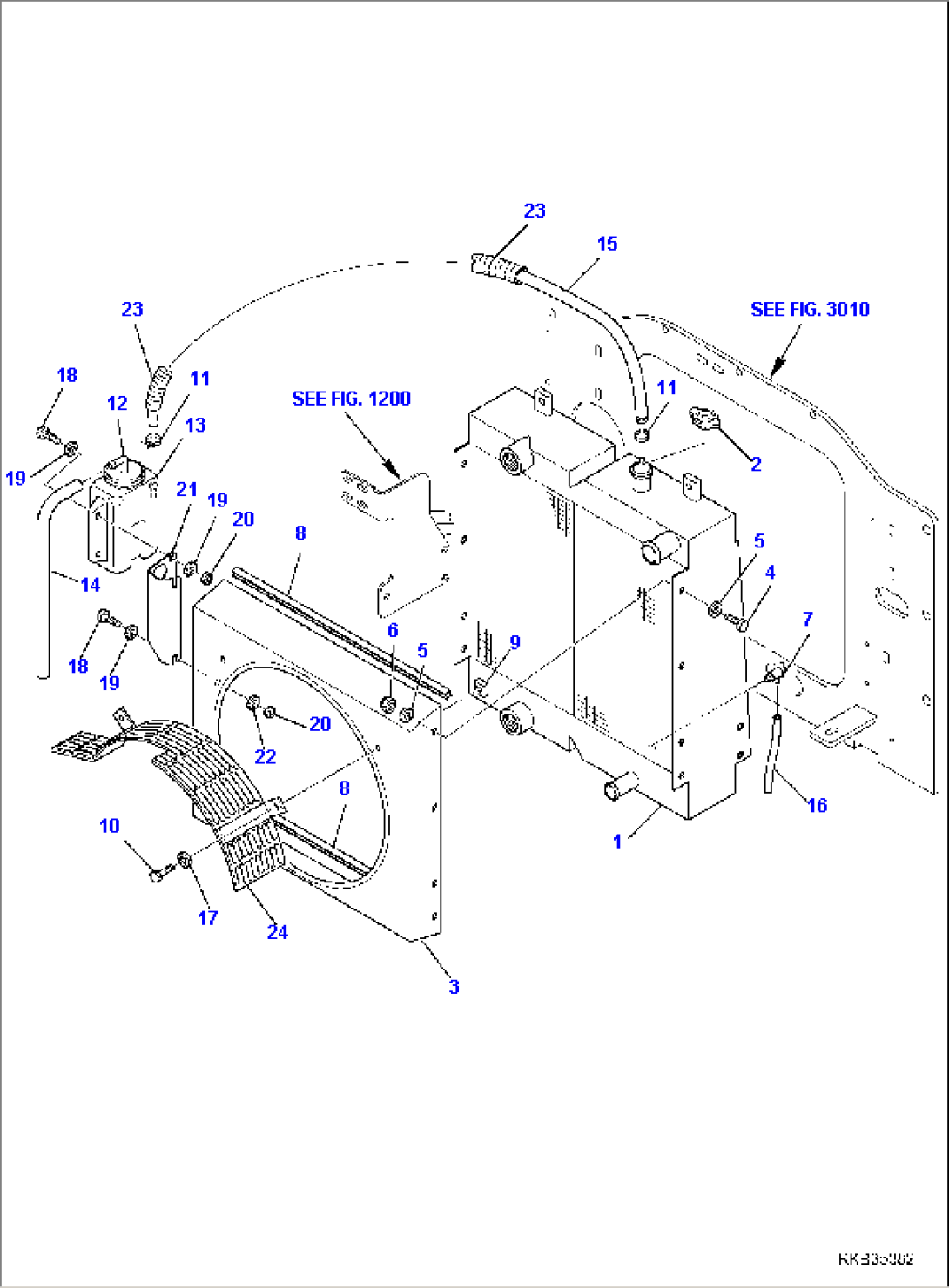

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | 37C-03-11500 | RADIATOR, ASSEMBLY | 37CTF00003-37CTF00431 | |
| 1 | 875600048 | RADIATOR | 37CTF00003-37CTF00431 | |
| 2 | 226-03-11560 | CAP | 37CTF00003-37CTF00431 | |
| 3 | 875600049 | CONVEYOR | 37CTF00003-37CTF00431 | |
| 4 | 37A-09-11067 | BOLT | 37CTF00003-37CTF00431 | |
| 5 | 875600050 | WASHER | 37CTF00003-37CTF00431 | |
| 6 | 21D-09-21440 | NUT | 37CTF00003-37CTF00431 | |
| 7 | 875600013 | DRAIN COCK | 37CTF00003-37CTF00431 | |
| 8 | 875600042 | GASKET | 37CTF00003-37CTF00431 | |
| 9 | 875600051 | NUT | 37CTF00003-37CTF00431 | |
| 10 | 01010-81025 | BOLT | 37CTF00003-37CTF00431 | |
| 11 | 07285-00115 | CLAMP | 37CTF00003-37CTF00431 | |
| 12 | 22L-09-R3820 | PLUG | 37CTF00003-37CTF00431 | |
| 13 | 22L-09-R3810 | RESERVOIR | 37CTF00003-37CTF00431 | |
| 14 | 37A-03-11240 | HOSE | 37CTF00003-37CTF00431 | |
| 15 | 37A-03-11321 | HOSE | 37CTF00003-37CTF00431 | |
| 16 | 37C-03-11330 | HOSE | 37CTF00003-37CTF00431 | |
| 17 | 01643-11032 | WASHER | 37CTF00003-37CTF00431 | |
| 18 | 01016-50825 | BOLT | 37CTF00003-37CTF00431 | |
| 19 | 01643-10823 | WASHER | 37CTF00003-37CTF00431 | |
| 20 | 21D-09-24180 | NUT | 37CTF00003-37CTF00431 | |
| 21 | 37C-03-11220 | SUPPORT | 37CTF00003-37CTF00431 | |
| 22 | 37A-09-4A009 | WASHER | 37CTF00003-37CTF00431 | |
| 23 | 37A-04-11220 | PROTECTION | 37CTF00003-37CTF00431 | |
| 24 | 37C-01-11612 | PROTECTION, FAN | 37CTF00003-37CTF00431 | |
| SEE FIG. 1200 | ||||
| SEE FIG. 3010 |
