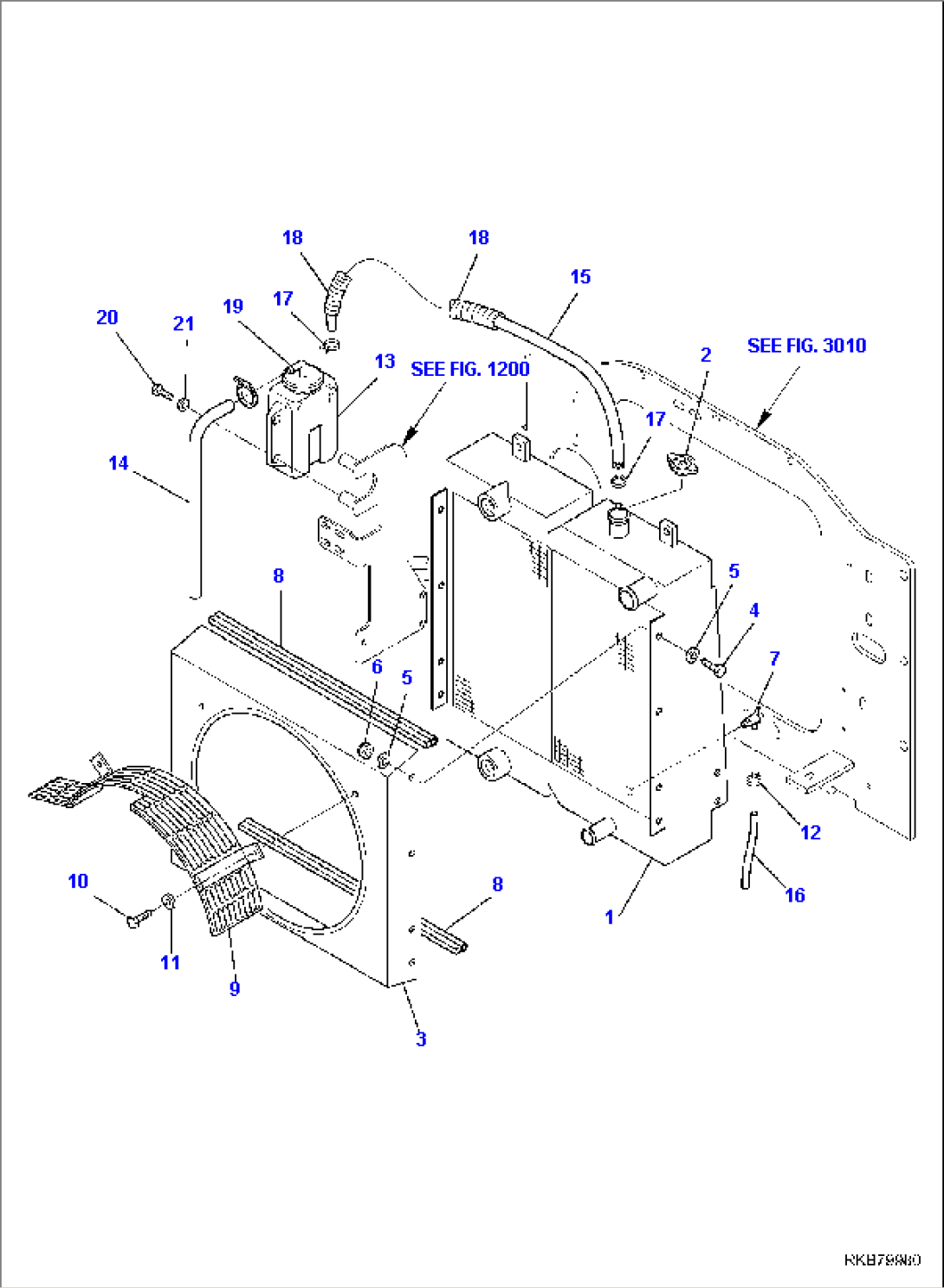

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | 37A-03-11204 | RADIATOR, ASSEMBLY | 37BTF50373-37BTF50383 | |
| 1 | \6\ | RADIATOR, ASSEMBLY | 37BTF50373-37BTF50383 | |
| 2 | 875600052 | CAP | 37BTF50373-37BTF50383 | |
| 3 | 875600011 | CONVEYOR | 37BTF50373-37BTF50383 | |
| 4 | 801014067 | BOLT | 37BTF50373-37BTF50383 | |
| 5 | 802070008 | WASHER | 37BTF50373-37BTF50383 | |
| 6 | 801703208 | NUT | 37BTF50373-37BTF50383 | |
| 7 | 875600013 | DRAIN COCK | 37BTF50373-37BTF50383 | |
| 8 | 875600039 | GASKET | 37BTF50373-37BTF50383 | |
| 9 | 37A-01-11612 | PROTECTION | 37BTF50373-37BTF50383 | |
| 10 | 01010-81025 | BOLT | 37BTF50373-37BTF50383 | |
| 11 | 01643-11032 | WASHER | 37BTF50373-37BTF50383 | |
| 12 | 07285-00115 | CLAMP | 37BTF50373-37BTF50383 | |
| 13 | 22L-09-R3810 | RESERVOIR | 37BTF50373-37BTF50383 | |
| 14 | 37A-03-11240 | HOSE | 37BTF50373-37BTF50383 | |
| 15 | 37A-03-11321 | HOSE | 37BTF50373-37BTF50383 | |
| 16 | 37A-03-11330 | HOSE | 37BTF50373-37BTF50383 | |
| 17 | 07285-00130 | CLAMP | 37BTF50373-37BTF50383 | |
| 18 | 37A-04-11220 | PROTECTION | 37BTF50373-37BTF50383 | |
| 19 | 22L-09-R3820 | PLUG | 37BTF50373-37BTF50383 | |
| 20 | 01010-80820 | BOLT | 37BTF50373-37BTF50383 | |
| 21 | 37A-09-4A009 | WASHER | 37BTF50373-37BTF50383 | |
| SEE FIG. 1200 | ||||
| SEE FIG. 3010 |
