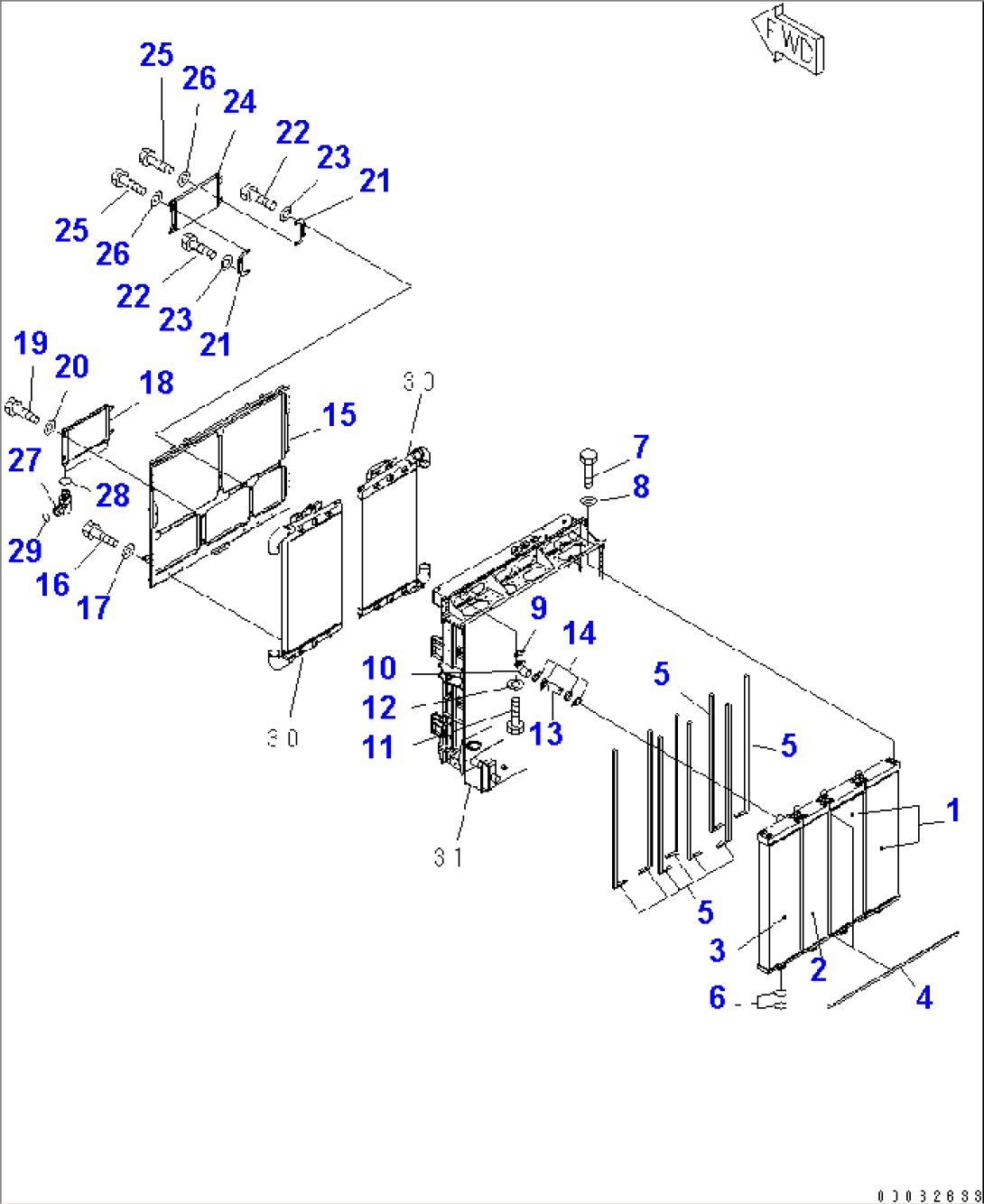

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-03-84105 | RADIATOR ASS'Y | A10001- | ||
| 1 | 561-03-81631 | CORE | A10001- | |
| 2 | 561-03-81651 | CORE | A10001- | |
| 3 | 561-03-81641 | CORE | A10001- | |
| 4 | 561-03-81670 | PACKING | A10001- | |
| 5 | 561-03-81170 | PACKING | A10001- | |
| 6 | 426-03-31220 | O-RING | A10001- | |
| 7 | 01010-81025 | BOLT | A10001- | |
| 8 | 01643-31032 | WASHER | A10001- | |
| 9 | 426-03-37380 | GASKET | A10001- | |
| 10 | 561-03-81540 | TUBE | A10001- | |
| 11 | 01010-81025 | BOLT | A10001- | |
| 12 | 01643-31032 | WASHER | A10001- | |
| 13 | 561-03-81530 | HOSE | A10001- | |
| 14 | 07299-00070 | CLAMP | A10001- | |
| 15 | 561-03-85510 | BRACKET | A10001- | |
| 16 | 01010-81230 | BOLT | A10001- | |
| 17 | 01643-31232 | WASHER | A10001- | |
| 18 | 561-03-81280 | COOLER,HYDRAULIC OIL | A10001- | |
| 19 | 01010-81030 | BOLT | A10001- | |
| 20 | 01643-51032 | WASHER | A10001- | |
| 21 | 561-03-81242 | BRACKET | A10001- | |
| 22 | 01010-81040 | BOLT | A10001- | |
| 23 | 01643-31032 | WASHER | A10001- | |
| 24 | 56E-07-21133 | CONDENSER ASS'Y | A10001- | |
| 25 | 01010-80820 | BOLT | A10001- | |
| 26 | 01643-30823 | WASHER | A10001- | |
| 27 | 02782-10628 | ELBOW | A10001- | |
| 28 | 07002-22434 | O-RING | A10001- | |
| 29 | 02896-21018 | O-RING | A10001- | |
| 30 | (561-03-81660) | AFTER COOLER,(SEE FIG. C0110-01B0) | A10001- | |
| 31 | (561-03-81310) | TANK,(SEE FIG. C0110-01B0) | A10001- |
