| Item | Part No. | Part Name | Qty | Serial No. |
| (561-03-84106) | RADIATOR ASS'Y | 7739-7918 | ||

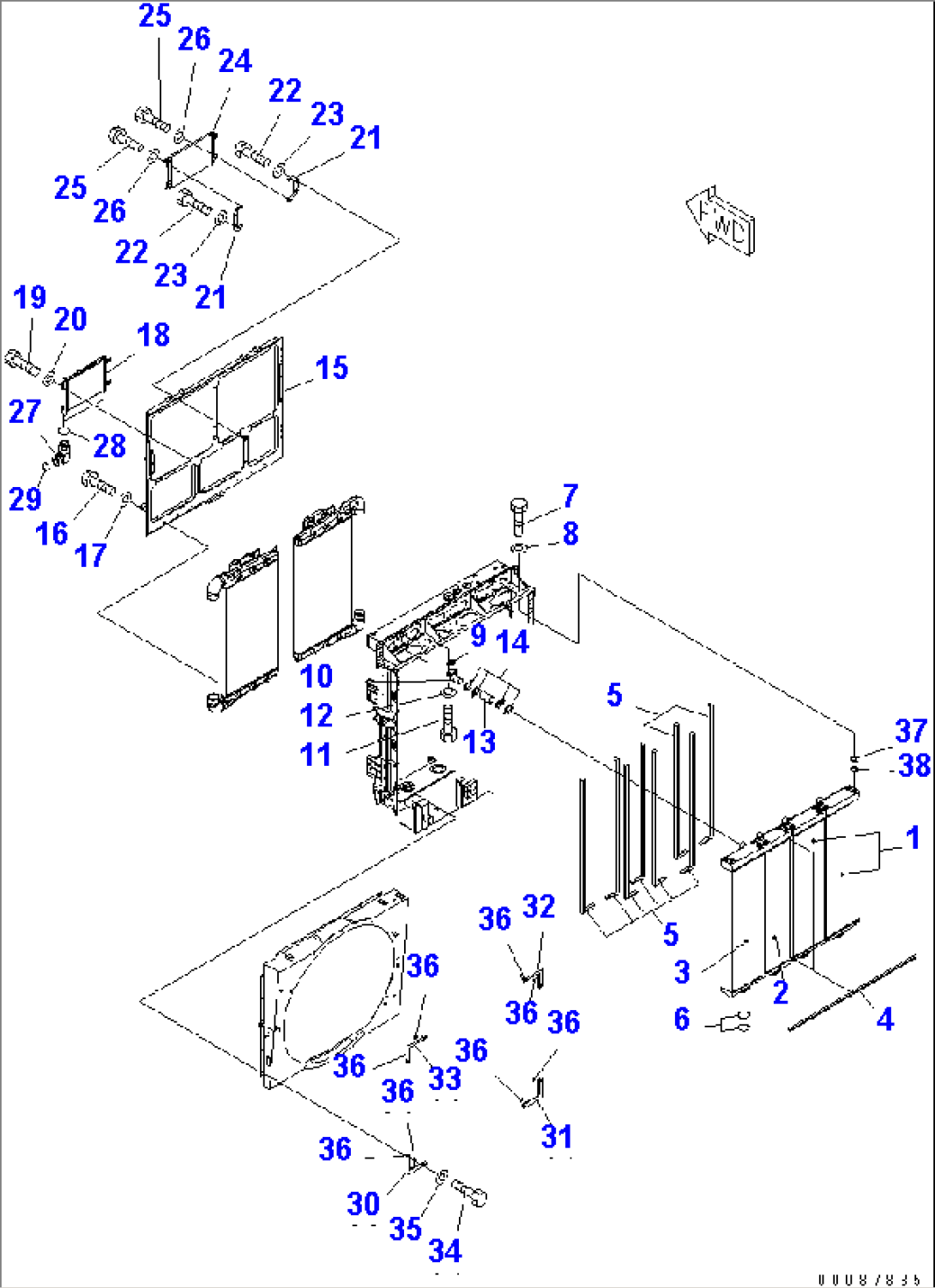

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.C0110-01B0 AND C0110-02B0. | ||||
| 1 | 561-03-81631 | CORE | 7169-7918 | |
| 2 | 561-03-81651 | CORE | 7169-7918 | |
| 3 | 561-03-81641 | CORE | 7169-7918 | |
| 4 | 561-03-81670 | PACKING | 7169-@ | |
| 5 | 561-03-81170 | PACKING | 7169-@ | |
| 6 | 426-03-31220 | O-RING | 7169-@ | |
| 7 | 01010-81025 | BOLT | 7169-7918 | |
| 8 | 01643-31032 | WASHER | 7169-7918 | |
| 9 | 426-03-37380 | GASKET | 7169-@ | |
| 10 | 561-03-81540 | TUBE | 7169-@ | |
| 11 | 01010-81025 | BOLT | 7169-@ | |
| 12 | 01643-31032 | WASHER | 7169-@ | |
| 13 | 561-03-81530 | HOSE | 7169-@ | |
| 14 | 07299-00070 | CLAMP | 7169-@ | |
| 15 | 561-03-85510 | BRACKET | 7169-@ | |
| 16 | 01010-81230 | BOLT | 7169-@ | |
| 17 | 01643-31232 | WASHER | 7169-@ | |
| 18 | 561-03-81280 | COOLER,HYDRAULIC OIL | 7169-@ | |
| 19 | 01010-81030 | BOLT | 7169-@ | |
| 20 | 01643-51032 | WASHER | 7169-@ | |
| 21 | 561-03-81242 | BRACKET | 7169-@ | |
| 22 | 01010-81040 | BOLT | 7169-@ | |
| 23 | 01643-31032 | WASHER | 7169-@ | |
| 24 | 56E-07-21133 | CONDENSER ASS'Y | 7169-@ | |
| 25 | 01010-80820 | BOLT | 7169-@ | |
| 26 | 01643-30823 | WASHER | 7169-@ | |
| 27 | 02782-10628 | ELBOW | 7169-@ | |
| 28 | 07002-22434 | O-RING | 7169-@ | |
| 29 | 02896-21018 | O-RING | 7169-@ | |
| 30 | 561-03-82760 | BRACKET | 7739-@ | |
| 31 | 561-03-82770 | BRACKET | 7739-@ | |
| 32 | 561-03-82780 | BRACKET | 7739-@ | |
| 33 | 561-03-82790 | BRACKET | 7739-@ | |
| 34 | 01010-81250 | BOLT | 7739-@ | |
| 35 | 01643-31232 | WASHER | 7739-@ | |
| 36 | 561-03-82750 | SEAL | 7739-@ | |
| 37 | 561-03-82240 | SHIM | 7739-@ | |
| 38 | 561-03-82250 | SHIM | 7739-@ |
