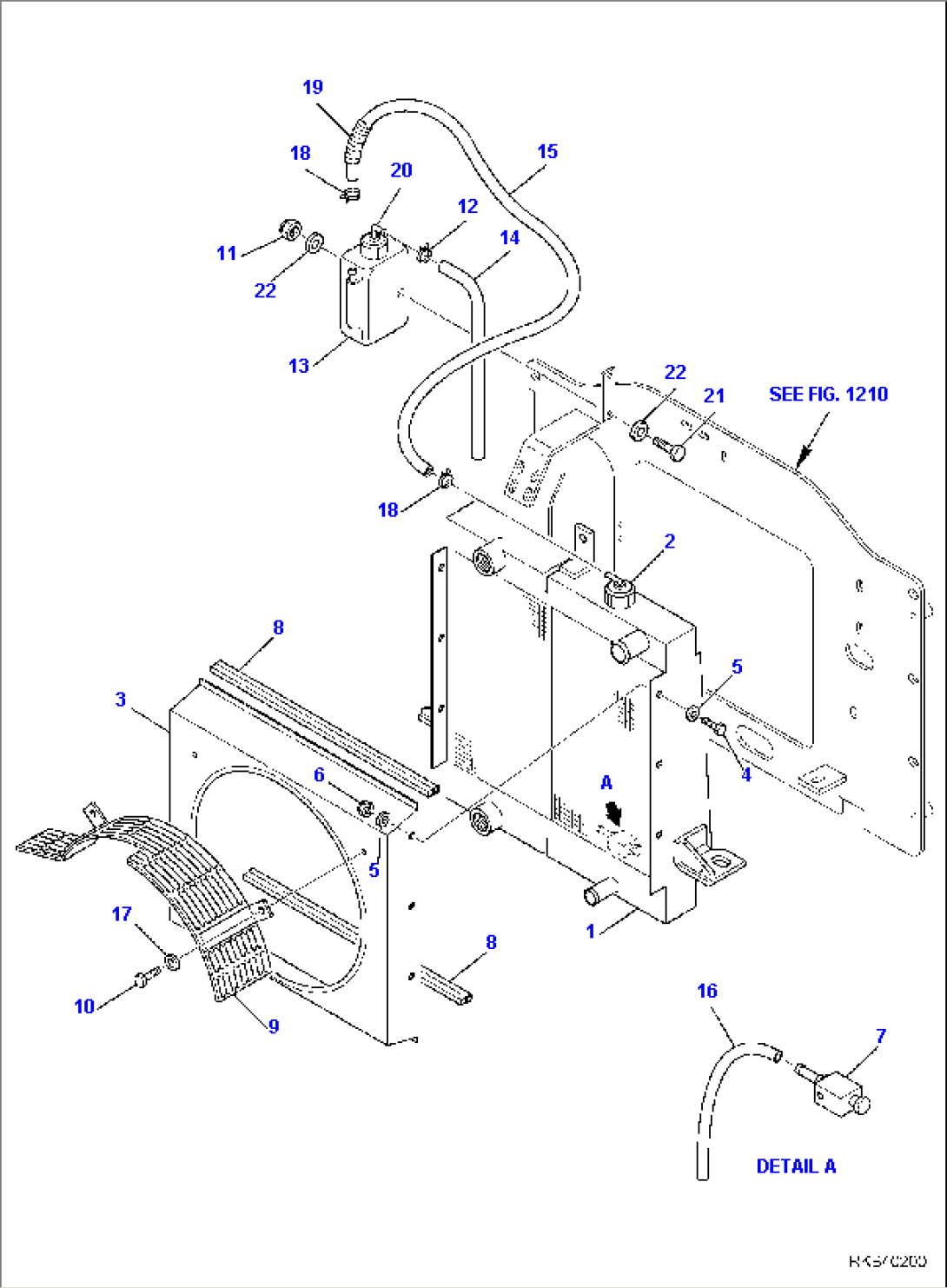

| Item | Part No. | Part Name | Qty | Serial No. |
| \0.99 | 37D-03-11201 | RADIATOR, ASSEMBLY | F00001-F00382 | |
| 1 | 875600010 | RADIATOR, ASSEMBLY | F00001-F00382 | |
| 2 | 875600052 | CAP | F00001-F00382 | |
| 3 | 875600011 | CONVEYOR | F00001-F00382 | |
| 4 | 37A-09-11067 | BOLT | F00001-F00382 | |
| 5 | 01640-20816 | WASHER | F00001-F00382 | |
| 6 | 21D-09-21440 | NUT | F00001-F00382 | |
| 7 | 875600013 | DRAIN COCK | F00001-F00382 | |
| 8 | 875600039 | GASKET | F00001-F00382 | |
| 9 | 37D-01-11612 | PROTECTION | F00001-F00382 | |
| 10 | 01016-50825 | BOLT | F00001-F00382 | |
| 11 | 21D-09-24180 | NUT | F00001-F00382 | |
| 12 | 07285-00130 | CLAMP | F00001-F00382 | |
| 13 | 22L-09-R3810 | RESERVOIR | F00001-F00382 | |
| 14 | 37A-03-11240 | HOSE | F00001-F00382 | |
| 15 | 37A-03-11321 | HOSE | F00001-F00382 | |
| 16 | 37A-03-11330 | HOSE | F00001-F00382 | |
| 17 | 37A-09-4A009 | WASHER | F00001-F00382 | |
| 18 | 07285-00115 | CLAMP | F00001-F00382 | |
| 19 | 37A-04-11220 | PROTECTION | F00001-F00382 | |
| 20 | 22L-09-R3820 | PLUG | F00001-F00382 | |
| 21 | 01016-50830 | BOLT | F00001-F00382 | |
| 22 | 01643-10823 | WASHER | F00001-F00382 | |
| SEE FIG. 1210 |
