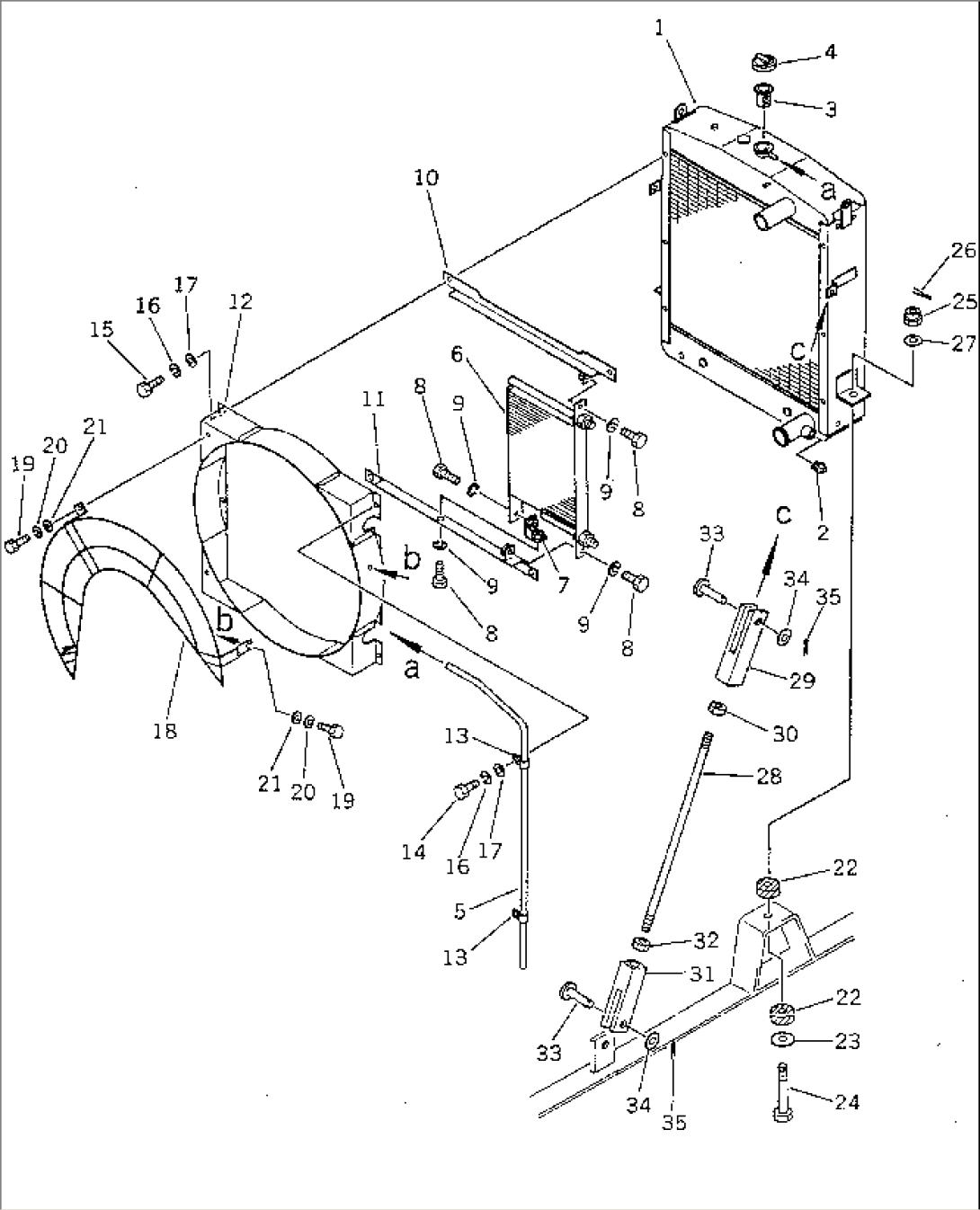

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-03-11500 | RADIATOR ASS'Y | 50001- | ||
| 1 | 23B-03-11550 | CORE ASS'Y,(WITH OIL COOLER) | 50001- | |
| 2 | 07042-00415 | PLUG | 50001- | |
| 3 | 230-03-11470 | STRAINER | 50001- | |
| 4 | 101-03-13141 | CAP | 50001- | |
| 5 | 145-03-32160 | PIPE | 50001- | |
| 6 | 113-49-31111 | COOLER,(FOR HYDRAULIC) | 50001- | |
| 7 | 23B-03-11440 | BRACKET | 50001- | |
| 8 | 01010-51020 | BOLT | 50001- | |
| 9 | 01602-21030 | WASHER,SPRING | 50001- | |
| 10 | 23B-03-11420 | STAY | 50001- | |
| 11 | 23B-03-11430 | STAY | 50001- | |
| 12 | 23B-03-11560 | SHROUD | 50001- | |
| 13 | 232-03-11210 | CLIP | 50001- | |
| 14 | 01010-51025 | BOLT | 50001- | |
| 15 | 01010-51020 | BOLT | 50001- | |
| 16 | 01602-21030 | WASHER,SPRING | 50001- | |
| 17 | 01643-31032 | WASHER | 50001- | |
| 18 | 23B-03-11570 | NET,WIRE | 50001- | |
| 19 | 01010-51020 | BOLT | 50001- | |
| 20 | 01602-21030 | WASHER,SPRING | 50001- | |
| 21 | 01643-31032 | WASHER | 50001- | |
| 22 | 23B-03-11520 | CUSHION | 50001- | |
| 23 | 236-03-21190 | WASHER | 50001- | |
| 24 | 01012-51480 | BOLT | 50001- | |
| 25 | 01590-11416 | NUT | 50001- | |
| 26 | 04050-13028 | PIN,COTTER | 50001- | |
| 27 | 01640-21426 | WASHER | 50001- | |
| 28 | 04248-31661 | ROD | 50001- | |
| 29 | 04221-21688 | YOKE,L.H. THREAD | 50001- | |
| 30 | 01508-21610 | NUT,L.H. THREAD | 50001- | |
| 31 | 04211-21688 | YOKE | 50001- | |
| 32 | 01582-11613 | NUT | 50001- | |
| 33 | 04205-11645 | PIN | 50001- | |
| 34 | 01641-21626 | WASHER | 50001- | |
| 35 | 04050-14025 | PIN,COTTER | 50001- |
