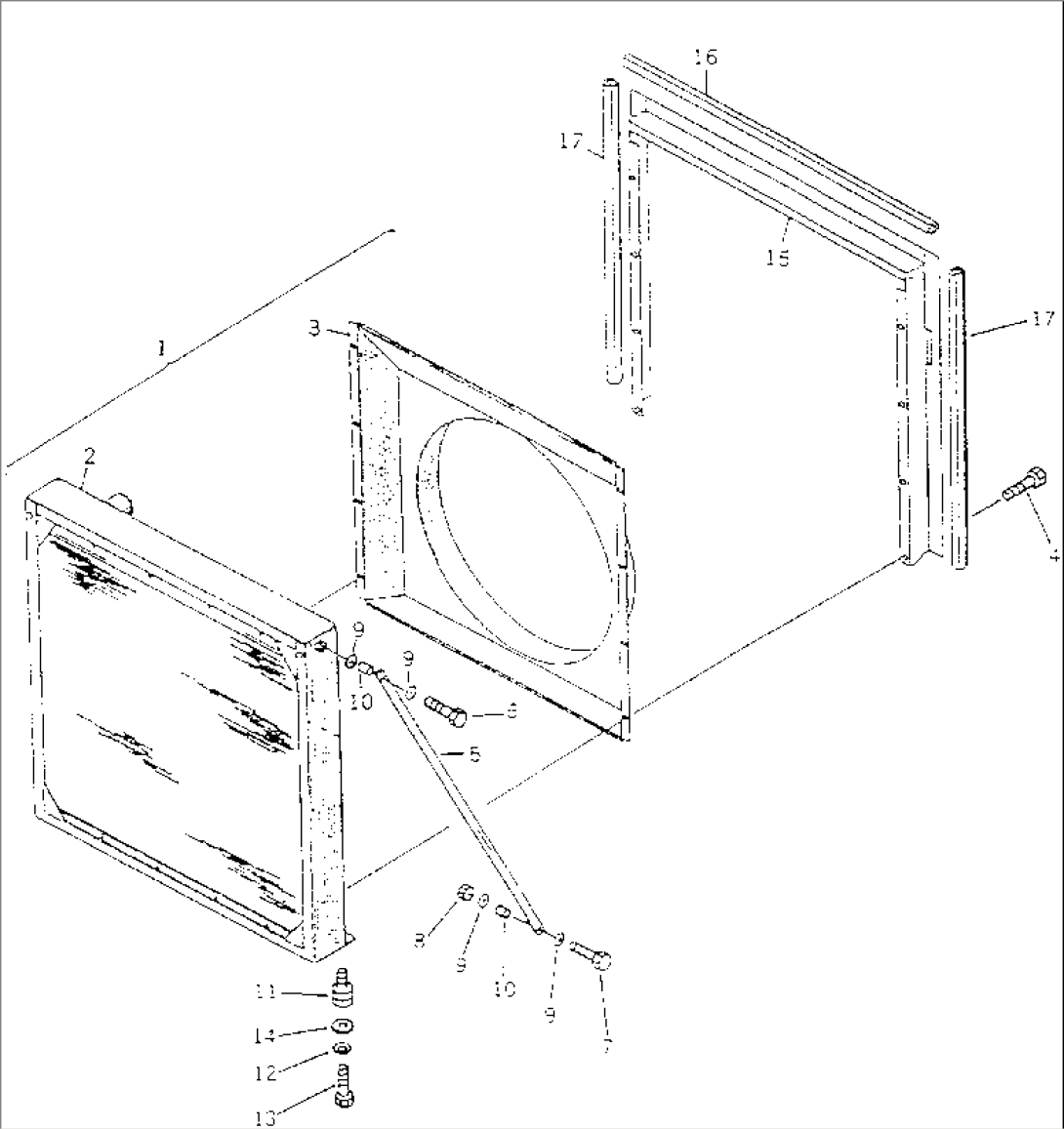

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BW251234 | RADIATOR ASS'Y | 303001- | |
| 2 | BW251323 | RADIATOR | 303001- | |
| 3 | BW251324 | SHROUD,FAN | 303001- | |
| 4 | BW061472 | SCREW,(M8X12) | 303001- | |
| 5 | BW035063 | STAY | 303028- | |
| 5 | BW034741 | STAY | 303001-303027 | |
| 6 | BW061487 | BOLT,(M10X25) | 303001- | |
| 7 | BW052518 | BOLT,(M10X35) | 303062- | |
| 7 | \0\BW061489 | BOLT,(M10X35) | 303001-303061 | |
| 8 | BW063039 | NUT | 303001- | |
| 9 | BW063348 | WASHER | 303001- | |
| 10 | BW045766 | SLEEVE | 303001- | |
| 11 | BW151975 | CUSHION,RUBBER | 303001- | |
| 12 | BW063391 | WASHER | 303001- | |
| 13 | BW060483 | BOLT,(M12X55) | 303001- | |
| 14 | BW045789 | SHIM, 1.65MM | 303001- | |
| 15 | BW011563 | COVER,FAN SHROUD | 303001- | |
| 16 | BW045978 | GASKET,(L=965) | 303001- | |
| 17 | BW045979 | GASKET,(L=820) | 303001- |
