| Item | Part No. | Part Name | Qty | Serial No. |

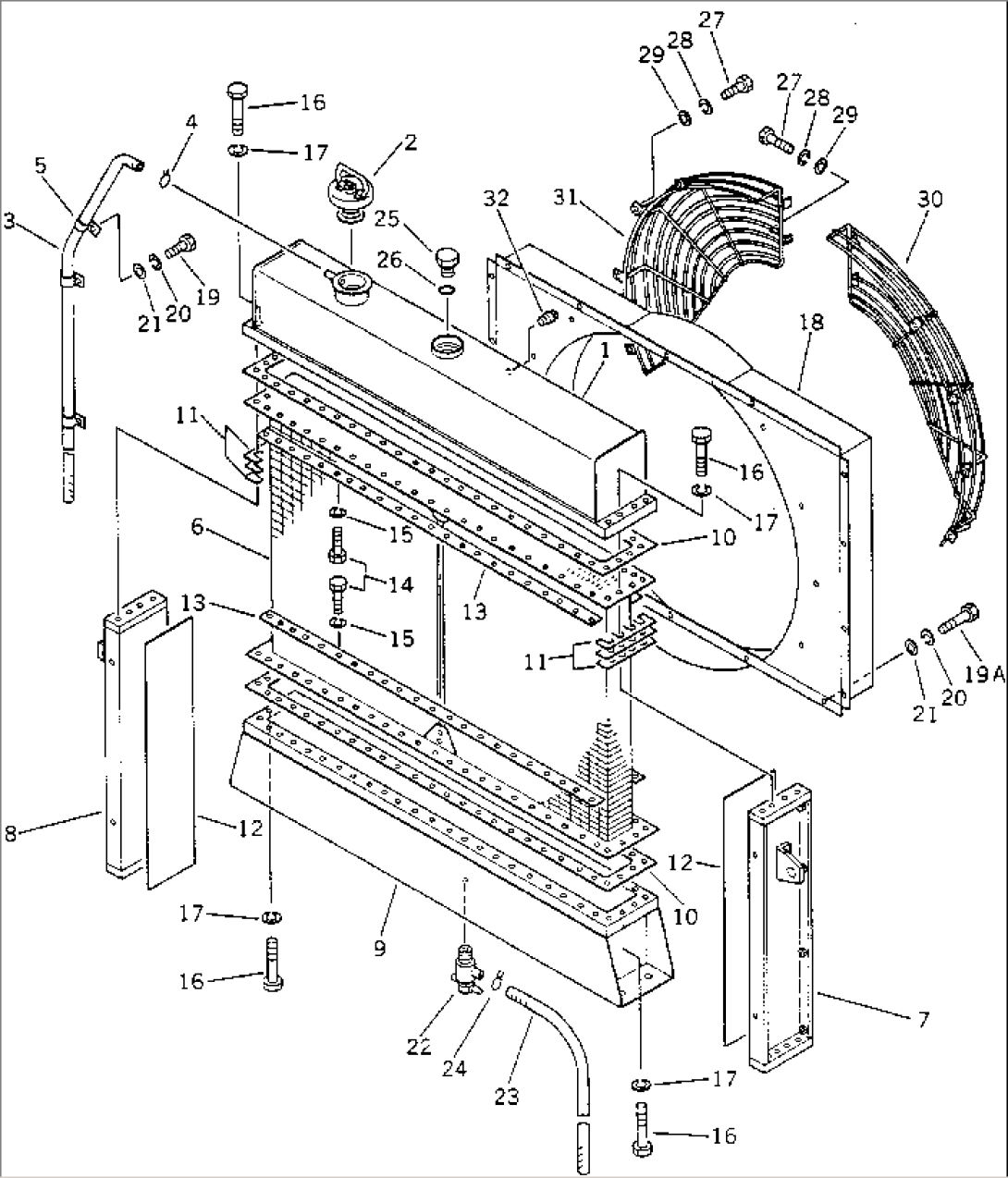

| 566-03-41001 | RADIATOR ASS'Y | 1501- | ||
| 1 | 566-03-41110 | TANK,UPPER | 1501- | |
| 2 | 566-03-11540 | CAP | 1501- | |
| 3 | 566-03-11241 | TUBE | 1501- | |
| 4 | 04059-01010 | WIRE | 1501- | |
| 5 | 195-03-11690 | CLIP | 1501- | |
| 6 | 566-03-41210 | CORE | 1501- | |
| 7 | 566-03-41120 | SUPPORT,FRAME | 1501- | |
| 8 | 566-03-41130 | SUPPORT,FRAME | 1501- | |
| 9 | 566-03-41310 | TANK,LOWER | 1501- | |
| 10 | 566-03-41140 | GASKET | 1501- | |
| 11 | 566-03-41160 | SHIM, 0.6MM | 1501- | |
| 12 | 566-03-41170 | CUSHION | 1501- | |
| 13 | 566-03-11451 | PLATE | 1501- | |
| 14 | 01010-51025 | BOLT | 1501- | |
| 15 | 01602-21030 | WASHER,SPRING | 1501- | |
| 16 | 01010-51265 | BOLT | 1501- | |
| 17 | 01602-21236 | WASHER,SPRING | 1501- | |
| 18 | 566-03-41151 | SHROUD | 1501- | |
| 19 | 01010-51025 | BOLT | 1501- | |
| 19A | 01010-51016 | BOLT | 1501- | |
| 20 | 01602-21030 | WASHER,SPRING | 1501- | |
| 21 | 01643-31032 | WASHER | 1501- | |
| 22 | 195-03-13241 | VALVE,DRAIN | 1501- | |
| 23 | 07270-01515 | TUBE | 1501- | |
| 24 | 04059-01010 | WIRE | 1501- | |
| 25 | 07040-13618 | PLUG | 1501- | |
| 26 | 07002-03634 | O-RING | 1501- | |
| 27 | 01010-51025 | BOLT | 1501- | |
| 28 | 01602-21030 | WASHER,SPRING | 1501- | |
| 29 | 01643-31032 | WASHER | 1501- | |
| 30 | 566-03-41181 | NET,L.H. | 1501- | |
| 31 | 566-03-41191 | NET,R.H. | 1501- | |
| 32 | 07042-10211 | PLUG | 1501- |
