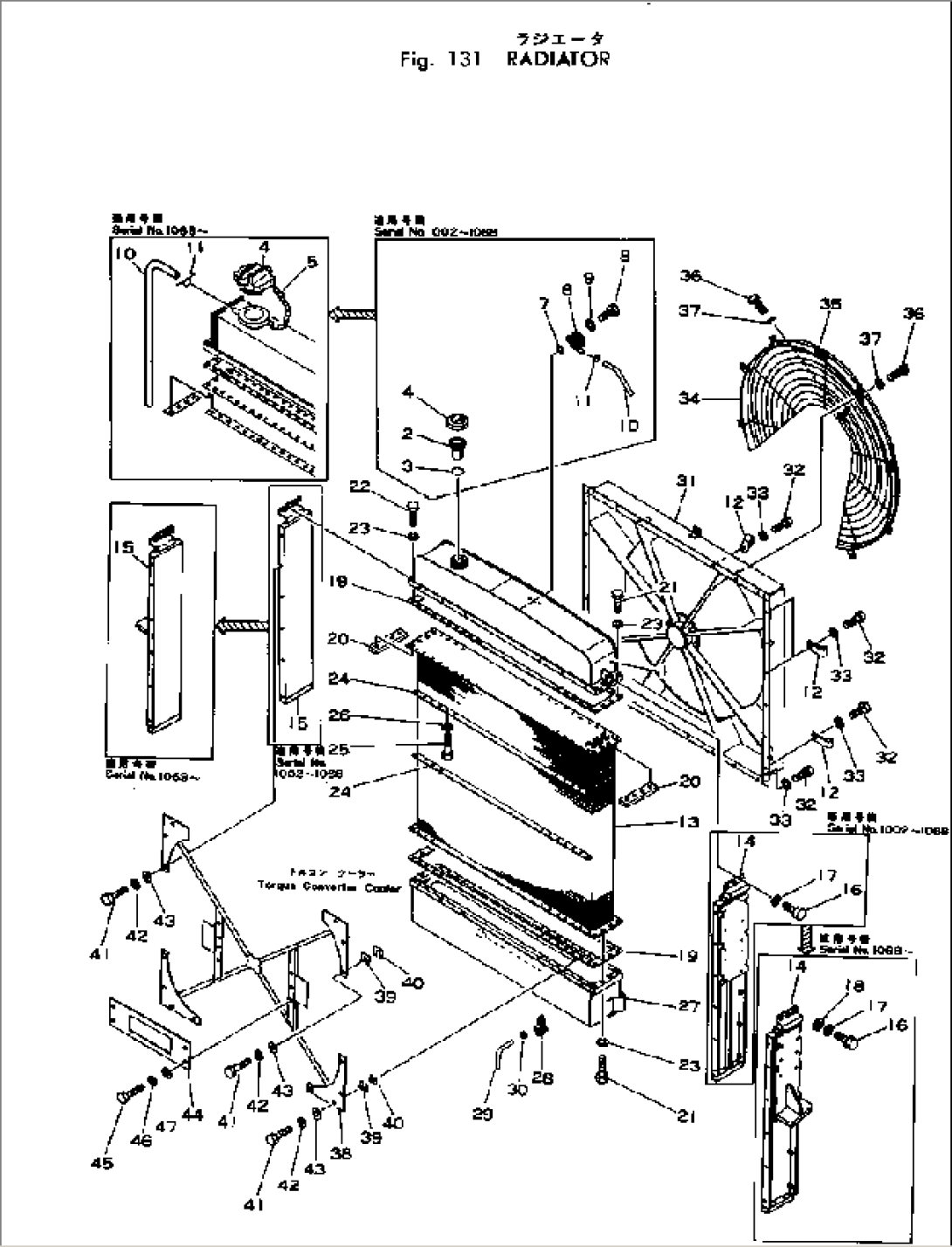

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-03-11003 | RADIATOR ASS'Y | 1069- | ||
| \0\569-03-11002 | RADIATOR ASS'Y | 1002-1068 | ||
| 1 | 569-03-11310 | TANK | 1069- | |
| 1 | 568-03-21312 | TANK | 1039-1068 | |
| 1 | \0\568-03-21311 | TANK | 1002-1038 | |
| 2 | 07056-00048 | STRAINER | 1002-1068 | |
| 3 | 07057-03271 | RING | 1002-1068 | |
| 4 | 566-03-11540 | CAP | 1069- | |
| 4 | 07053-10000 | CAP | 1002-1068 | |
| 5 | 566-95-37320 | CHAIN | 1069- | |
| 6 | 154-03-11681 | VALVE | 1002-1068 | |
| 7 | 07000-03045 | O-RING | 1002-1068 | |
| 8 | 01010-51020 | BOLT | 1002-1068 | |
| 9 | 01602-21030 | WASHER | 1002-1068 | |
| 10 | 566-03-11241 | TUBE | 1069- | |
| 10 | 566-03-11240 | TUBE | 1002-1068 | |
| 11 | 04059-01010 | WIRE | 1002- | |
| 12 | 195-03-11690 | CLIP | 1069- | |
| 12 | 195-03-11690 | CLIP | 1002-1068 | |
| 13 | 569-03-11130 | CORE | 1069- | |
| 13 | \0\566-03-11131 | CORE | 1002-1068 | |
| 14 | 569-03-11330 | SUPPORT | 1069- | |
| 14 | 569-03-11121 | SUPPORT | 1002-1068 | |
| 15 | 569-03-11320 | SUPPORT | 1069- | |
| 15 | 569-03-11121 | SUPPORT | 1002-1068 | |
| 16 | 01010-51230 | BOLT | 1002- | |
| 17 | 01602-21236 | WASHER | 1002- | |
| 18 | 01643-31232 | WASHER | 1002- | |
| 19 | 566-03-11151 | GASKET | 1002- | |
| 20 | 569-03-11240 | PLATE | 1002- | |
| 21 | 01010-51255 | BOLT | 1069- | |
| 21 | 01010-51250 | BOLT | 1002-1068 | |
| 22 | 01010-51265 | BOLT | 1069- | |
| 22 | 01010-51260 | BOLT | 1002-1068 | |
| 23 | 01602-21236 | WASHER | 1002- | |
| 24 | 566-03-11451 | PLATE | 1002- | |
| 25 | 01010-51025 | BOLT | 1002- | |
| 26 | 01602-21030 | WASHER | 1002- | |
| 27 | 569-03-11210 | TANK | 1002- | |
| 28 | 195-03-13241 | VALVE | 1002- | |
| 29 | 07270-01515 | TUBE | 1002- | |
| 30 | 04059-01010 | WIRE | 1002- | |
| 31 | 569-03-11110 | GUARD | 1002- | |
| 32 | 01010-51225 | BOLT | 1002- | |
| 33 | 01602-21236 | WASHER | 1002- | |
| 34 | 569-03-11140 | NET,LH | 1002- | |
| 35 | 569-03-11150 | NET | 1002- | |
| 36 | 01010-51225 | BOLT | 1002- | |
| 37 | 01602-21236 | WASHER | 1002- | |
| 38 | 569-03-12311 | STAY | 1031- | |
| 39 | 569-03-12320 | SHIM, 0.8MM | 1002- | |
| 40 | 569-03-12330 | SHIM, 0.5MM | 1002- | |
| 41 | 01010-51230 | BOLT | 1002- | |
| 42 | 01602-21236 | WASHER | 1002- | |
| 43 | 01643-31232 | WASHER | 1002- | |
| 44 | 569-03-12340 | PLATE | 1002- | |
| 45 | 01010-50620 | BOLT | 1002- | |
| 46 | 01602-20619 | WASHER | 1002- | |
| 47 | 01642-20608 | WASHER | 1002- |
