| Item | Part No. | Part Name | Qty | Serial No. |

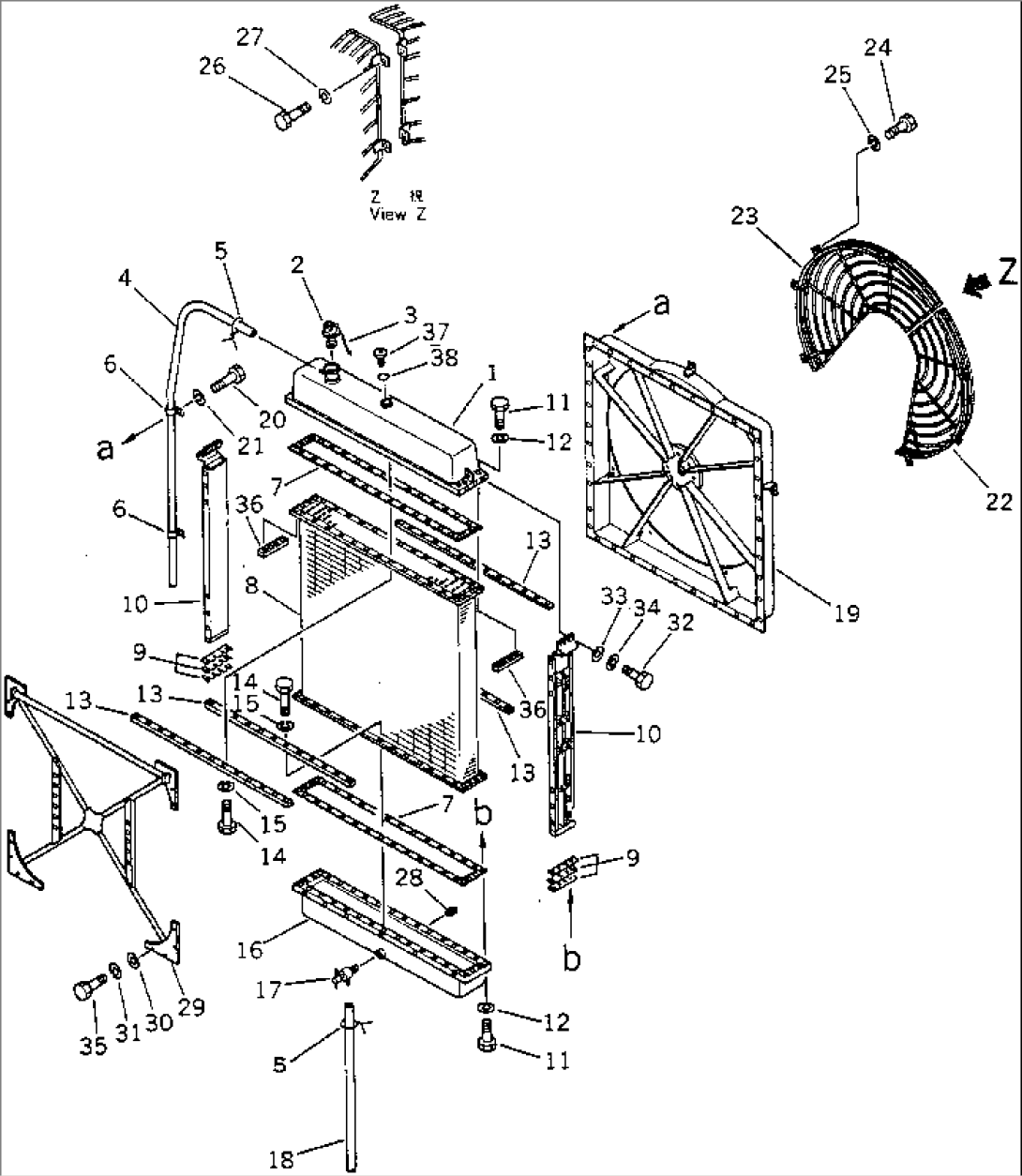

| 568-03-21304 | RADIATOR ASS'Y | 1002- | ||
| 1 | 569-03-11311 | TANK | 1002- | |
| 2 | 566-03-11540 | CAP | 1002- | |
| 3 | 566-95-37320 | CHAIN | 1002- | |
| 4 | 566-03-11241 | TUBE | 1002- | |
| 5 | 04059-01010 | WIRE | 1002- | |
| 6 | 195-03-11690 | CLIP | 1002- | |
| 7 | 566-03-11151 | GASKET | 1002- | |
| 8 | 568-03-21341 | CORE | 1002- | |
| 9 | 566-03-11160 | SHIM, 0.6MM | 1002- | |
| 10 | 568-03-21331 | SUPPORT | 1002- | |
| 11 | 01010-51260 | BOLT | 1002- | |
| 12 | 01602-21236 | WASHER | 1002- | |
| 13 | 566-03-11451 | PLATE | 1002- | |
| 14 | 01010-51025 | BOLT | 1002- | |
| 15 | 01602-21030 | WASHER | 1002- | |
| 16 | 568-03-21320 | TANK | 1002- | |
| 17 | 195-03-13241 | VALVE | 1002- | |
| 18 | 07270-01515 | TUBE | 1002- | |
| 19 | 568-03-21351 | GUARD | 1002- | |
| 20 | 01010-51230 | BOLT | 1002- | |
| 21 | 01602-21236 | WASHER | 1002- | |
| 22 | 568-03-21360 | NET | 1002- | |
| 23 | 568-03-21370 | NET | 1002- | |
| 24 | 01010-51225 | BOLT | 1002- | |
| 25 | 01602-21236 | WASHER | 1002- | |
| 26 | 01010-51225 | BOLT | 1002- | |
| 27 | 01602-21236 | WASHER | 1002- | |
| 28 | 07042-20415 | PLUG | 1002- | |
| 29 | 568-03-21611 | STAY | 1002- | |
| 30 | 01643-31232 | WASHER | 1002- | |
| 31 | 01602-21236 | WASHER | 1002- | |
| 32 | 01010-51225 | BOLT | 1002- | |
| 33 | 01643-31232 | WASHER | 1002- | |
| 34 | 01602-21236 | WASHER | 1002- | |
| 35 | 01010-51240 | BOLT | 1002- | |
| 36 | 569-03-11240 | PLATE | 1002- | |
| 37 | 07040-13618 | PLUG | 1002- | |
| 38 | 07002-13634 | O-RING | 1002- |
