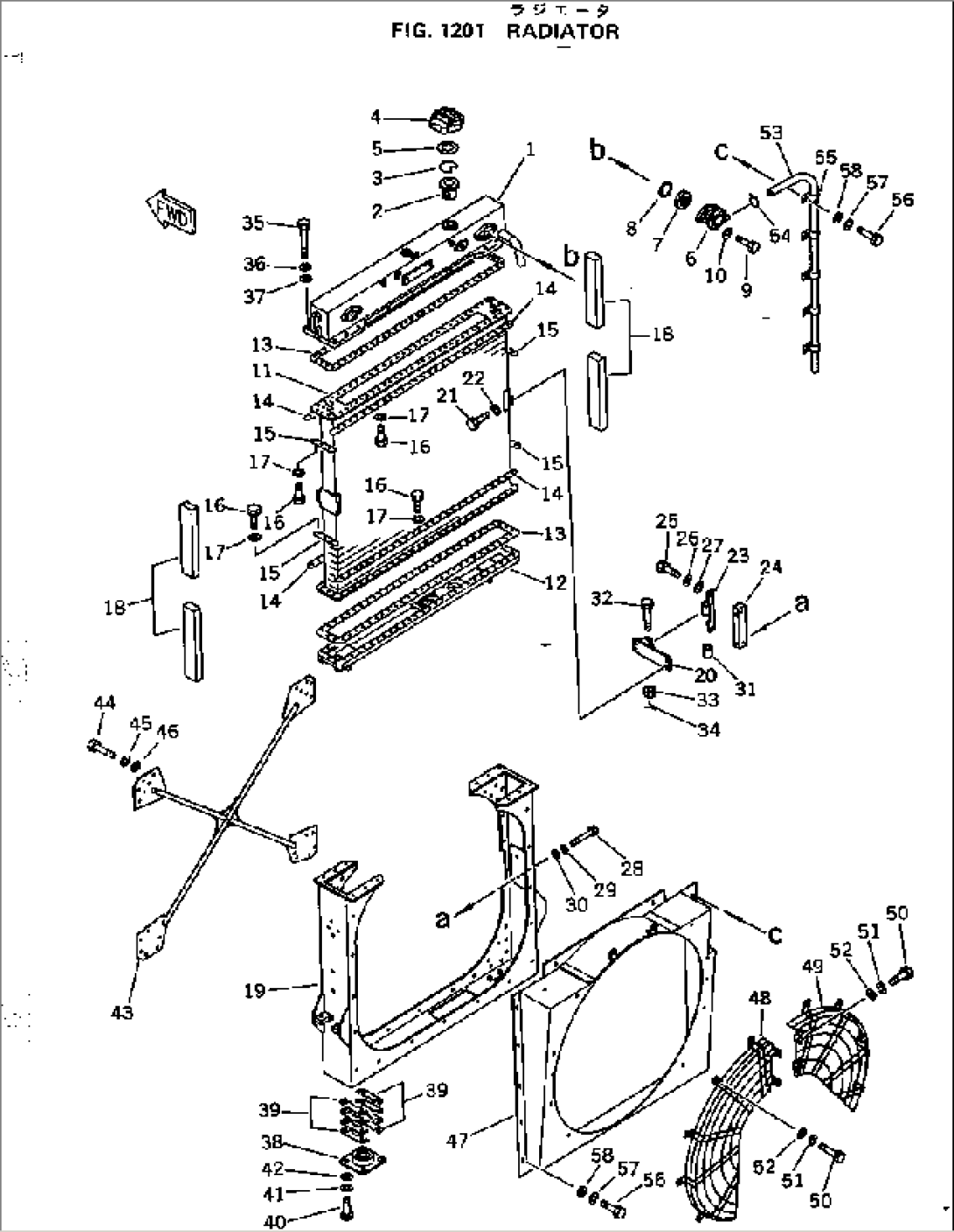

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-03-41001 | RADIATOR ASS'Y,(FOR CLUSTER GAUGE) | 1501- | ||
| 561-03-41600 | RADIATOR ASS'Y,(FOR MONITOR PANEL) | 1501- | ||
| 1 | 561-03-41421 | TANK,(FOR CLUSTER GAUGE) | 1501- | |
| 1 | 561-03-41620 | TANK,(FOR MONITOR PANEL) | 1501- | |
| 2 | 07056-00048 | STRAINER | 1501- | |
| 3 | 07057-03271 | RING | 1501- | |
| 4 | 07053-10000 | CAP | 1501- | |
| 5 | 07053-00002 | GASKET | 1501- | |
| 6 | 581-03-11280 | VALVE | 1501- | |
| 7 | 175-03-32570 | SCREEN | 1501- | |
| 8 | 07000-43045 | O-RING | 1501- | |
| 9 | 01010-51025 | BOLT | 1501- | |
| 10 | 01602-21030 | WASHER | 1501- | |
| 11 | 561-03-31130 | CORE | 1501- | |
| 12 | 581-03-11132 | TANK | 1501- | |
| 13 | 581-03-11141 | GASKET | 1501- | |
| 14 | 581-03-11151 | PLATE | 1501- | |
| 15 | 195-03-11143 | PLATE | 1501- | |
| 16 | 01010-51030 | BOLT | 1501- | |
| 17 | 01602-21030 | WASHER | 1501- | |
| 18 | 581-03-11290 | PACKING | 1501- | |
| 19 | 561-03-31260 | FRAME | 1501- | |
| 20 | 581-03-11310 | BRACKET | 1501- | |
| 21 | 01010-51225 | BOLT | 1501- | |
| 22 | 01602-21236 | WASHER | 1501- | |
| 23 | 198-03-21330 | BRACKET | 1501- | |
| 24 | 198-03-21251 | SEAT | 1501- | |
| 25 | 01010-51230 | BOLT | 1501- | |
| 26 | 01602-21236 | WASHER | 1501- | |
| 27 | 01643-31232 | WASHER | 1501- | |
| 28 | 01010-51245 | BOLT | 1501- | |
| 29 | 01602-21236 | WASHER | 1501- | |
| 30 | 01643-31232 | WASHER | 1501- | |
| 31 | 198-03-21350 | BUSHING | 1501- | |
| 32 | 01092-51490 | BOLT | 1501- | |
| 33 | 01593-11411 | NUT | 1501- | |
| 34 | 04050-13022 | PIN | 1501- | |
| 35 | 01010-51665 | BOLT | 1501- | |
| 36 | 01602-21648 | WASHER | 1501- | |
| 37 | 01643-31645 | WASHER | 1501- | |
| 38 | 198-03-21210 | ISOLATOR | 1501- | |
| 39 | 198-03-21230 | SHIM, 0.5MM | 1501- | |
| 39 | 198-03-21220 | SHIM, 1.0MM | 1501- | |
| 40 | 01010-51440 | BOLT | 1501- | |
| 41 | 01602-21442 | WASHER | 1501- | |
| 42 | 01643-31445 | WASHER | 1501- | |
| 43 | 561-03-31110 | STAY | 1501- | |
| 44 | 01010-51230 | BOLT | 1501- | |
| 45 | 01602-21236 | WASHER | 1501- | |
| 46 | 01643-31232 | WASHER | 1501- | |
| 47 | 561-03-41481 | SHROUD | 1501- | |
| 48 | 561-03-41491 | NET | 1501- | |
| 49 | 561-03-41511 | NET | 1501- | |
| 50 | 01010-51230 | BOLT | 1501- | |
| 51 | 01602-21236 | WASHER | 1501- | |
| 52 | 01643-31232 | WASHER | 1501- | |
| 53 | 581-03-11222 | PIPE | 1501- | |
| 54 | 04059-01010 | WIRE | 1501- | |
| 55 | 195-03-11690 | CLIP | 1501- | |
| 56 | 01010-51230 | BOLT | 1501- | |
| 57 | 01602-21236 | WASHER | 1501- | |
| 58 | 01643-31232 | WASHER | 1501- |
