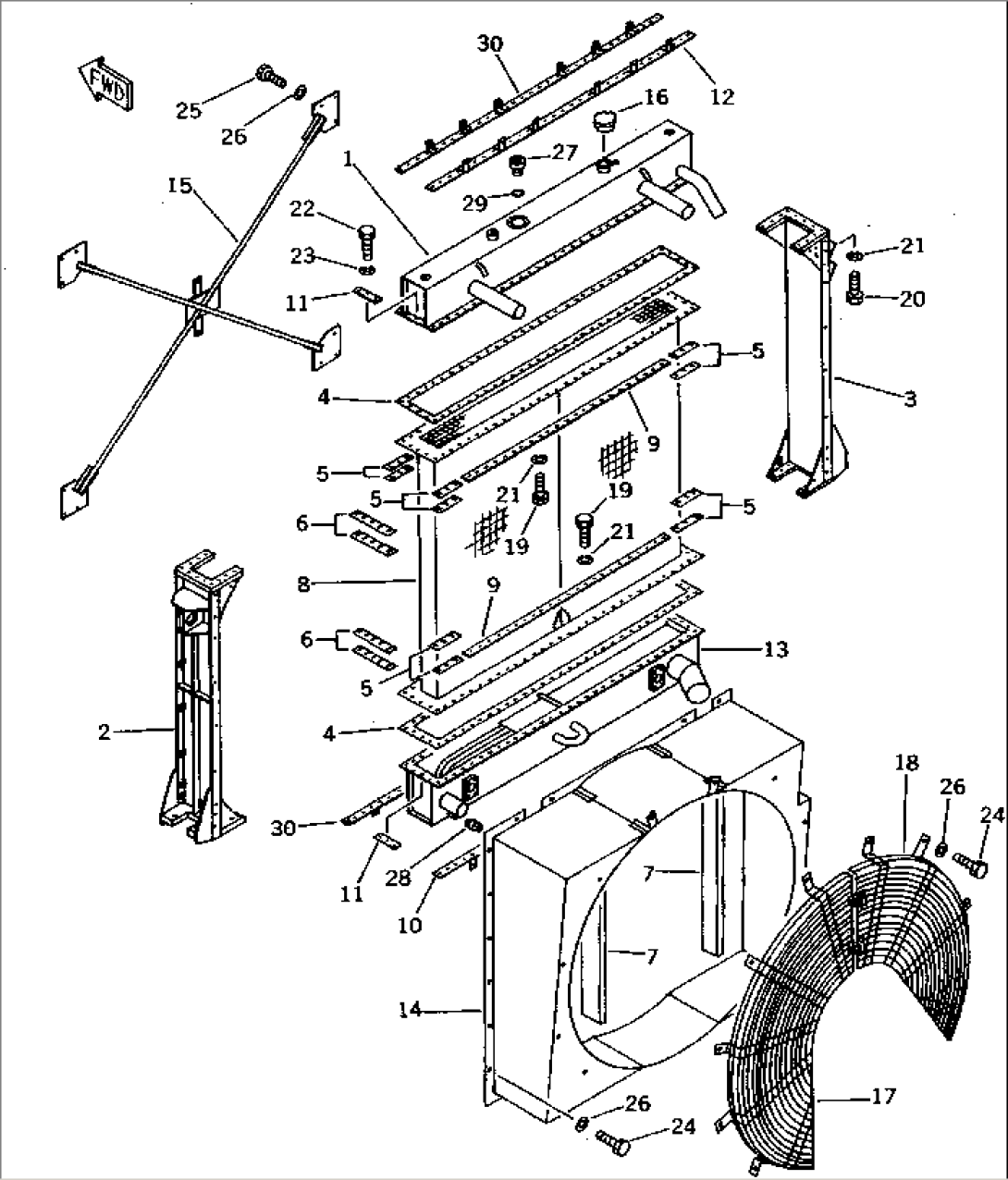

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-03-61102 | RADIATOR ASS'Y | | 2001-2165 |
| (\2\561-03-61101) | RADIATOR ASS'Y | | (2001-2078) |
| 561-03-64102 | RADIATOR ASS'Y,(WITH SAE NET) | | 2001- |
| (\2\561-03-64101) | RADIATOR ASS'Y,(WITH SAE NET) | | (2001-..) |
| (\2\561-03-64100) | RADIATOR ASS'Y,(WITH SAE NET) | | (2001-.) |
| 561-03-64202 | RADIATOR ASS'Y,(FOR LARGE FAN) | | 2001- |
| (\2\561-03-64201) | RADIATOR ASS'Y,(FOR LARGE FAN) | | (2001-..) |
| (\2\561-03-64200) | RADIATOR ASS'Y,(FOR LARGE FAN) | | (2001-.) |
| 1 | 561-03-61112 | TANK | | 2001- |
| 2 | 561-03-61122 | SUPPORT,L.H. | | 2001- |
| (\2\561-03-61121) | SUPPORT,L.H. | | (2001-2078) |
| 3 | 561-03-61132 | SUPPORT,R.H. | | 2001- |
| (\2\561-03-61131) | SUPPORT,R.H. | | (2001-2078) |
| 4 | 561-03-61141 | GASKET | | 2001- |
| 5 | 561-03-61151 | SHIM | | 2001- |
| (\2\561-03-61150) | SHIM | | (2001-2078) |
| 6 | 561-03-61160 | SHIM | | 2001- |
| 7 | 561-03-61170 | PACKING | | 2001- |
| 8 | 561-03-61212 | CORE | | 2001- |
| (\2\561-03-61211) | CORE | | (2001-2078) |
| 9 | 561-03-61221 | PLATE | | 2001- |
| 10 | 561-03-61242 | PLATE | | 2001- |
| 11 | 561-03-61250 | PLATE | | 2001- |
| 12 | 561-03-61260 | PLATE | | 2001- |
| 13 | 561-03-61312 | TANK,LOWER | | 2001- |
| 14 | 561-03-61412 | SHROUD | | 2001- |
| 561-03-64230 | SHROUD,(FOR LARGE FAN) | | 2001- |
| 15 | 561-03-61450 | STAY,(FOR LARGE FAN) | | 2001- |
| 16 | 561-03-61511 | CAP,PRESSURE | | 2001- |
| (\2\561-03-61510) | CAP,PRESSURE | | (2001-.) |
| 17 | 561-03-41491 | NET,L.H. | | 2001-2165 |
| 561-03-64110 | NET,L.H. (SAE SPEC.) | | 2001- |
| 561-03-64211 | NET,L.H. (FOR LARGE FAN¤SAE SPEC.) | | 2001- |
| 561-03-64210 | NET,L.H. (FOR LARGE FAN) | | 2001- |
| 18 | 561-03-41511 | NET,R.H. | | 2001-2165 |
| 561-03-64120 | NET,R.H. (SAE SPEC.) | | 2001- |
| 561-03-64221 | NET,R.H. (FOR LARGE FAN¤SAE SPEC.) | | 2001- |
| 561-03-64220 | NET,R.H. (FOR LARGE FAN) | | 2001- |
| 19 | 01010-51030 | BOLT | | 2001- |
| 20 | 01010-51040 | BOLT | | 2001- |
| 21 | 01602-21030 | WASHER,SPRING | | 2001- |
| 22 | 01010-51235 | BOLT | | 2001- |
| 23 | 01602-21236 | WASHER | | 2001- |
| 24 | 01010-51225 | BOLT | | 2001- |
| 25 | 01010-51230 | BOLT | | 2001- |
| 26 | 01643-31232 | WASHER | | 2001- |
| 27 | 07040-13618 | PLUG | | 2001- |
| 28 | 07042-20415 | PLUG | | 2001- |
| 29 | 07002-03634 | O-RING | | 2001- |
| 30 | 561-03-61270 | PLATE | | 2001- |
