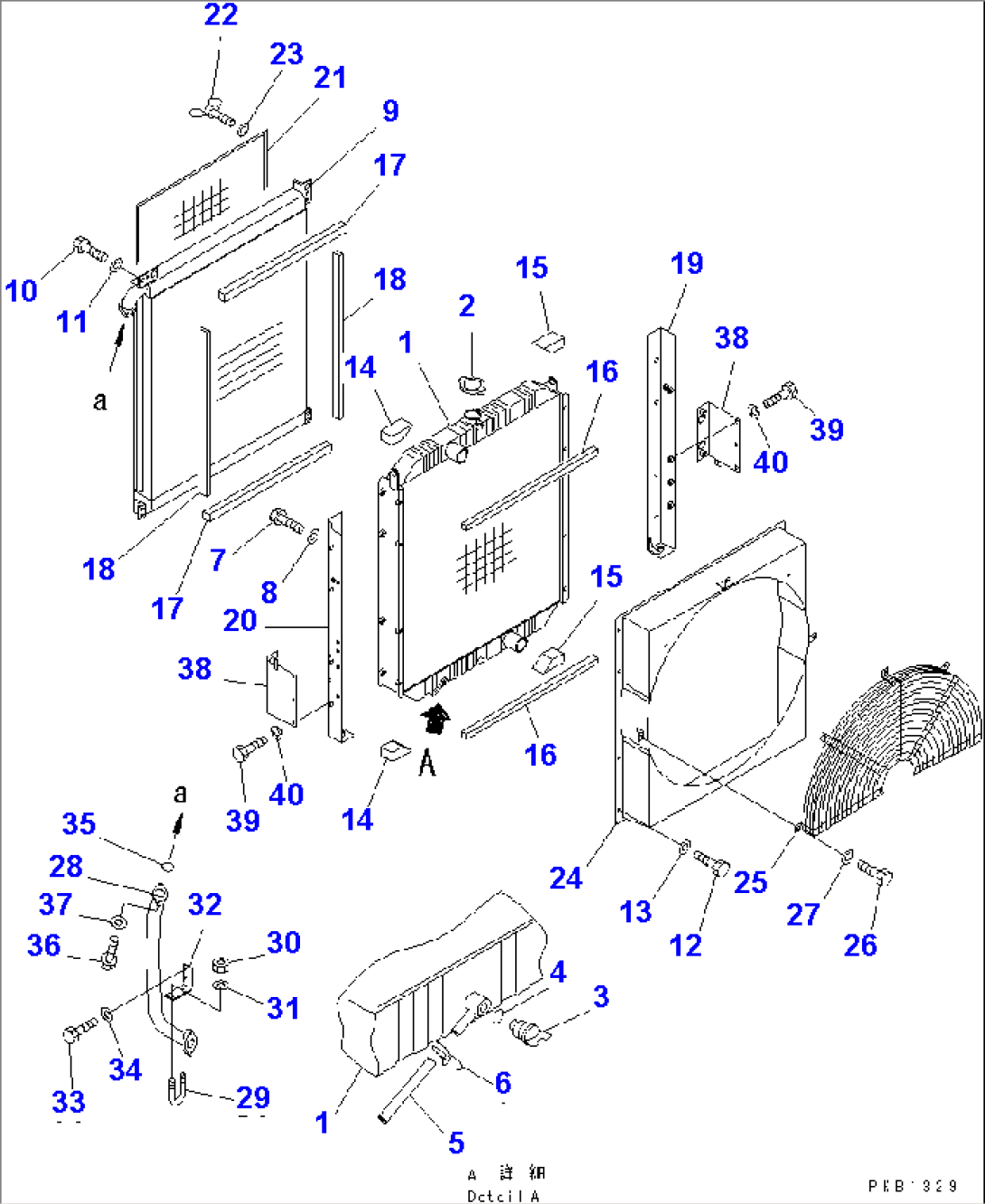

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-03-51111 | CORE ASS'Y | 1001- | |
| 2 | 205-03-71280 | CAP ASS'Y | 1001- | |
| 3 | 205-03-62660 | PLUG | 1001- | |
| 4 | 07000-01007 | O-RING | 1001- | |
| 5 | 205-03-71230 | HOSE | 1001- | |
| 6 | 20Y-03-11330 | CLIP | 1001- | |
| 7 | 01010-51225 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 207-03-61110 | OIL COOLER ASS'Y | 1001- | |
| 10 | 01010-51225 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 01010-51225 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 207-03-51171 | SEAL | 1001- | |
| 15 | 207-03-51181 | SEAL | 1001- | |
| 16 | 207-03-51191 | SHEET | 1001- | |
| 17 | 207-03-51211 | SEAL | 1001- | |
| 18 | 207-03-51450 | SHEET | 1001- | |
| 19 | 207-03-61120 | FRAME | 1001- | |
| 20 | 207-03-61130 | FRAME | 1001- | |
| 21 | 208-03-52272 | NET | 1001- | |
| 22 | 01434-10620 | BOLT¤ WING | 1001- | |
| 23 | 01643-30623 | WASHER | 1001- | |
| 24 | 207-03-61142 | SHROUD | 1001- | |
| \0\207-03-61141 | SHROUD | 1001- | ||
| 25 | 207-03-61151 | GUARD | 1001- | |
| 26 | 01010-51225 | BOLT | 1001- | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 207-03-61211 | TUBE | 1001- | |
| 29 | 07283-24949 | CLIP | 1001- | |
| 30 | 01599-01011 | NUT | 1001- | |
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 207-03-61190 | PLATE | 1001- | |
| 33 | 01010-51025 | BOLT | 1001- | |
| 34 | 01643-31032 | WASHER | 1001- | |
| 35 | 07000-03045 | O-RING | 1001- | |
| 36 | 01010-51240 | BOLT | 1001- | |
| 37 | 01643-51232 | WASHER | 1001- | |
| 38 | 207-03-61160 | BRACKET | 1001- | |
| 39 | 01010-51025 | BOLT | 1001- | |
| 40 | 01643-31032 | WASHER | 1001- |
