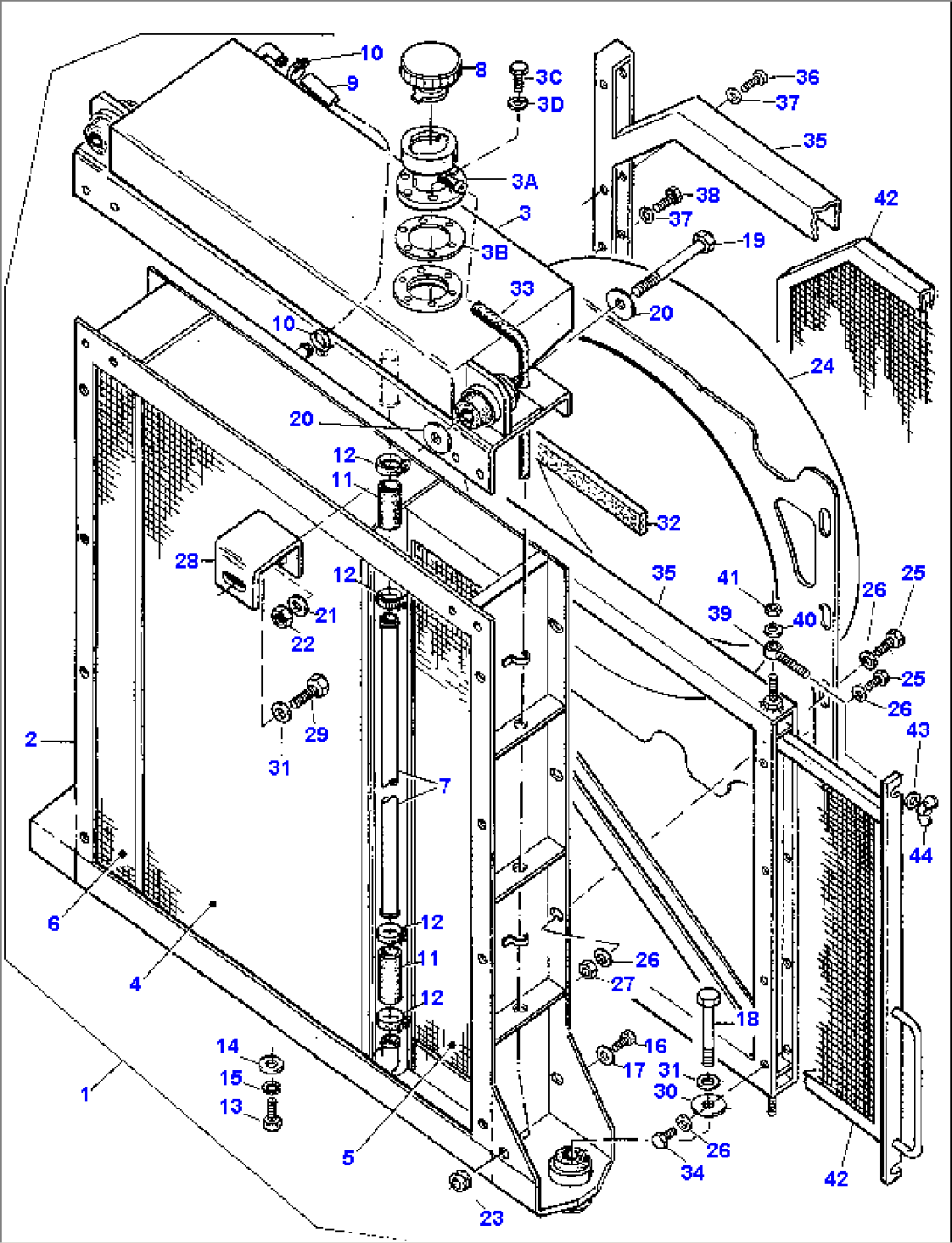

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 4220580M92 | COOLER | ||
| 2 | 4910504M91 | FRAME | ||
| 3 | 4910505M91 | EXPANSION TANK | ||
| 3A | 3232401M1 | FILLER | ||
| 3B | 4917896M1 | GASKET | ||
| 3C | 339560X1 | SCREW | ||
| 3D | 1444355X1 | PLAIN WASHER | ||
| 4 | 4910506M91 | COOLER ELEMENT | ||
| 5 | 3235403M91 | COOLER ELEMENT | ||
| 6 | 4910507M91 | COOLER ELEMENT | ||
| 7 | 3235405M1 | TUBE | ||
| 8 | 2995266X1 | COVER | ||
| 9 | 3000409X1 | HOSE | ||
| 10 | 3005069X1 | CLIP | ||
| 11 | 2999635M1 | HOSE | ||
| 12 | 1444839X1 | CLIP | ||
| 13 | 390680X1 | SCREW | ||
| 14 | 391039X1 | PLAIN WASHER | ||
| 15 | 1443789X1 | SPRING WASHER | ||
| 16 | 390680X1 | SCREW | ||
| 17 | 3067846M8 | PLAIN WASHER | ||
| 18 | 3002816X1 | SCREW | ||
| 19 | 391673X1 | SCREW | ||
| 20 | 2948080M1 | DISC | ||
| 21 | 390735X1 | PLAIN WASHER | ||
| 22 | 1444330X1 | NUT | ||
| 23 | 2999510M1 | SPOUT | ||
| 24 | 4220670M91 | FAN SHELL | ||
| 25 | 339123X1 | SCREW | ||
| 26 | 390972X1 | PLAIN WASHER | ||
| 27 | 1444329X1 | NUT | ||
| 28 | 4200320M1 | BRACKET | ||
| 29 | 1444138X1 | SCREW | ||
| 30 | 2948080M1 | DISC | ||
| 31 | 390735X1 | PLAIN WASHER | ||
| 32 | 4202437M1 | GASKET | ||
| 33 | 2977938M91 | HOSE | ||
| 34 | 339761X1 | SCREW | ||
| 35 | 4220690M91 | FRAME | ||
| 36 | 390246X1 | SCREW | ||
| 37 | 390972X1 | PLAIN WASHER | ||
| 38 | 339132X1 | SCREW | ||
| 39 | 1444210X1 | EYE BOLT | ||
| 40 | 390734X1 | PLAIN WASHER | ||
| 41 | 1444331X1 | NUT | ||
| 42 | 4220253M92 | SIEVE | ||
| 43 | 390597X1 | PLAIN WASHER | ||
| 44 | 1444347X1 | WING NUT |
