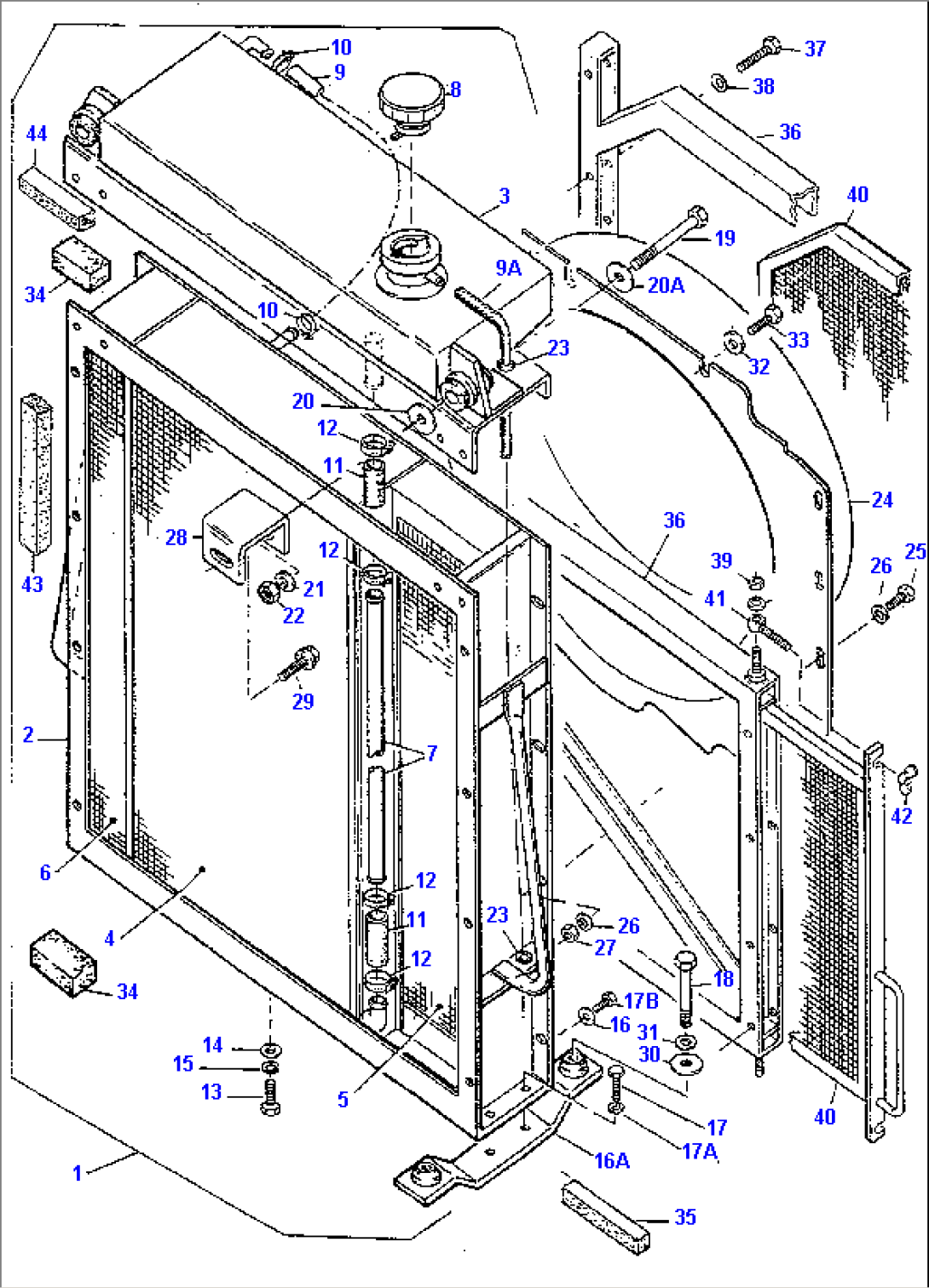

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 4245452M91 | COOLER | ||
| 2 | 4916605M91 | FRAME | ||
| 3 | 4916606M91 | CONTAINER | ||
| 4 | 4916607M91 | COOLER ELEMENT | ||
| 5 | 4916608M91 | COOLER ELEMENT | ||
| 6 | 3232419M91 | COOLER ELEMENT | ||
| 7 | 4916609M1 | TUBE | ||
| 8 | 4907917M1 | COVER | ||
| 9 | 3000409X1 | HOSE | ||
| 9A | 2977938M91 | HOSE | ||
| 10 | 3005069X1 | CLIP | ||
| 11 | 3001386X1 | HOSE | ||
| 12 | 1444839X1 | CLIP | ||
| 13 | 4907922M1 | SCREW | ||
| 14 | 391039X1 | PLAIN WASHER | ||
| 15 | 1440313X1 | SPRING WASHER | ||
| 16 | 3067846M8 | PLAIN WASHER | ||
| 16A | 4916610M91 | SUPPORT | ||
| 17 | 1441928X1 | SCREW | ||
| 17A | 390734X1 | PLAIN WASHER | ||
| 17B | 3002007X1 | SCREW | ||
| 18 | 339556X1 | SCREW | ||
| 19 | 391673X1 | SCREW | ||
| 20 | 2948080M1 | DISC | ||
| 20A | 4202246M1 | DISC | ||
| 21 | 390735X1 | PLAIN WASHER | ||
| 22 | 1444330X1 | NUT | ||
| 23 | 2999510M1 | SPOUT | ||
| 24 | 4245985M1 | FAN SHELL | ||
| 25 | 339123X1 | SCREW | ||
| 26 | 2994118M1 | DISC | ||
| 27 | 1444329X1 | NUT | ||
| 28 | 4200320M1 | BRACKET | ||
| 29 | 1444138X1 | SCREW | ||
| 30 | 2963174M1 | PLAIN WASHER | ||
| 31 | 390597X1 | PLAIN WASHER | ||
| 32 | 391039X1 | PLAIN WASHER | ||
| 33 | 339124X1 | SCREW | ||
| 34 | 4211186M1 | GASKET | ||
| 35 | 4245752M1 | GASKET | ||
| 36 | 4245486M92 | FRAME | ||
| 36A | 4246531M91 | FRAME | ||
| 37 | 2995530X1 | SCREW | ||
| 38 | 2993792X1 | SPRING WASHER | ||
| 39 | 390379X1 | SCREW | ||
| 40 | 4245498M91 | SIEVE | ||
| 40A | 4246532M91 | SIEVE | ||
| 41 | 390379X1 | SCREW | ||
| 42 | 1444347X1 | WING NUT | ||
| 43 | 4246312M1 | GASKET | ||
| 44 | 4246311M1 | GASKET |
