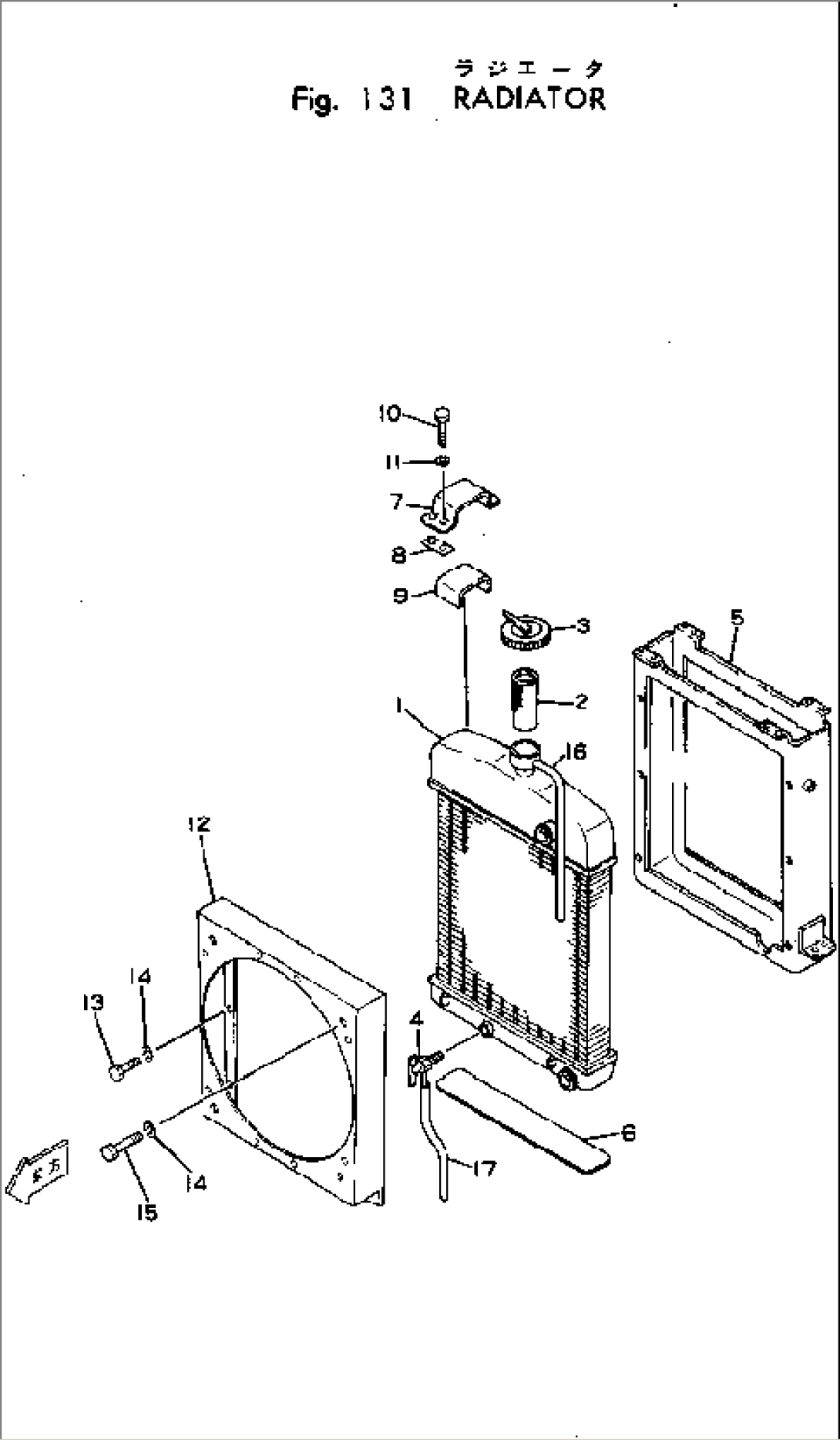

| Item | Part No. | Part Name | Qty | Serial No. |
| 385-10129191 | RADIATOR ASS'Y | 10015- | ||
| 385-10075701 | RADIATOR ASS'Y | 10001-10014 | ||
| 1 | 385-10081381 | CORE ASS'Y | 10001- | |
| 2 | 380-887220-1 | STRAINER | 10001- | |
| 3 | 385-10081401 | CAP | 10001- | |
| 4 | 385-10082711 | VALVE | 10015- | |
| 385-10081791 | VALVE | 10001-10014 | ||
| 5 | 385-10081371 | FRAME | 10001- | |
| 6 | 381-982889-1 | SEAT | 10001- | |
| 7 | 381-982890-1 | CLAMP | 10001- | |
| 8 | 380-888310-1 | SHIM¤ 0.6MM | 10001- | |
| 9 | 381-982891-1 | CUSHION | 10001- | |
| 10 | 382-025993-1 | BOLT | 10001- | |
| 11 | 384-0120638 | WASHER | 10001- | |
| 12 | 385-10129181 | SHROUD | 10015- | |
| 385-10081361 | SHROUD | 10001-10014 | ||
| 13 | 382-025770-1 | BOLT | 10001- | |
| 14 | 382-0131099 | WASHER | 10001- | |
| 15 | 382-025247-1 | BOLT | 10001- | |
| 382-025770-1 | BOLT | 10001-10014 | ||
| 16 | 385-10081781 | PIPE | 10001- | |
| 17 | 385-10081801 | PIPE | 10001- |
