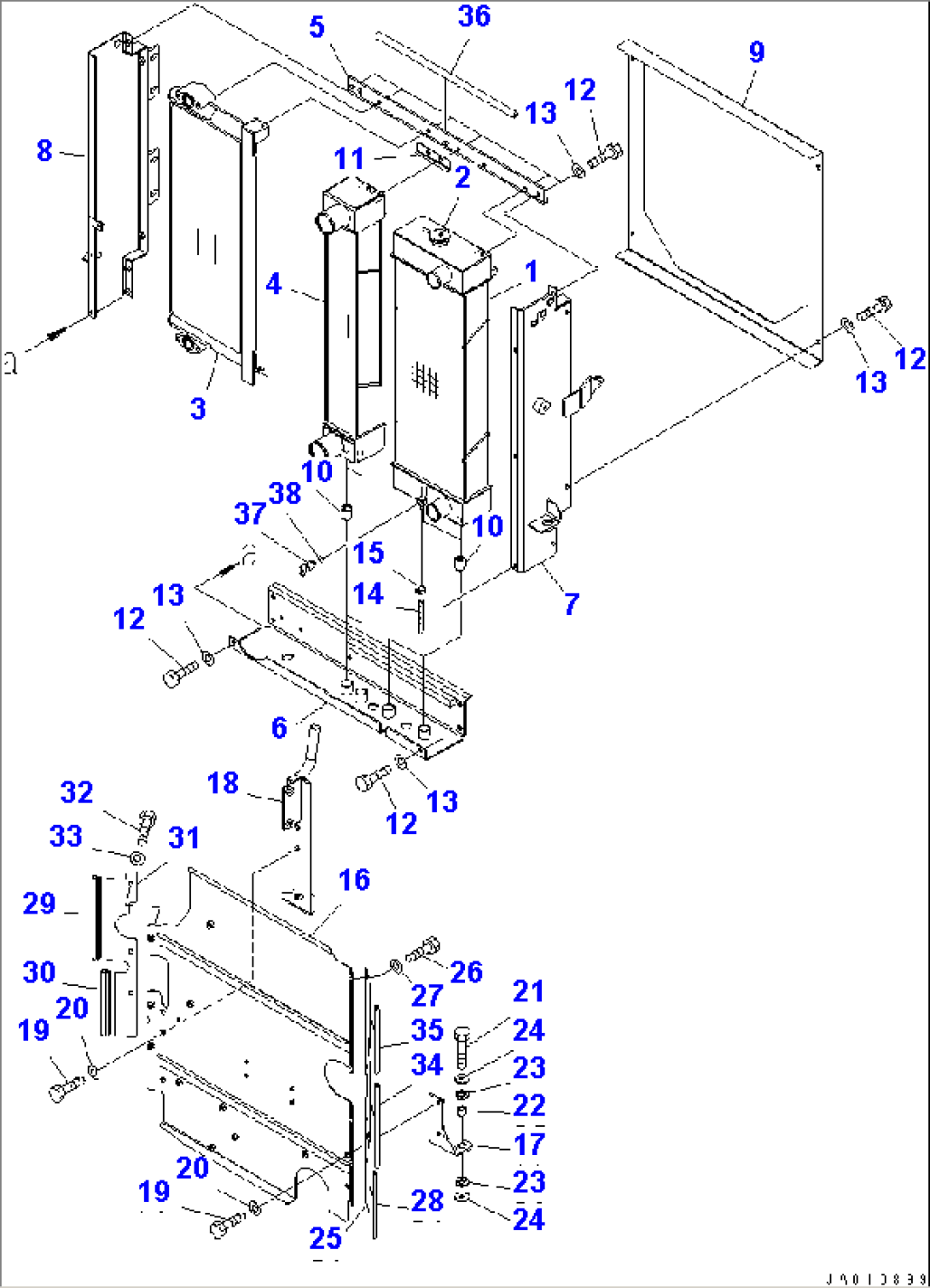

| Item | Part No. | Part Name | Qty | Serial No. |
| 416-03-31107 | RADIATOR ASS'Y | 75118- | ||
| 416-03-31106 | RADIATOR ASS'Y | 71062-75117 | ||
| (\2\416-03-31105) | RADIATOR ASS'Y | (71062-71062) | ||
| 416-03-31104 | RADIATOR ASS'Y | 65061-71061 | ||
| 1 | 416-03-32453 | RADIATOR | 71062- | |
| 1 | (\2\416-03-32452) | RADIATOR | (71062-71062) | |
| 1 | 416-03-32451 | RADIATOR | 65061-71061 | |
| 2 | 416-S14-2270 | CAP | 65061- | |
| 3 | 416-03-32462 | OIL COOLER | 71873- | |
| 3 | 416-03-32461 | OIL COOLER | 65061-71872 | |
| 4 | 416-03-32471 | AFTER COOLER | 65061- | |
| 5 | 416-03-31551 | PLATE | 65061- | |
| 6 | 416-03-31562 | FRAME | 65061- | |
| 6 | (\2\416-03-31561) | FRAME | (65061-71061) | |
| 7 | 416-03-31511 | FRAME,L.H. | 65061- | |
| 7 | (\2\416-03-31510) | FRAME,L.H. | (65061-71061) | |
| 8 | 416-03-31521 | FRAME,R.H. | 65061- | |
| 9 | 418-03-31452 | SHROUD | 65061- | |
| 10 | 418-03-31480 | CUSHION | 65061- | |
| 11 | 416-03-31570 | PLATE | 65061- | |
| 12 | 01010-81020 | BOLT | 65061- | |
| 13 | 01643-31032 | WASHER | 65061- | |
| 14 | 418-03-31570 | HOSE | 65061- | |
| 15 | 20Y-03-11330 | CLIP | 65061- | |
| 16 | 416-03-31165 | PLATE | 75460- | |
| 16 | \0\416-03-31164 | PLATE | 65061-75459 | |
| 17 | 416-03-31310 | BRACKET | 65061- | |
| 18 | 416-03-31322 | BRACKET | 65061- | |
| 19 | 01010-81020 | BOLT | 65061- | |
| 20 | 01643-31032 | WASHER | 65061- | |
| 21 | 01010-81245 | BOLT | 65061- | |
| 22 | 421-03-11530 | SPACER | 65061- | |
| 23 | 416-03-11260 | CUSHION | 65061- | |
| 24 | 419-43-17920 | WASHER | 65061- | |
| 25 | 416-03-31342 | PLATE | 65061- | |
| 26 | 01010-81020 | BOLT | 65061- | |
| 27 | 01643-31032 | WASHER | 65061- | |
| 28 | 23S-54-36560 | SEAL | 65061- | |
| 29 | 416-03-31380 | SEAL | 65061- | |
| 30 | 23S-54-36560 | SEAL | 65061- | |
| 31 | 416-03-31362 | PLATE | 65061- | |
| 32 | 01010-81020 | BOLT | 65061- | |
| 33 | 01643-31032 | WASHER | 65061- | |
| 34 | 416-03-31380 | SEAL | 65061- | |
| 35 | 23S-54-36560 | SEAL | 65061- | |
| 36 | 416-03-31470 | SHEET | 65061- | |
| 37 | 205-03-62660 | PLUG | 65061- | |
| 38 | 07000-11007 | O-RING | 65061- |
