| Item | Part No. | Part Name | Qty | Serial No. |

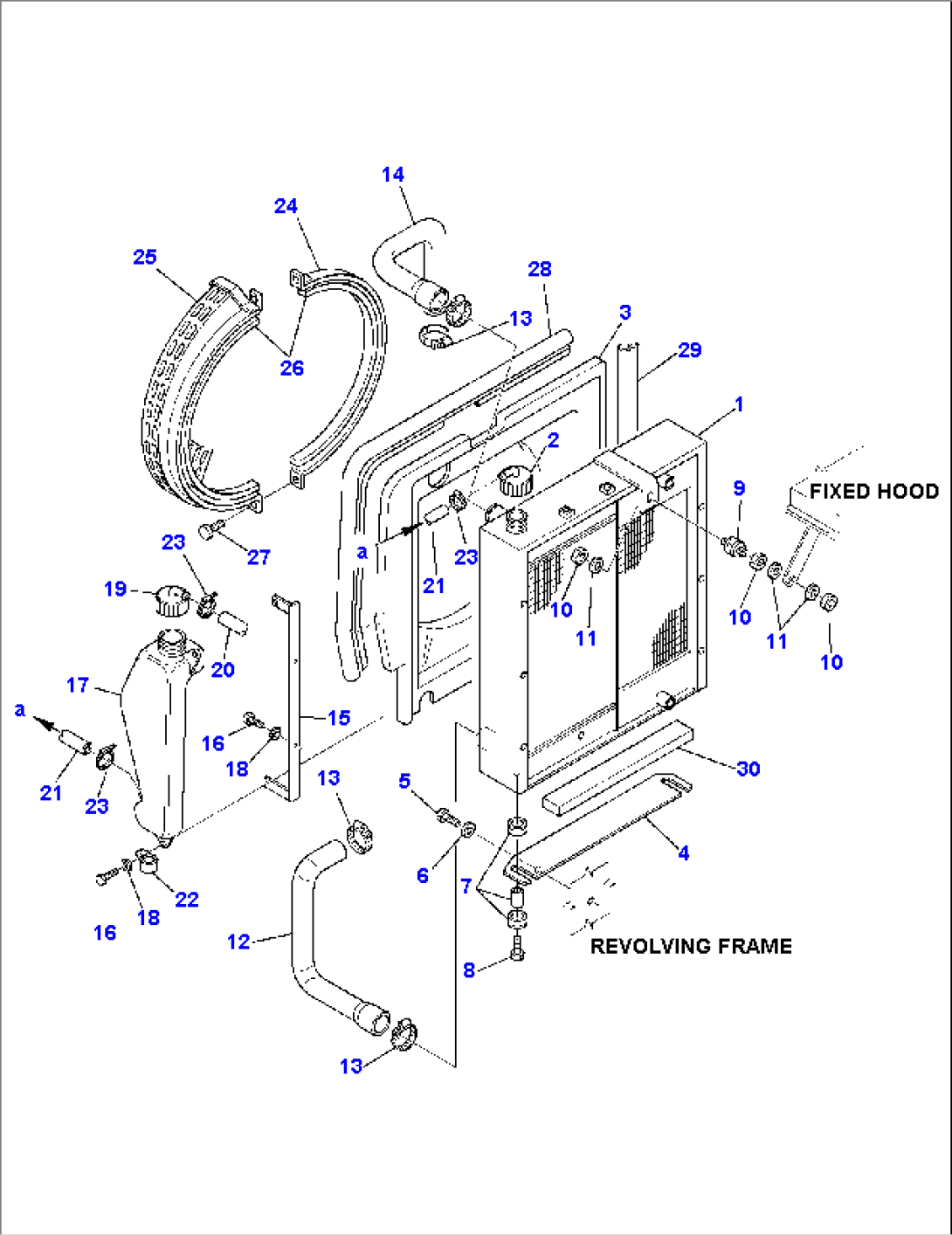

| \0 | 22E-03-11300 | RADIATOR, ASSY. | 22E5210500-22E5210998 | |
| 1 | 22E-03-11310 | RADIATOR | 22E5210500-22E5210998 | |
| 2 | 22E-03-11320 | PLUG | 22E5210500-22E5210998 | |
| 3 | 22E-03-11330 | CONVEYOR | 22E5210500-22E5210998 | |
| 4 | 22E-03-11150 | SUPPORT | 22E5210500-22E5210998 | |
| 5 | 01016-51240 | BOLT | 22E5210500-22E5210998 | |
| 6 | 01643-31232 | WASHER | 22E5210500-22E5210998 | |
| 7 | 21D-03-11120 | DAMPER | 22E5210500-22E5210998 | |
| 8 | 01010-51260 | BOLT | 22E5210500-22E5210998 | |
| 9 | 226-03-11550 | DAMPER | 22E5210500-22E5210998 | |
| 10 | 21D-09-21730 | NUT | 22E5210500-22E5210998 | |
| 11 | 01643-31032 | WASHER | 22E5210500-22E5210998 | |
| 12 | 22E-03-11160 | SLEEVE | 22E5210500-22E5210998 | |
| 13 | 21D-09-81450 | CLAMP | 22E5210500-22E5210998 | |
| 14 | 22E-03-11171 | SLEEVE | 22E5210500-22E5210998 | |
| 15 | 22E-03-11181 | SUPPORT | 22E5210500-22E5210998 | |
| 16 | 01010-50620 | BOLT | 22E5210500-22E5210998 | |
| 17 | 226-03-11271 | TANK | 22E5210500-22E5210998 | |
| 18 | 01643-30623 | WASHER | 22E5210500-22E5210998 | |
| 19 | 21D-03-11310 | PLUG | 22E5210500-22E5210998 | |
| 20 | 22E-03-11270 | HOSE | 22E5210500-22E5210998 | |
| 21 | 22E-03-11280 | HOSE | 22E5210500-22E5210998 | |
| 22 | 21D-09-81650 | COLLAR | 22E5210500-22E5210998 | |
| 23 | 21D-09-81990 | COLLAR | 22E5210500-22E5210998 | |
| 24 | 22E-03-11191 | COLLAR | 22E5210500-22E5210998 | |
| 25 | 22E-03-11211 | PROTECTION, R.H. | 22E5210500-22E5210998 | |
| 26 | 21D-03-11370 | GASKET | 22E5210500-22E5210998 | |
| 27 | 01435-01025 | BOLT | 22E5210500-22E5210998 | |
| 28 | 22E-03-11370 | GASKET | 22E5210500-22E5210998 | |
| 29 | 22E-03-11360 | GASKET | 22E5210500-22E5210998 | |
| 30 | 22E-03-11240 | GASKET | 22E5210500-22E5210998 |
