| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-03-22180 | TUBE | 51075- | |
| 2 | 07042-70108 | PLUG | 51075- | |
| 3 | 6162-14-4820 | HOSE | 51075- | |
| 4 | 6162-14-4750 | CLAMP | 51075- | |
| 5 | 07289-00120 | CLAMP | 51075- | |
| 6 | 6162-15-4340 | HOSE | 51075- | |
| 7 | 6162-14-4750 | CLAMP | 51075- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3 s/n 50001 up (ka spec.)
- Cooling system
- Radiator (after cooler piping)(#51075 )
Поиск по каталогу

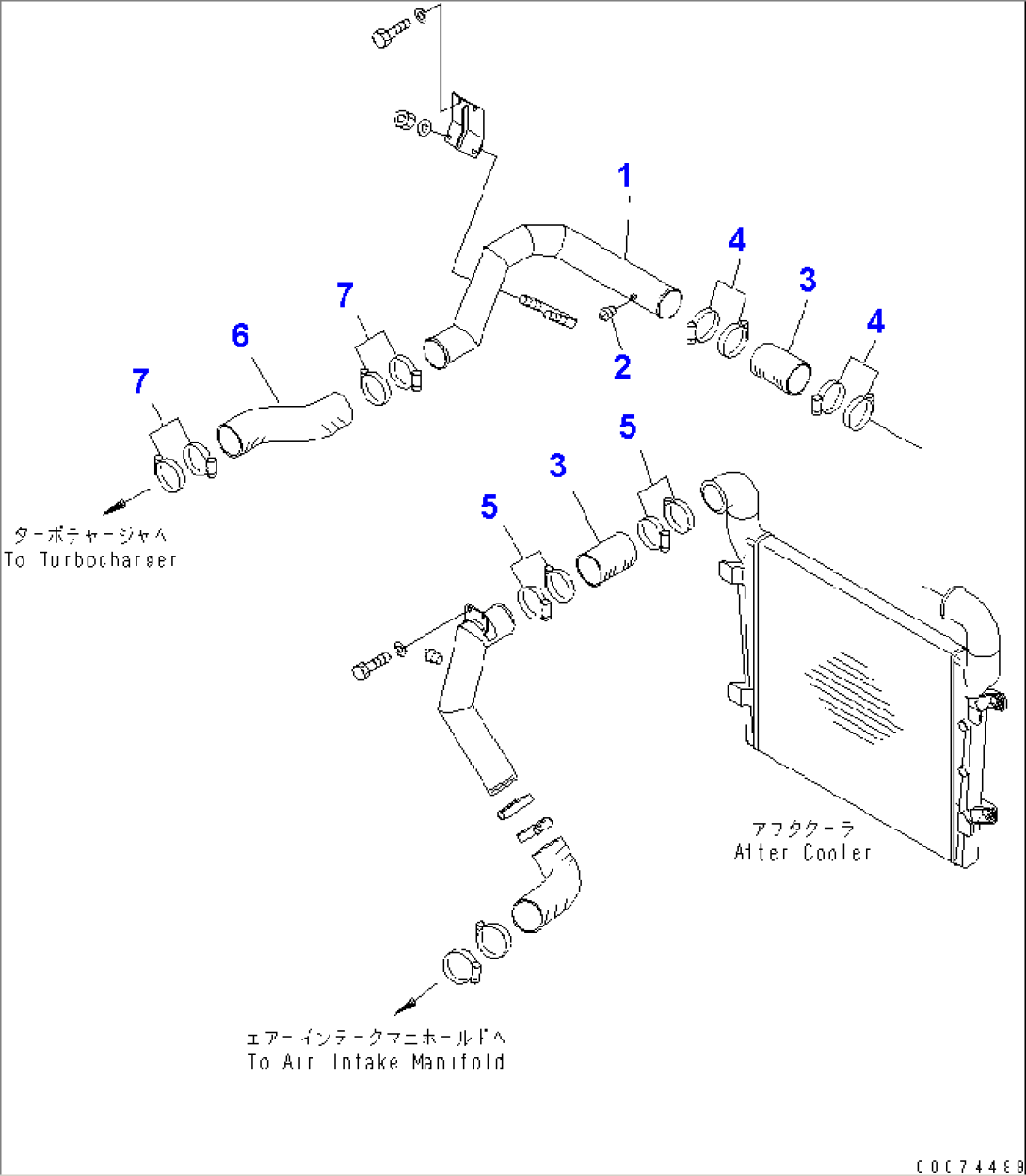

RADIATOR (AFTER COOLER PIPING)(#51075-)
