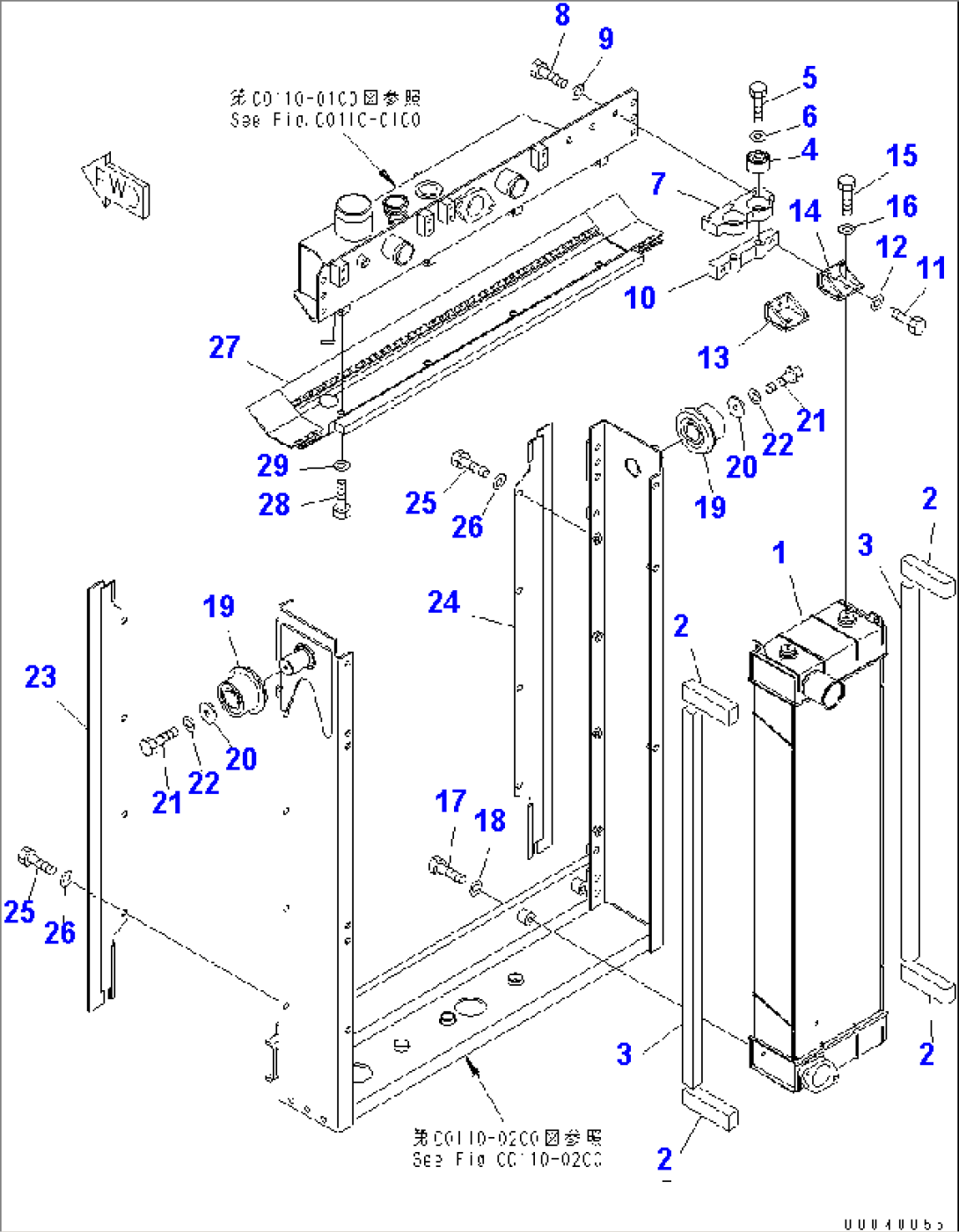

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-75321 | CORE,AFTER COOLER | 11001- | |
| 2 | 154-03-75181 | SEAL | 11001- | |
| 3 | 154-03-76121 | SEAL | 11001- | |
| 4 | 135-03-12110 | DAMPER | 11001- | |
| 5 | 01010-81460 | BOLT | 11001- | |
| 6 | 01643-31445 | WASHER | 11001- | |
| 7 | 154-03-75491 | BRACKET | 11001- | |
| 8 | 01010-81225 | BOLT | 11001- | |
| 9 | 01643-31232 | WASHER | 11001- | |
| 10 | 154-03-75511 | BRACKET | 11001- | |
| 11 | 01010-81225 | BOLT | 11001- | |
| 12 | 01643-31232 | WASHER | 11001- | |
| 13 | 154-03-75520 | BRACKET | 11001- | |
| 14 | 154-03-75550 | BRACKET | 11001- | |
| 15 | 01010-81025 | BOLT | 11001- | |
| 16 | 01643-31032 | WASHER | 11001- | |
| 17 | 01010-81045 | BOLT | 11001- | |
| 18 | 01643-31032 | WASHER | 11001- | |
| 19 | 17A-03-11281 | RUBBER | 11001- | |
| 20 | 565-43-14630 | SPACER | 11001- | |
| 21 | 01010-81225 | BOLT | 11001- | |
| 22 | 01643-31232 | WASHER | 11001- | |
| 23 | 154-03-75432 | SEAL | 11001- | |
| 24 | 154-03-75441 | SEAL | 11001- | |
| 25 | 01010-81225 | BOLT | 11001- | |
| 26 | 01643-31232 | WASHER | 11001- | |
| 27 | 154-03-75421 | SEAL | 11001- | |
| 28 | 01010-81225 | BOLT | 11001- | |
| 29 | 01643-31232 | WASHER | 11001- |
