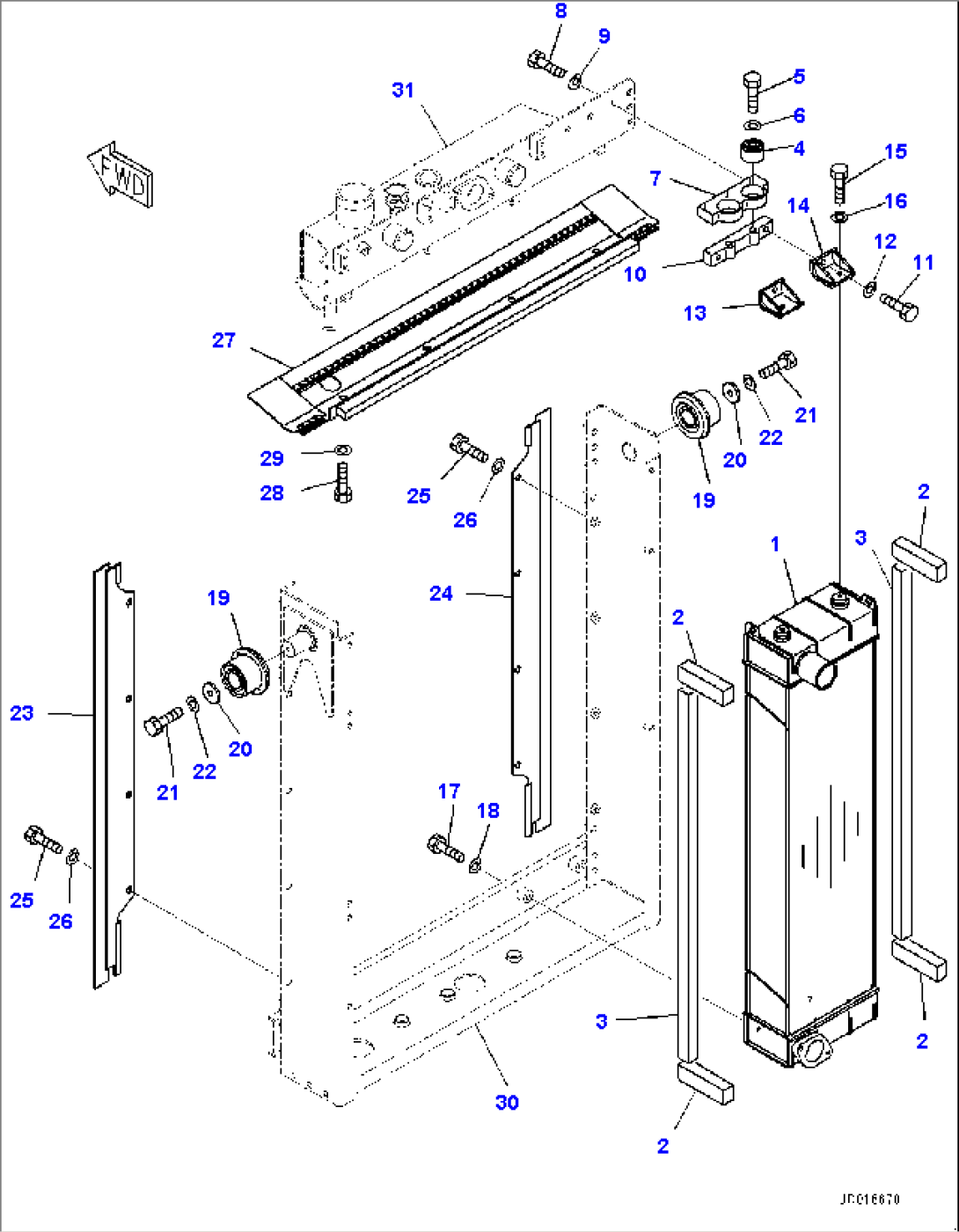

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-75321 | Core, After Cooler | 20003-20024 | |
| 2 | 154-03-75181 | Seal | 20003-@ | |
| 3 | 154-03-76121 | Seal | 20003-@ | |
| 4 | 135-03-12110 | Damper | 20003-@ | |
| 5 | 01010-81460 | Bolt | 20003-@ | |
| 6 | 01643-31445 | Washer, Flat | 20003-@ | |
| 7 | 154-03-75491 | Bracket | 20003-20024 | |
| 8 | 01010-81225 | Bolt | 20003-@ | |
| 9 | 01643-31232 | Washer | 20003-@ | |
| 10 | 154-03-75511 | Bracket | 20003-@ | |
| 11 | 01010-81225 | Bolt | 20003-@ | |
| 12 | 01643-31232 | Washer | 20003-@ | |
| 13 | 154-03-75520 | Bracket | 20003-20024 | |
| 14 | 154-03-75550 | Bracket | 20003-20024 | |
| 15 | 01010-81025 | Bolt | 20003-@ | |
| 16 | 01643-31032 | Washer | 20003-@ | |
| 17 | 01010-81045 | Bolt | 20003-@ | |
| 18 | 01643-31032 | Washer | 20003-@ | |
| 19 | 17A-03-11281 | Rubber | 20003-@ | |
| 20 | 565-43-14630 | Spacer | 20003-@ | |
| 21 | 01010-81225 | Bolt | 20003-@ | |
| 22 | 01643-31232 | Washer | 20003-@ | |
| 23 | 154-03-75432 | Seal | 20003-@ | |
| 24 | 154-03-75441 | Seal | 20003-@ | |
| 25 | 01010-81225 | Bolt | 20003-@ | |
| 26 | 01643-31232 | Washer | 20003-@ | |
| 27 | 154-03-75422 | Seal | 20003-@ | |
| 28 | 01010-81225 | Bolt | 20003-@ | |
| 29 | 01643-31232 | Washer | 20003-@ | |
| 30 | (154-03-75351) | Tank | - | |
| 31 | (154-03-75651) | Bracket | - |
