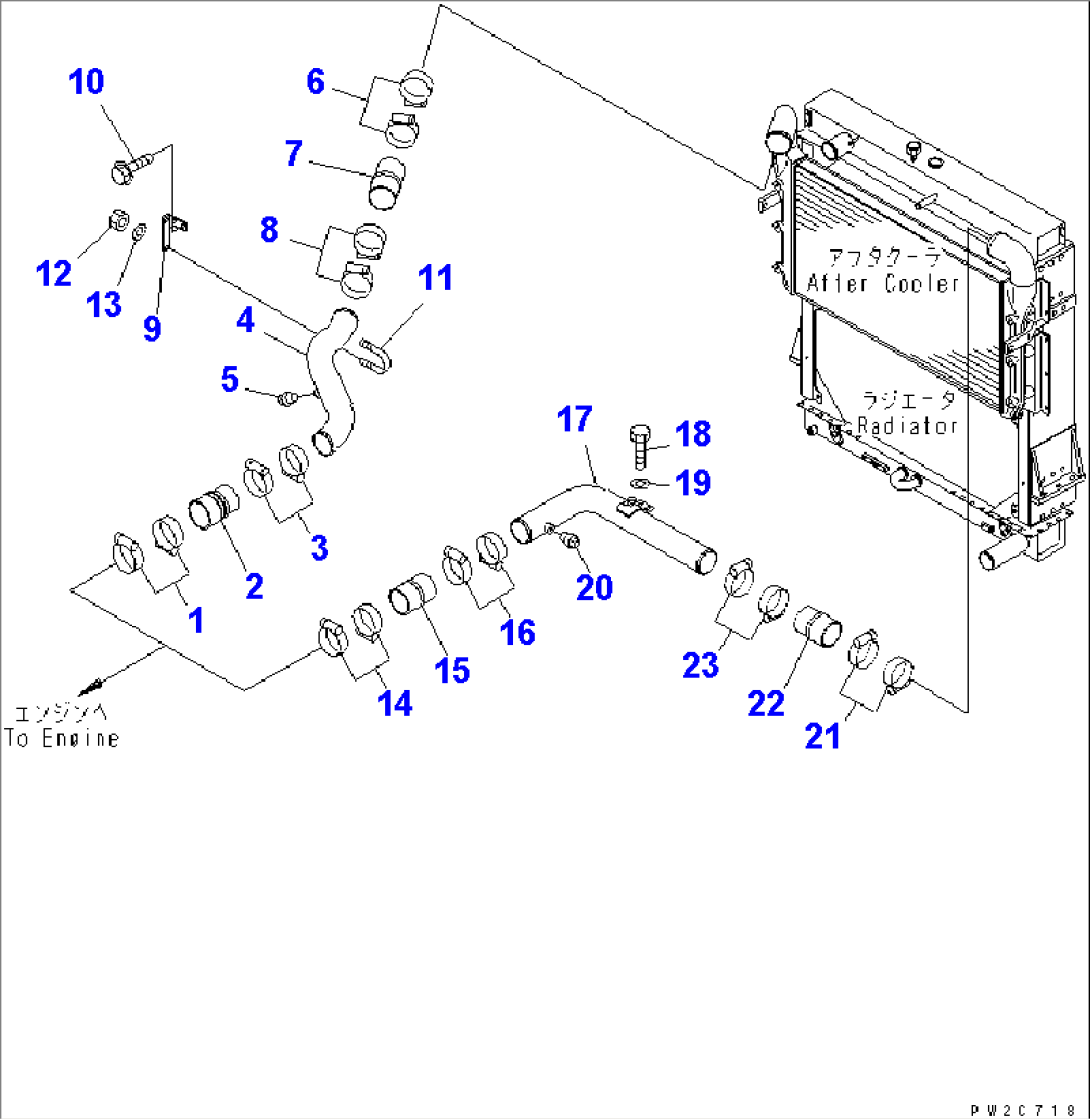

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6162-14-4750 | CLAMP | 52001- | |
| 2 | 6212-11-4420 | HOSE | 52001- | |
| 3 | 6212-11-4840 | CLAMP | 52001- | |
| 4 | 426-03-21380 | TUBE | 52001- | |
| 5 | 07042-20108 | PLUG | 52001- | |
| 6 | 6212-11-4840 | CLAMP | 52001- | |
| 7 | 6212-11-4410 | HOSE | 52001- | |
| 8 | 6212-11-4840 | CLAMP | 52001- | |
| 9 | 426-03-21441 | BRACKET | 52001- | |
| 10 | 01435-01225 | BOLT | 52001- | |
| 11 | 07283-31079 | CLIP | 52001- | |
| 12 | 01597-01211 | NUT | 52001- | |
| 13 | 01643-31232 | WASHER | 52001- | |
| 14 | 6212-11-4840 | CLAMP | 52001- | |
| 15 | 6212-11-4410 | HOSE | 52001- | |
| 16 | 6212-11-4840 | CLAMP | 52001- | |
| 17 | 426-03-21392 | TUBE | 52001- | |
| 18 | 01010-81230 | BOLT | 52001- | |
| 19 | 01643-31232 | WASHER | 52001- | |
| 20 | 07042-20108 | PLUG | 52001- | |
| 21 | 6212-11-4840 | CLAMP | 52001- | |
| 22 | 6212-11-4410 | HOSE | 52001- | |
| 23 | 6212-11-4840 | CLAMP | 52001- |
