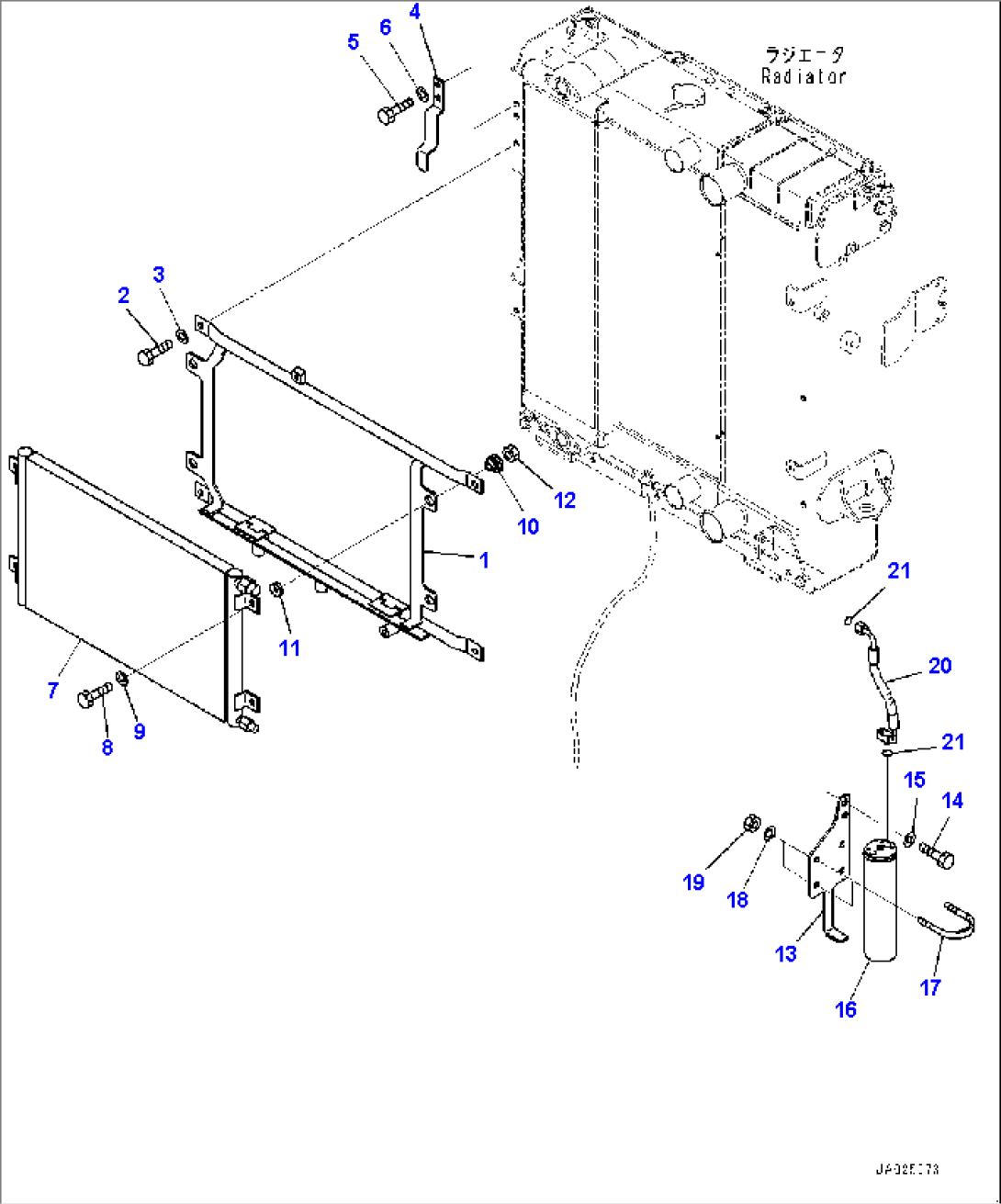

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-S62-4860 | Bracket | 80001- | |
| 2 | 01010-81025 | Bolt | 80001- | |
| 3 | 01643-31032 | Washer | 80001- | |
| 4 | 416-S62-4310 | Plate | 80001- | |
| 5 | 01010-81025 | Bolt | 80001- | |
| 6 | 01643-31032 | Washer | 80001- | |
| 7 | 56E-07-21132 | Condenser Assembly | 80001- | |
| 8 | 01010-80835 | Bolt | 80001- | |
| 9 | 01643-30823 | Washer | 80001- | |
| 10 | 425-03-37280 | Cushion | 80001- | |
| 11 | 425-03-37290 | Cushion | 80001- | |
| 12 | 01580-10806 | Nut | 80001- | |
| 13 | 416-S62-4120 | Plate | 80001- | |
| 14 | 01010-81025 | Bolt | 80001- | |
| 15 | 01643-31032 | Washer | 80001- | |
| 16 | 423-07-31571 | Receiver | 80001- | |
| 17 | 07283-36155 | Clip | 80001- | |
| 18 | 01643-31032 | Washer | 80001- | |
| 19 | 01597-01009 | Nut | 80001- | |
| 20 | 416-S62-4370 | Hose | 80001- | |
| 21 | AN51439-D0031 | O-ring | 80001- |
