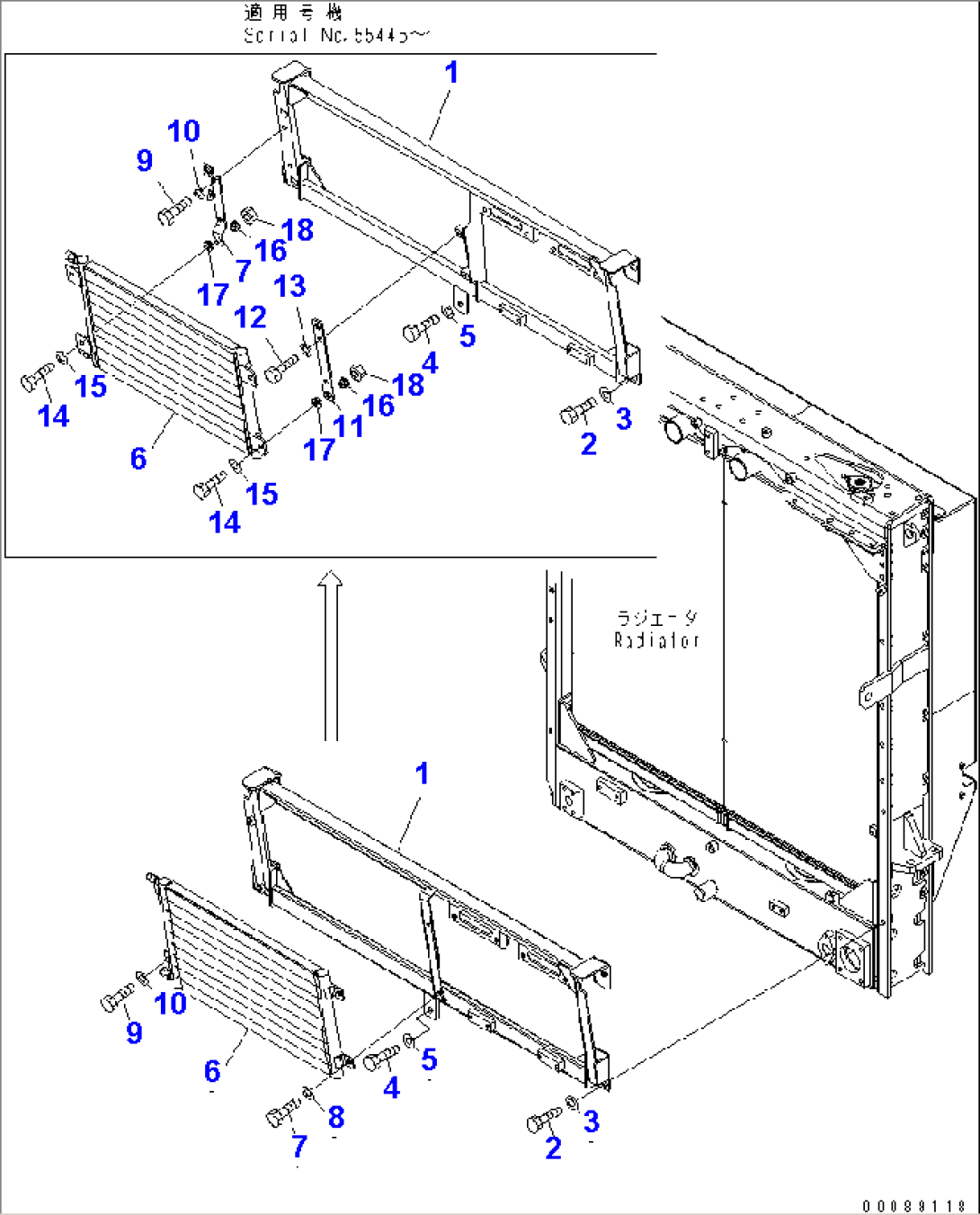

| Item | Part No. | Part Name | Qty | Serial No. |
| (425-03-31301) | RADIATOR ASS'Y | 55445- | ||
| (425-03-31300) | RADIATOR ASS'Y | 55001-55444 | ||
| (425-03-31501) | RADIATOR ASS'Y,(FOR BRAKE COOLING SYSTEM) | 55445- | ||
| (425-03-31500) | RADIATOR ASS'Y,(FOR BRAKE COOLING SYSTEM) | 55001-55444 | ||
| 1 | 425-03-37232 | BRACKET | 55445- | |
| 1 | 425-03-37231 | BRACKET | 55001-55444 | |
| 2 | 01010-81230 | BOLT | 55445- | |
| 2 | 01010-81030 | BOLT | 55001-55444 | |
| 3 | 01643-31032 | WASHER | 55001- | |
| 4 | 01010-81225 | BOLT | 55445- | |
| 4 | 01010-81025 | BOLT | 55001-55444 | |
| 5 | 01643-31032 | WASHER | 55001- | |
| 6 | 56E-07-21133 | CONDENSER ASS'Y | 55445- | |
| 6 | 56E-07-21132 | CONDENSER ASS'Y | 55001-55444 | |
| 7 | 425-03-37260 | BRACKET | 55445- | |
| 7 | 01010-80820 | BOLT | 55001-55444 | |
| 8 | 01643-30823 | WASHER | 55001-55444 | |
| 9 | 01010-81025 | BOLT | 55445- | |
| 9 | 01010-80816 | BOLT | 55001-55444 | |
| 10 | 01643-30823 | WASHER | 55001- | |
| 11 | 425-03-37270 | PLATE | 55445- | |
| 12 | 01010-81025 | BOLT | 55445- | |
| 13 | 01643-31032 | WASHER | 55445- | |
| 14 | 01010-80840 | BOLT | 55445- | |
| 15 | 01643-30823 | WASHER | 55445- | |
| 16 | 425-03-37280 | CUSHION | 55445- | |
| 17 | 425-03-37290 | CUSHION | 55445- | |
| 18 | 01580-10806 | NUT | 55445- |
