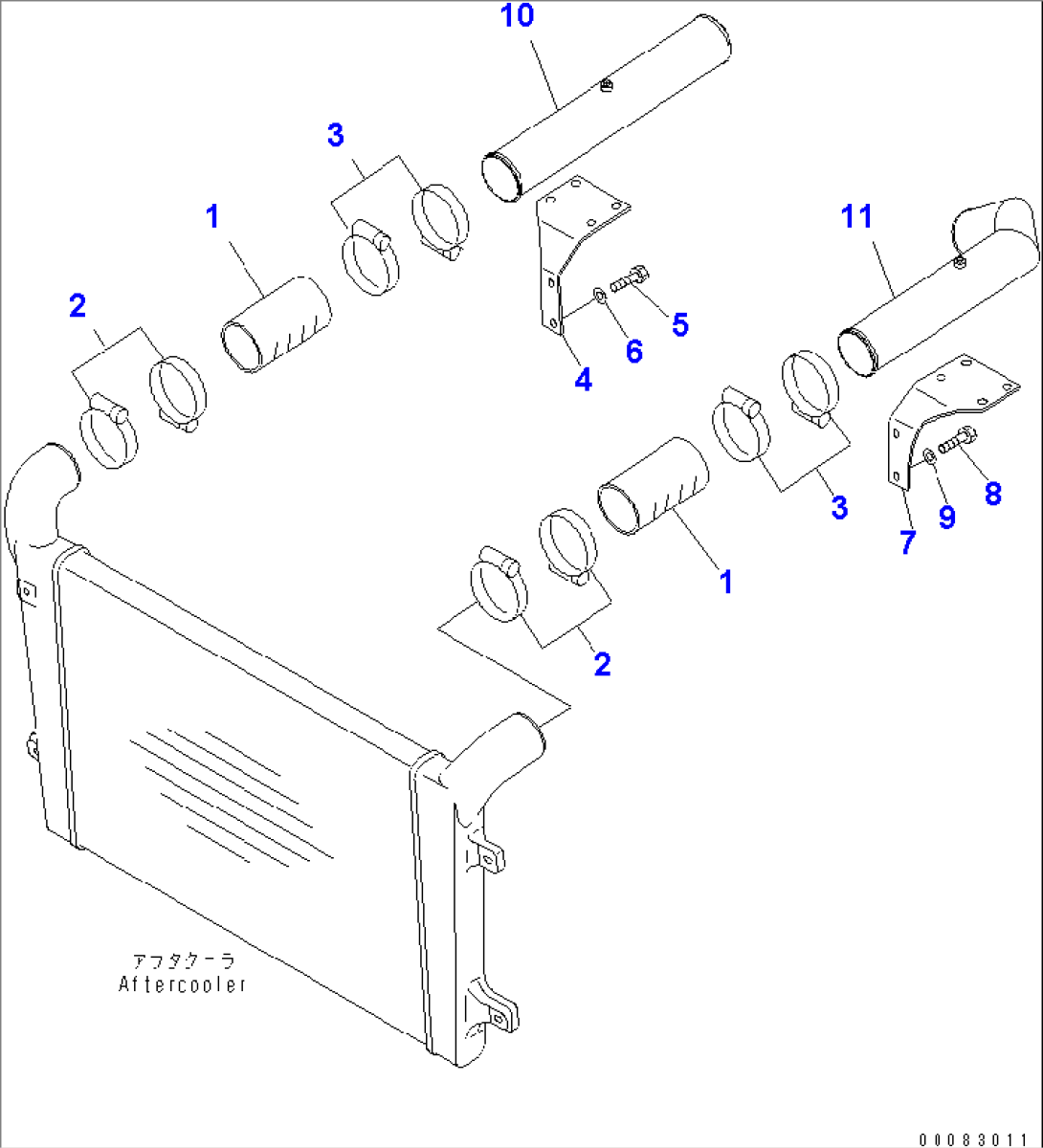

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-02-6E141 | HOSE | A10001- | |
| 2 | 07299-00105 | CLAMP | A10001- | |
| 3 | 07299-00105 | CLAMP | A10001- | |
| 4 | 56B-02-12231 | BRACKET | A10001- | |
| 5 | 01010-81030 | BOLT | A10001- | |
| 6 | 01643-31032 | WASHER | A10001- | |
| 7 | 56B-02-12241 | BRACKET | A10001- | |
| 8 | 01010-81030 | BOLT | A10001- | |
| 9 | 01643-31032 | WASHER | A10001- | |
| 10 | TUBE,(SEE FIG. J3410-01A0) | A10001- | ||
| 11 | TUBE,(SEE FIG. J3410-01A0) | A10001- |
