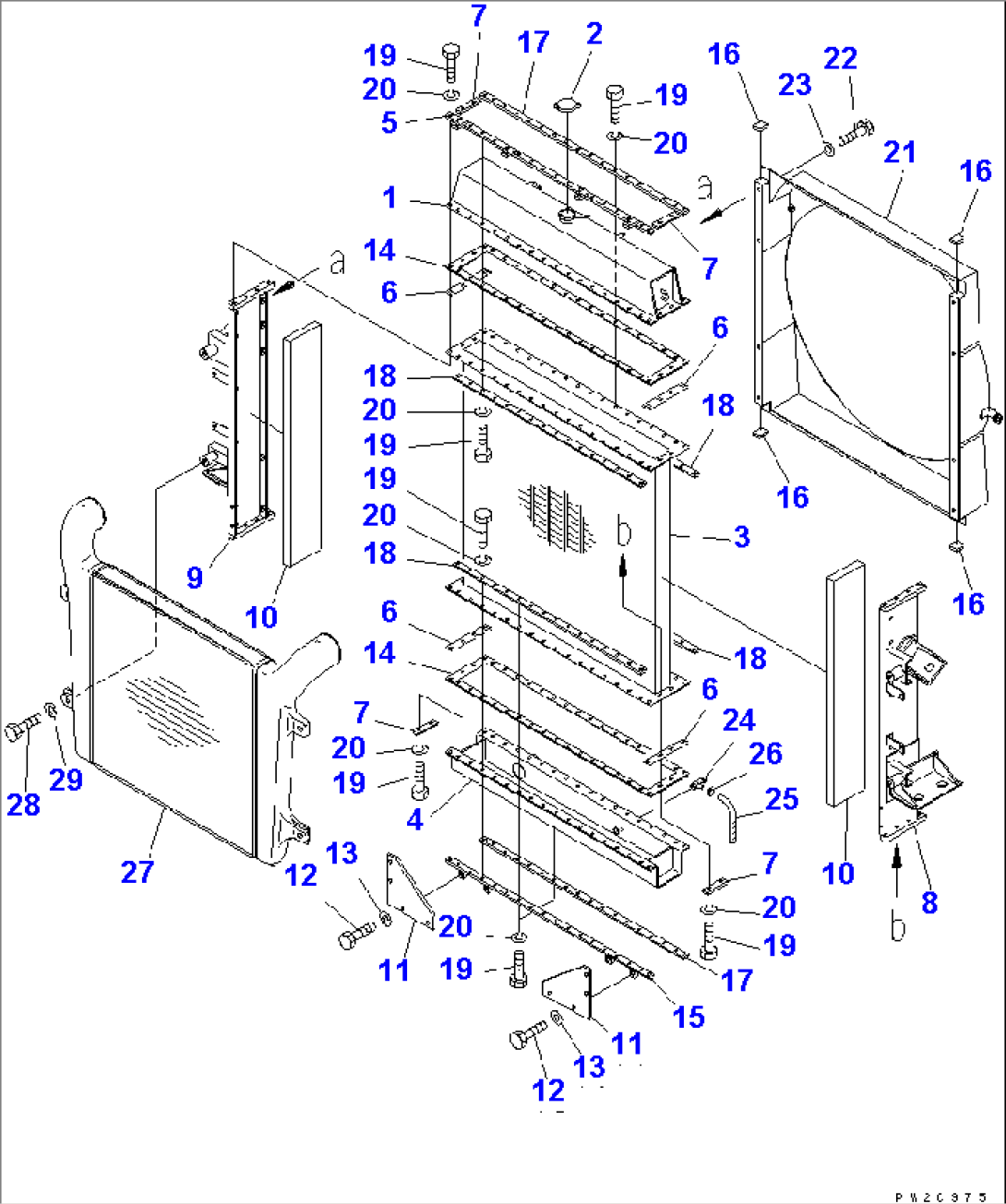

| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-03-11102 | RADIATOR ASS'Y | 1274- | ||
| 56D-03-11101 | RADIATOR ASS'Y | 1001-1273 | ||
| 56D-03-11202 | RADIATOR ASS'Y | 1274- | ||
| 56D-03-11201 | RADIATOR ASS'Y | 1001-1273 | ||
| 1 | 56D-03-11141 | TANK,UPPER | 1274- | |
| 1 | 56D-03-11140 | TANK,UPPER | 1001-1273 | |
| 2 | 23W-03-21260 | CAP | 1001- | |
| 3 | 56D-03-11130 | CORE | 1001- | |
| 4 | 56D-03-11150 | TANK,LOWER | 1001- | |
| 5 | 56D-03-11210 | PLATE | 1001- | |
| 6 | 56D-03-11240 | SHIM, 0.6MM | 1001- | |
| 7 | 56D-03-11230 | PLATE | 1001- | |
| 8 | 56D-03-11160 | SUPPORT | 1001- | |
| 9 | 56D-03-11170 | SUPPORT | 1001- | |
| 10 | 56D-03-11271 | SEAT | 1274- | |
| 10 | 56D-03-11270 | SEAT | 1001-1273 | |
| 11 | 56D-03-11260 | PLATE | 1001- | |
| 12 | 01010-81035 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 56D-03-11250 | GASKET | 1001- | |
| 15 | 23D-03-11220 | BAR | 1001- | |
| 16 | 56D-03-11280 | SEAT | 1001- | |
| 17 | 56D-03-11180 | PLATE | 1001- | |
| 18 | 56D-03-11190 | PLATE | 1001- | |
| 19 | 01010-81035 | BOLT | 1001- | |
| 20 | 01602-21030 | WASHER,SPRING | 1001- | |
| 21 | 56D-03-11121 | SHROUD | 1001- | |
| 22 | 01010-81020 | BOLT | 1001- | |
| 23 | 01643-31032 | WASHER | 1001- | |
| 24 | 195-03-13241 | VALVE | 1001- | |
| 25 | 07270-01007 | TUBE | 1001- | |
| 26 | 07281-00167 | CLAMP | 1001- | |
| 27 | 6156-61-5200 | AFTERCOOLER ASS'Y | 1001- | |
| 28 | 01010-81040 | BOLT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- |
