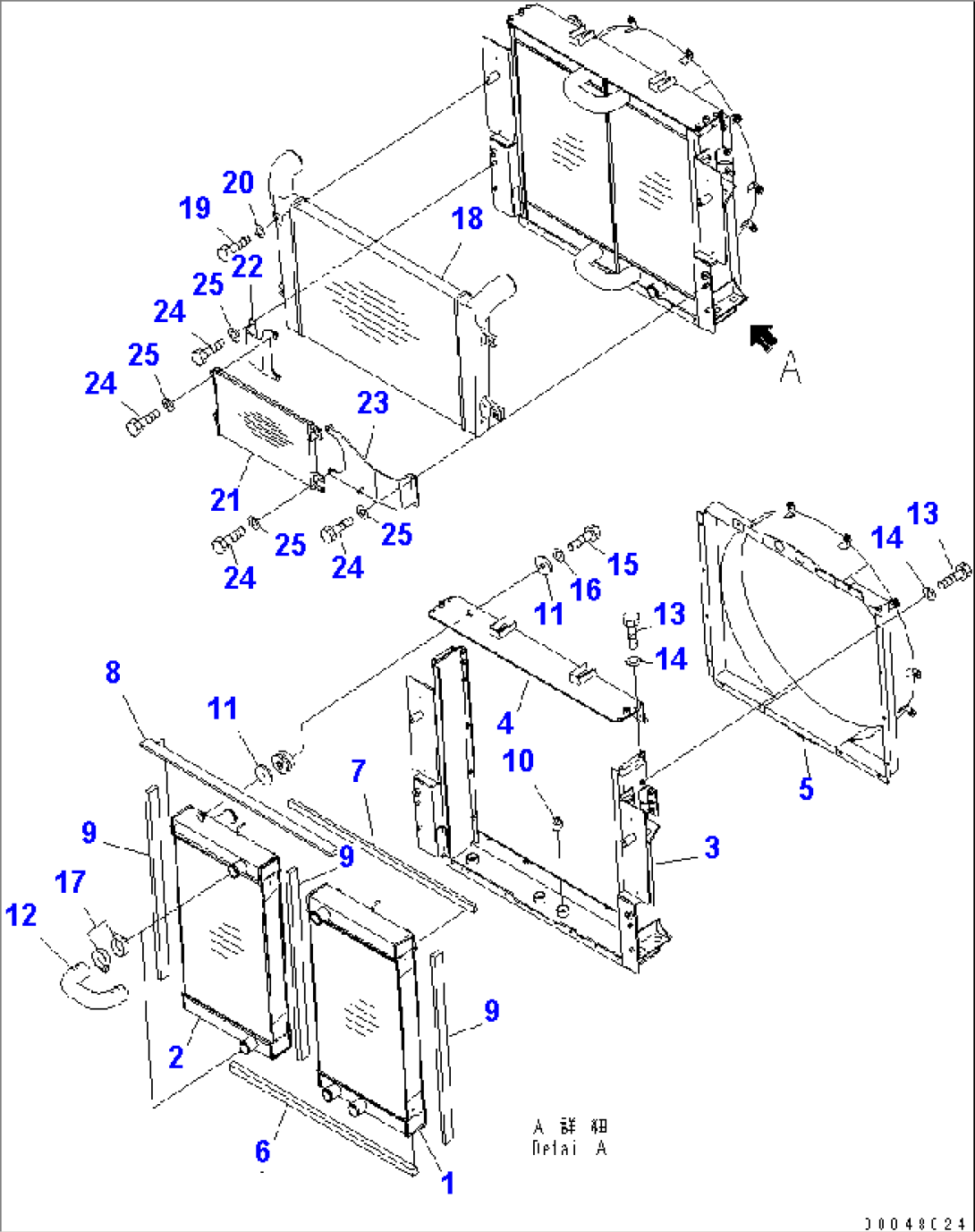

| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-03-21102 | RADIATOR ASS'Y | 2150-2461 | ||
| 56B-03-21101 | RADIATOR ASS'Y | 2001-2149 | ||
| 56B-03-21202 | RADIATOR ASS'Y | 2150-2461 | ||
| 56B-03-21201 | RADIATOR ASS'Y | 2001-2149 | ||
| 1 | 56B-03-21210 | CORE | 2150-2461 | |
| 2 | 56B-03-21220 | CORE | 2150-2461 | |
| 3 | 56B-03-21230 | FRAME | 2001-2461 | |
| 4 | 56B-03-21240 | BRACKET | 2001-2461 | |
| 5 | 56B-03-21260 | SHROUD | 2001-2461 | |
| 6 | 56B-03-21310 | PACKING | 2001-2461 | |
| 7 | 56B-03-21320 | PACKING | 2001-2461 | |
| 8 | 56B-03-21330 | PACKING | 2001-2461 | |
| 9 | 56B-03-21340 | PACKING | 2001-2461 | |
| 10 | 23C-03-51751 | CUSHION | 2001-2461 | |
| 11 | 207-03-75590 | PLATE | 2001-2461 | |
| 12 | 56D-03-21250 | HOSE | 2001-2461 | |
| 13 | 01010-81025 | BOLT | 2001-2461 | |
| 14 | 01643-31032 | WASHER | 2001-2461 | |
| 15 | 01010-81050 | BOLT | 2001-2461 | |
| 16 | 01643-31032 | WASHER | 2001-2461 | |
| 17 | 07299-00070 | CLAMP | 2001-2461 | |
| 18 | 6212-62-4100 | AFTERCOOLER ASS'Y | 2001-2461 | |
| 19 | 01010-81245 | BOLT | 2001-2461 | |
| 20 | 01643-31232 | WASHER | 2001-2461 | |
| 21 | 56D-07-21100 | CONDENSER ASS'Y | 2001-@ | |
| 22 | 56B-07-22861 | BRACKET | 2001-@ | |
| 23 | 56B-07-22871 | BRACKET | 2001-@ | |
| 24 | 01010-80820 | BOLT | 2001-@ | |
| 25 | 01643-30823 | WASHER | 2001-@ |
