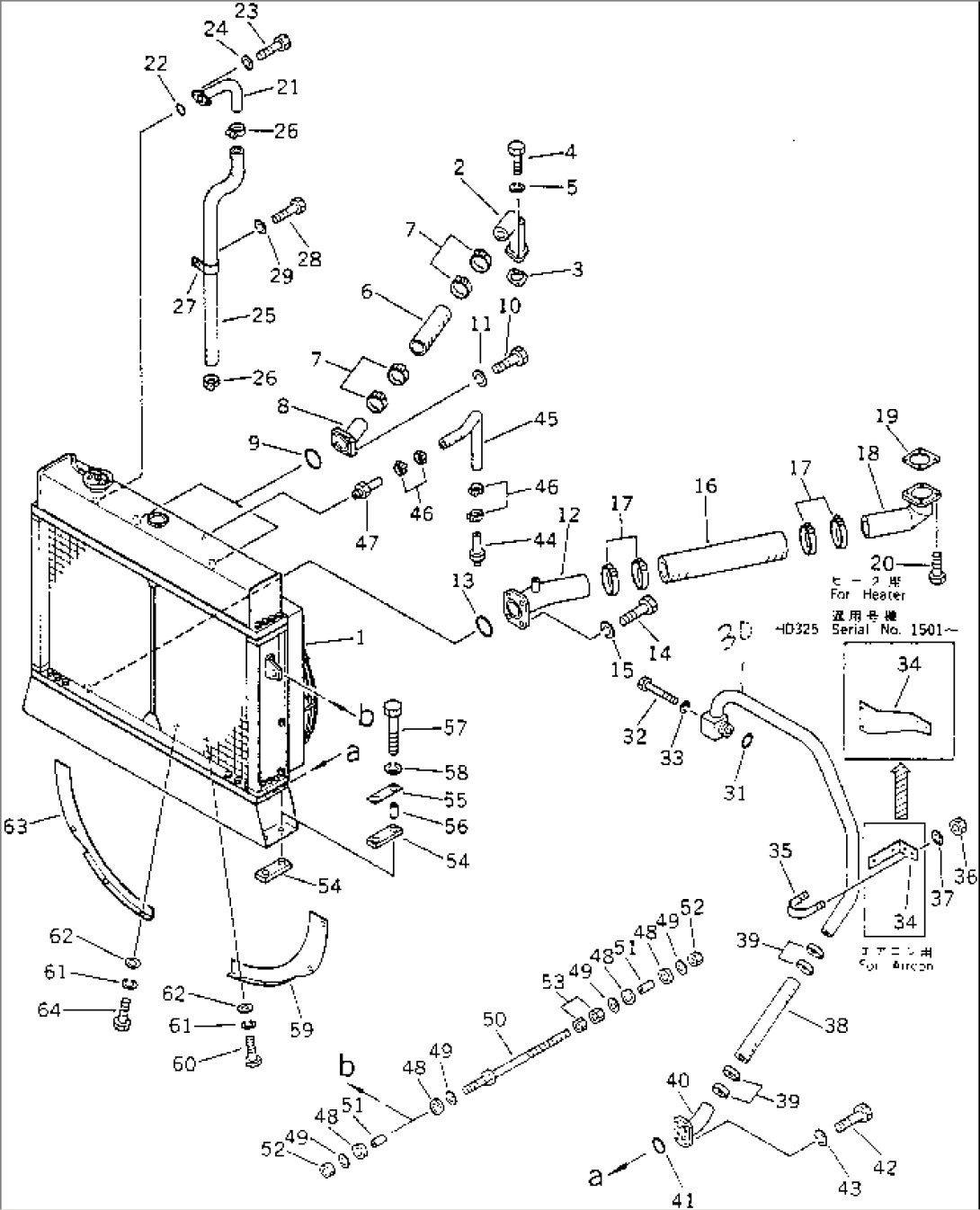

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (566-03-41001) | RADIATOR ASS'Y | 1501- | |
| 2 | 566-03-42111 | TUBE | 1501- | |
| 3 | 566-03-42120 | GASKET | 1501- | |
| 4 | 02010-20625 | BOLT | 1501- | |
| 5 | 01602-21030 | WASHER,SPRING | 1501- | |
| 6 | 07260-25818 | HOSE | 1501- | |
| 7 | 07281-10809 | CLAMP | 1501- | |
| 8 | 566-03-42280 | TUBE | 1501- | |
| 9 | 07000-22075 | O-RING | 1501- | |
| 10 | 01010-51235 | BOLT | 1501- | |
| 11 | 01602-21236 | WASHER,SPRING | 1501- | |
| 12 | 566-03-42140 | TUBE | 1501- | |
| 13 | 07000-22085 | O-RING | 1501- | |
| 14 | 01010-51440 | BOLT | 1501- | |
| 15 | 01602-21442 | WASHER,SPRING | 1501- | |
| 16 | 07260-28740 | HOSE | 1501- | |
| 17 | 566-09-15260 | CLAMP | 1501- | |
| 18 | 566-03-42160 | TUBE | 1501- | |
| 19 | 566-03-42170 | GASKET | 1501- | |
| 20 | 02010-20625 | BOLT | 1501- | |
| 21 | 566-03-42180 | TUBE | 1501- | |
| 22 | 07000-03028 | O-RING | 1501- | |
| 23 | 01010-51030 | BOLT | 1501- | |
| 24 | 01602-21030 | WASHER,SPRING | 1501- | |
| 25 | 07260-22690 | HOSE | 1501- | |
| 26 | 07281-10489 | CLAMP | 1501- | |
| 27 | 566-03-12620 | CLAMP | 1501- | |
| 28 | 01010-51025 | BOLT | 1501- | |
| 29 | 01602-21030 | WASHER,SPRING | 1501- | |
| 30 | 566-03-42210 | TUBE | 1501- | |
| 31 | 02893-05043 | O-RING | 1501- | |
| 32 | 02010-20583 | BOLT | 1515- | |
| 32 | 02010-20683 | BOLT | 1501-1514 | |
| 33 | 01602-20825 | WASHER | 1501- | |
| 34 | 566-03-42221 | BRACKET,(FOR AIR CONDITIONER) | 1501- | |
| 34 | 566-03-42360 | BRACKET,(FOR HEATER) | 1501- | |
| 35 | 07283-24949 | CLIP | 1501- | |
| 36 | 01599-01011 | NUT | 1501- | |
| 37 | 01643-31032 | WASHER | 1501- | |
| 38 | 07260-24725 | HOSE | 1501- | |
| 39 | 07281-10709 | CLAMP | 1501- | |
| 40 | 566-03-42240 | TUBE | 1501- | |
| 41 | 07000-02060 | O-RING | 1501- | |
| 42 | 01010-51240 | BOLT | 1501- | |
| 43 | 01602-21236 | WASHER | 1501- | |
| 44 | 566-03-42250 | NIPPLE | 1501- | |
| 45 | 07261-20911 | HOSE | 1515- | |
| 45 | 07260-20911 | HOSE | 1501-1514 | |
| 46 | 07281-10197 | CLAMP | 1515- | |
| 46 | 07280-21920 | CLAMP | 1501-1514 | |
| 47 | 195-03-11530 | NIPPLE | 1501- | |
| 48 | 285-03-11160 | CUSHION | 1501- | |
| 49 | 285-03-11170 | PLATE | 1501- | |
| 50 | 566-03-42260 | ROD | 1501- | |
| 51 | 566-03-42270 | SPACER | 1501- | |
| 52 | 01599-01617 | NUT | 1501- | |
| 53 | 01581-01613 | NUT | 1501- | |
| 54 | 285-03-11120 | CUSHION | 1501- | |
| 55 | 285-03-11140 | PLATE | 1501- | |
| 56 | 566-03-42270 | SPACER | 1501- | |
| 57 | 01010-51680 | BOLT | 1501- | |
| 58 | 01602-21648 | WASHER,SPRING | 1501- | |
| 59 | 566-03-42340 | COVER | 1501- | |
| 60 | 01010-51020 | BOLT | 1501- | |
| 61 | 01602-21030 | WASHER,SPRING | 1501- | |
| 62 | 01643-31032 | WASHER | 1501- | |
| 63 | 566-03-42350 | COVER | 1501- | |
| 64 | 01010-51025 | BOLT | 1515- | |
| 64 | 01010-51020 | BOLT | 1501-1514 |
