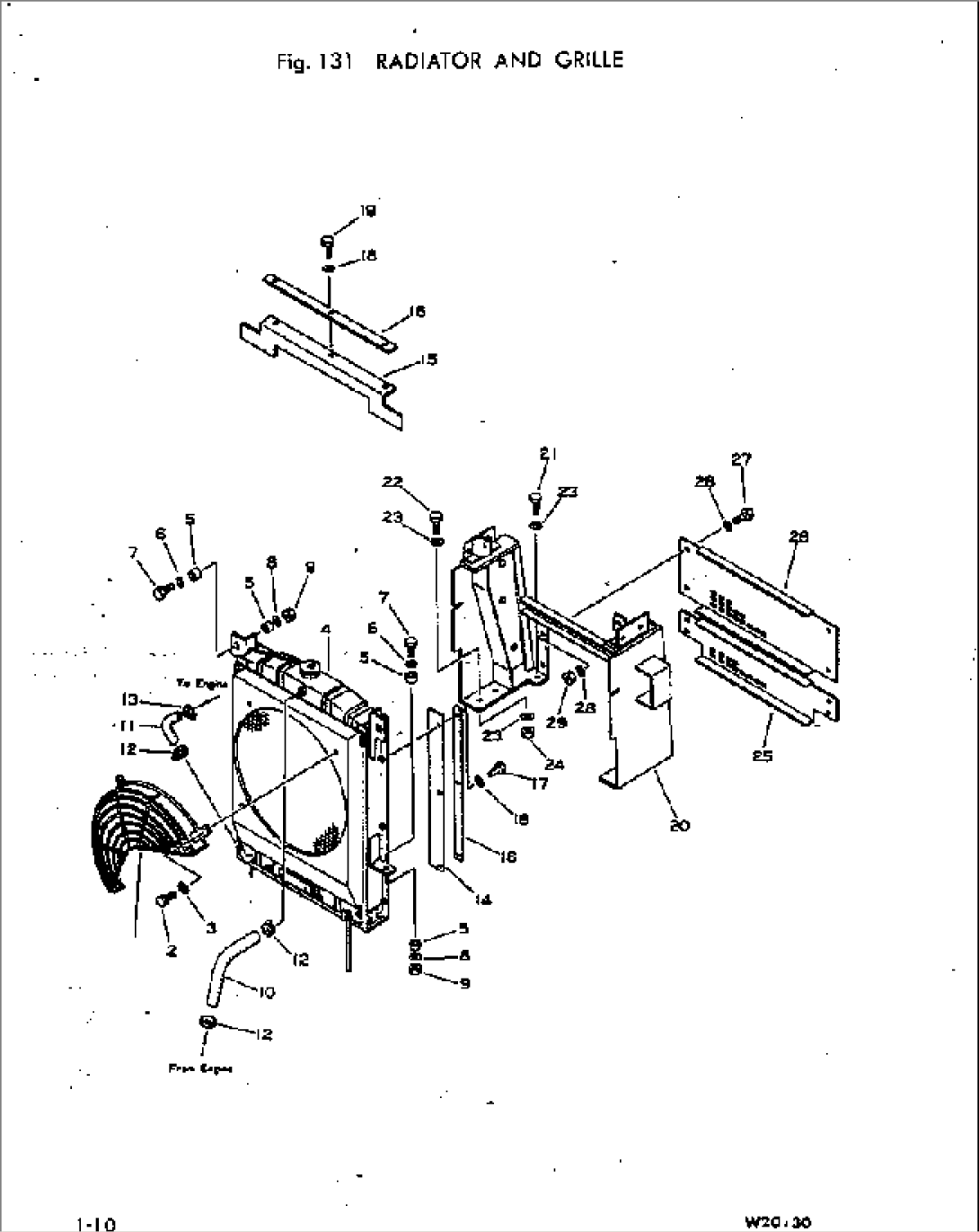

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 385-10132671 | GUARD,FINGER | 10001- | |
| 2 | 01010-51020 | BOLT | 10001- | |
| 3 | 01643-31032 | WASHER | 10001- | |
| 4 | 385-10109451 | RADIATOR ASS'Y | 10001- | |
| 5 | 385-10230091 | CUSHION | 10001- | |
| 6 | 385-10103991 | WASHER | 10029- | |
| 6 | \0\381-932278-1 | WASHER | 10001-10028 | |
| 7 | 01010-51270 | BOLT | 10001- | |
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 385-10163711 | NUT | 10001- | |
| 10 | 385-10109492 | HOSE,INLET | 10023- | |
| 10 | \0\385-10109491 | HOSE,INLET | 10001-10022 | |
| 11 | 385-10109502 | HOSE,OUTLET | 10023- | |
| 11 | \0\385-10109501 | HOSE,OUTLET | 10001-10022 | |
| 12 | 382-279024-1 | CLAMP,HOSE | 10001- | |
| 13 | 382-279027-1 | CLAMP,HOSE | 10001- | |
| 14 | 385-10129661 | PLATE,RUBBER | 10001- | |
| 15 | 385-10286381 | PLATE,RUBBER | 10001- | |
| 16 | 385-10129681 | PLATE | 10001- | |
| 17 | 01010-50825 | BOLT | 10001- | |
| 18 | 01643-30823 | WASHER | 10001- | |
| 19 | 01010-50816 | BOLT | 10001- | |
| 20 | 385-10266711 | GRILLE (WELDED) | 10001- | |
| 21 | 01010-51230 | BOLT | 10001- | |
| 22 | 01010-51235 | BOLT | 10001- | |
| 23 | 01643-31232 | WASHER | 10001- | |
| 24 | 01580-11210 | NUT | 10001- | |
| 25 | 385-10266841 | PANEL,LOW | 10001- | |
| 26 | 385-10266851 | PANEL,UPPER | 10001- | |
| 27 | 01010-51225 | BOLT | 10001- | |
| 28 | 01643-31232 | WASHER | 10001- | |
| 29 | 01580-11210 | NUT | 10001- |
